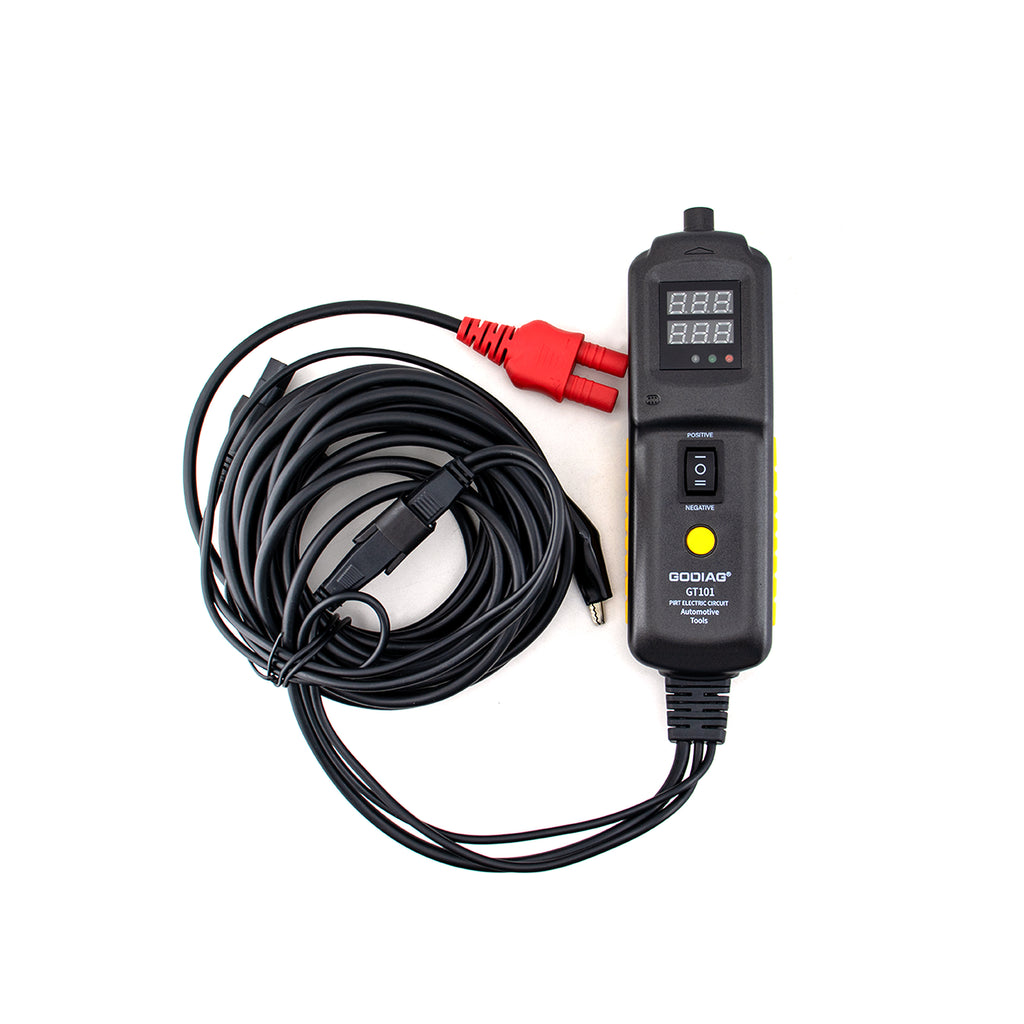

GODIAG GT101 PIRT Automotive Power Circuit Probe – AD179
The GODIAG GT101 PIRT is a multifunction automotive electrical testing tool designed to help diagnose circuits, activate components, test relays, and inspect or clean fuel injectors.
Powered directly from a vehicle battery or suitable external power supply, the GT101 allows voltage and current to be checked while working around the vehicle. Positive or negative power can also be supplied directly through the probe to test components such as lights, motors, horns, cooling fans and relays.
Its long connection cable, digital display, built-in work light and audible indicators make it suitable for electrical fault-finding across a wide range of vehicles and equipment.
Product Features
- Detects positive, negative and open circuits
- Assists with locating open circuits and short circuits
- Measures DC voltage and current
- Supplies positive or negative power through the probe
- Activates supported electrical components for testing
- Tests vehicle relays using the supplied adaptor and leads
- Tests fuel injector activation and current draw
- Supports manual fuel injector cleaning
- Checks grounding points and circuit polarity
- Integrated digital voltmeter and ammeter
- Built-in flashlight for low-light working areas
- Audible operating indicators
- Automatic circuit protection when output exceeds approximately 20A
- Long cable provides access around larger vehicles
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: AD179
- Model: GT101 PIRT
- Product Type: Automotive Power Circuit Probe
- Supported Voltage: DC 6–40V vehicle electrical systems
- Power Consumption: Approximately 0.5W
- Cable Length: Approximately 6.2 metres
- Operating Temperature: -5°C to 50°C
- Storage Temperature: -5°C to 60°C
- Housing Material: ABS
Applications
Suitable for testing and diagnosing components including:
- Vehicle wiring and power circuits
- Fuse boxes
- Lighting systems
- Window and door motors
- Cooling fans
- Horns
- Switches
- Relays
- Fuel injectors
- Sensors
- ECU power supply circuits
- Ground connections
Vehicle Compatibility
Suitable for DC 6–40V electrical systems used in selected:
- Passenger vehicles
- Motorcycles
- Light and heavy commercial vehicles
- Buses
- Construction equipment
- Agricultural machinery
- Boats
- Mining equipment
Always confirm the operating voltage and circuit requirements before supplying power to a component.

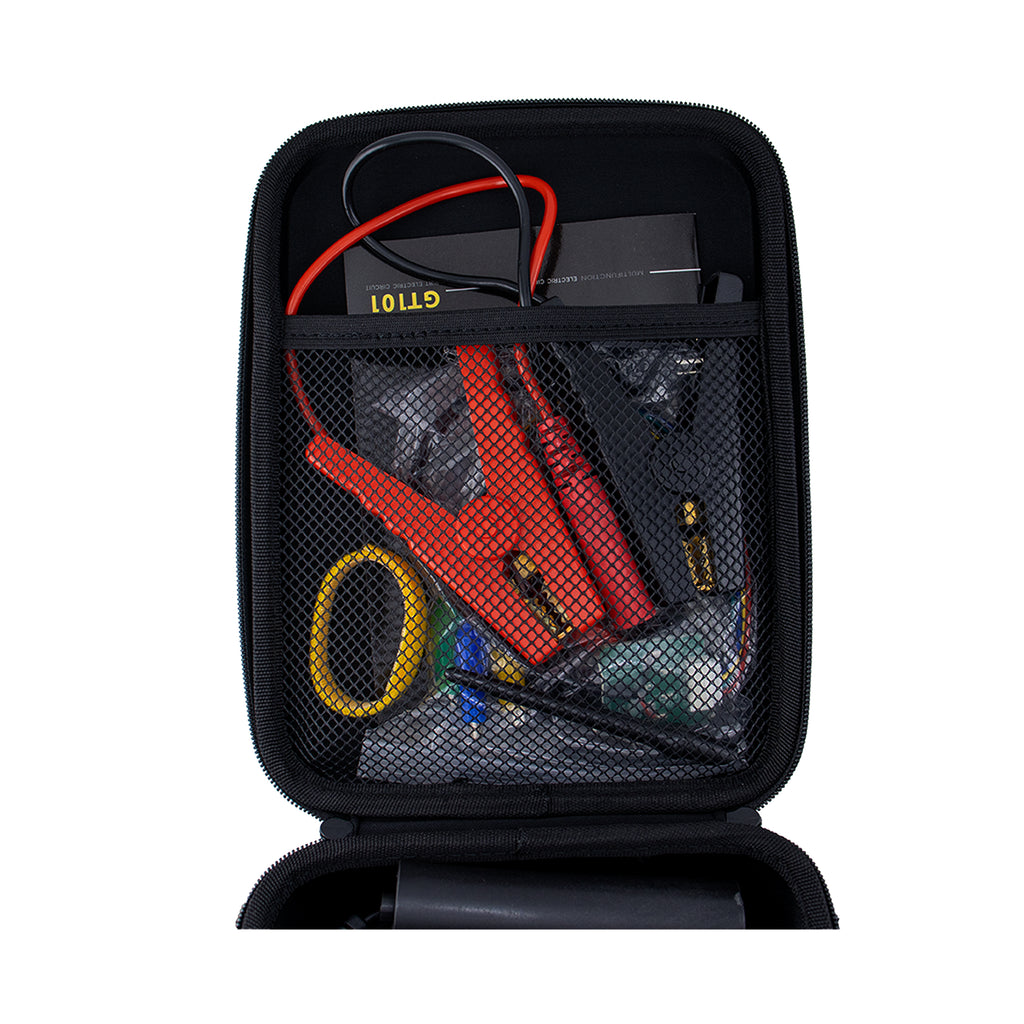

Package Contents
- 1 × GODIAG GT101 PIRT main unit

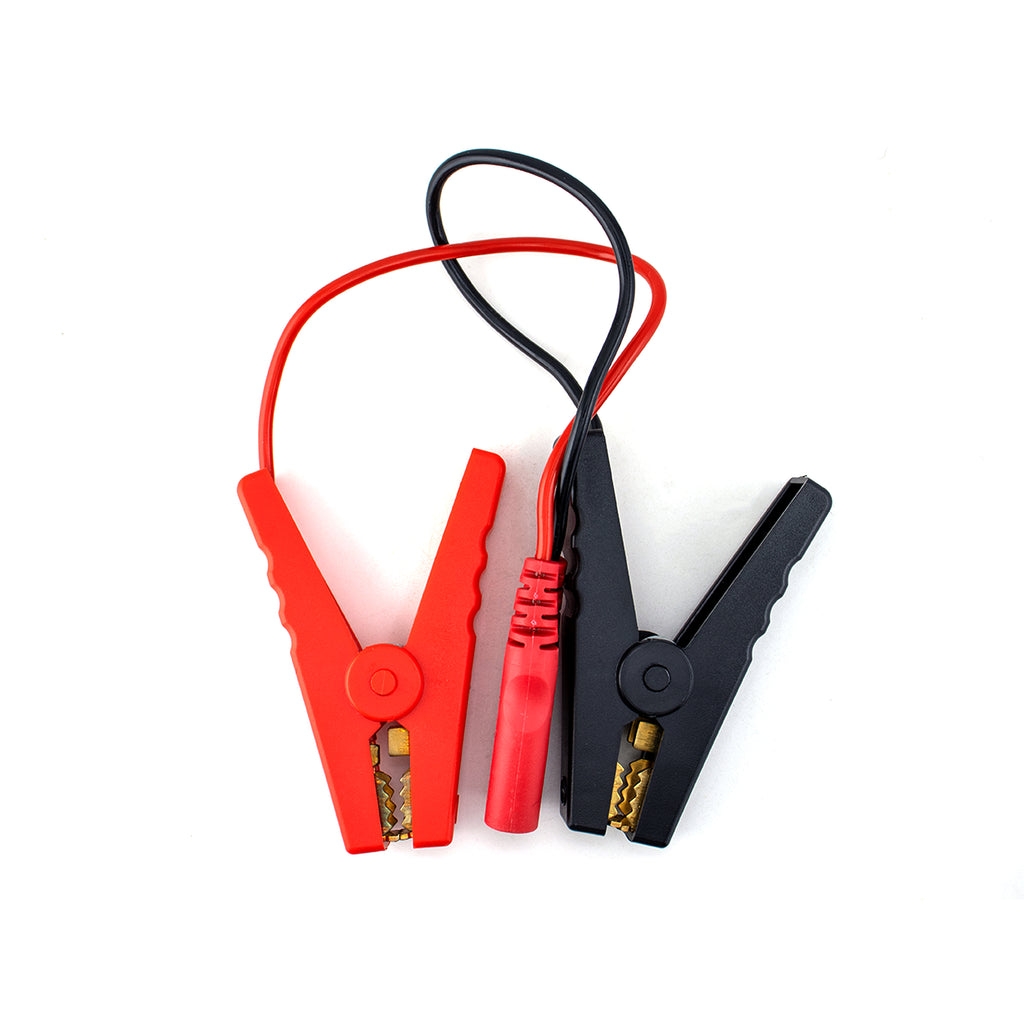

- 1 × Battery connection lead with clamps
- 1 × Circuit probe

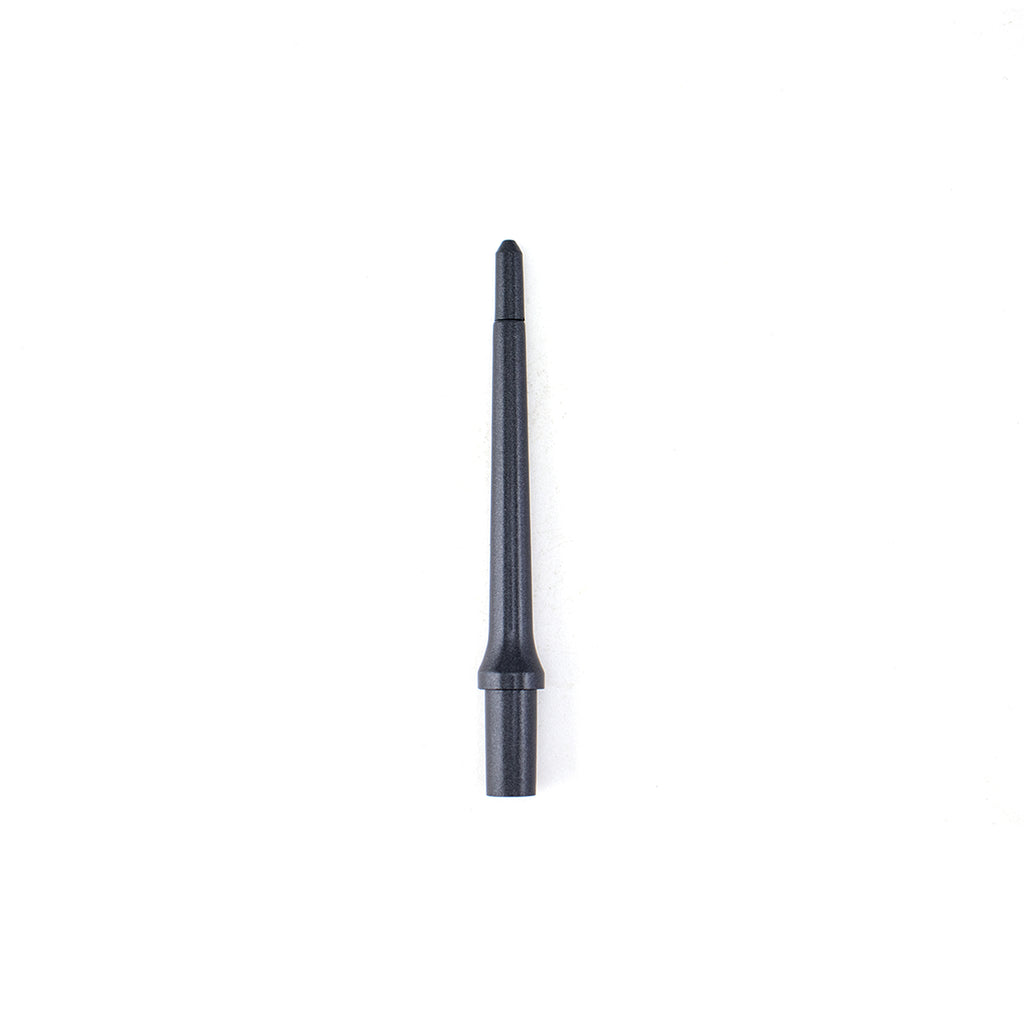

- 1 × Probe protection cap
- 1 × Fuel injector test lead
- 1 × 10mm fuel injector cleaning connector
- 1 × 12mm fuel injector cleaning connector
- 1 × Relay test adaptor
- 5 × Relay connection leads
- 1 × User manual
