Autel APB131 Adapter

Autel MaxiIM APB131 MQB-V850/RH850 Key Programming Adapter

The Autel MaxiIM APB131 is a key-programming adapter designed to read immobiliser data from supported MQB-V850 and RH850 instrument clusters.

When used with a compatible Autel MaxiIM tablet and XP400 or XP400 Pro programmer, the APB131 enables supported add-key procedures for selected Volkswagen Group vehicles. It also supports add-key and all-keys-lost procedures for selected Nissan models.

Product Features

• Reads immobiliser data from supported MQB-V850 and RH850 dashboards
• Supports key addition for selected Volkswagen, Audi, Škoda and SEAT vehicles
• Supports add-key and all-keys-lost procedures for selected Nissan vehicles
• Connects to the Autel XP400 or XP400 Pro key programmer
• Compatible with selected Autel MaxiIM key-programming tablets
• Supports a range of Renesas V850 and RH850 processor types

Specifications

• Manufacturer: Autel
• Manufacturer Part Number: APB131
• Product Type: Immobiliser Data and Key Programming Adapter
• Supported Systems: MQB-V850 and RH850
• Compatible Programmer: Autel XP400 / XP400 Pro
• Compatible Tablets: Autel MaxiIM IM508, IM508S, IM608 Pro and IM608 Pro II

Volkswagen Compatibility — Add Key

• Arteon 2017–2021
• Golf 2013–2021
• Jetta 2018–2021
• Passat 2015–2021
• Polo 2015–2021
• Tiguan 2018–2021
• Touareg 2010–2018
• Touran 2016–2022
• T-Roc 2018–2021

Audi Compatibility — Add Key

• Audi A1 2019–2021
• Audi A3 2021
• Audi A4 2008–2016
• Audi A5 2008–2016
• Audi A6 2011–2019
• Audi A7 2011–2019
• Audi A8 2010–2017
• Audi Q2 2017–2021
• Audi Q3 2019–2021
• Audi Q5 2009–2017

Škoda Compatibility — Add Key

• Škoda Fabia 2015–2021
• Škoda Kamiq 2020–2021
• Škoda Kodiaq 2017–2021
• Škoda Octavia 2013–2021
• Škoda Rapid 2013–2021
• Škoda Superb 2015–2021

SEAT Compatibility — Add Key

• SEAT Arona 2018–2021
• SEAT Ateca 2017–2021
• SEAT Ibiza 2018–2021
• SEAT Leon 2013–2021
• SEAT Tarraco 2019–2021
• SEAT Toledo 2013–2019

Nissan Compatibility — Add Key and All Keys Lost

• Nissan Juke F16 2012 onwards
• Nissan Note e-POWER HE13 2020 onwards
• Nissan Pathfinder R53 2022–2023
• Nissan Qashqai J12 2024 onwards
• Nissan Sentra/Sylphy B18 2019 onwards
• Nissan X-Trail/Rogue T33 2021 onwards

Supported Chip Models

• D70F3524
• D70F3525
• D70F3526
• D70F3529
• D70F3532
• D70F3535
• D70F3537
• D70F3426
• D70F3381
• D70F3382
• D70F3634
• D70F3635
• R7F701401
• R7F701402
• R7F701019
• R7F701025

Available functions depend on the vehicle, instrument-cluster processor, connected Autel equipment, software version and active coverage. Confirm the procedure through the relevant Autel vehicle menu before use.

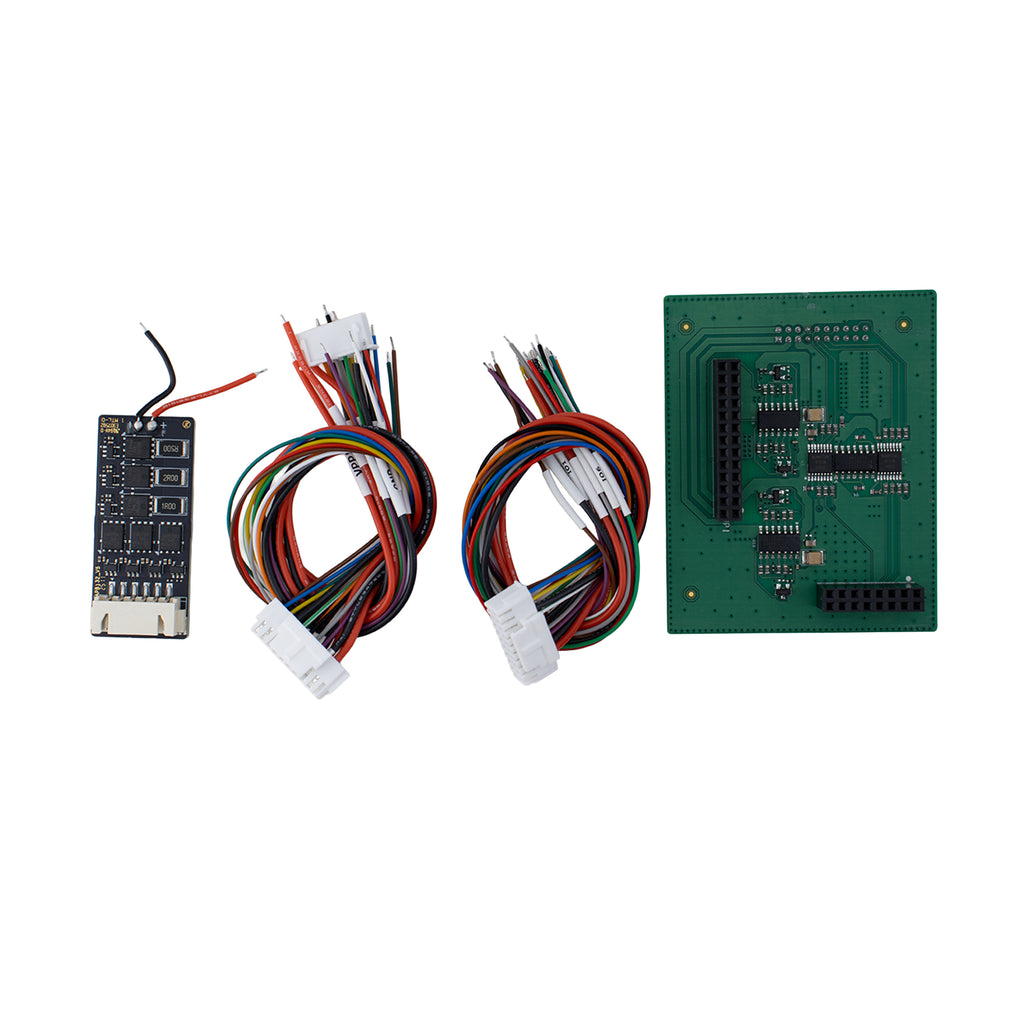

Package Contents

• 1 × Autel MaxiIM APB131 Adapter

Autel MaxiIM tablet and XP400 or XP400 Pro programmer are required and are not included unless otherwise stated.
