KEYDIY 12-Piece Solder-Free Clamp Adapter Kit
The KEYDIY 12-Piece Solder-Free Clamp Adapter Kit provides direct, solder-free connections to supported key circuit boards and BMW modules.
The precision clamp and probe design removes the need to solder wires directly to the circuit board, helping simplify data reading, key generation and supported programming procedures while reducing the risk of heat or solder damage.
Designed primarily for use with the KEYDIY KD-X4 and KD-MAX, the kit covers selected BMW BDC2, BDC3 and BCP applications, along with VAG MQB49 5C/5D, Audi 5D, Porsche 5D, folding-key, smart-key and LCD-key circuit boards.
Product Features
- Twelve dedicated welding-free adapters
- Direct clamp or probe connection to supported circuit boards
- Eliminates soldering for supported procedures
- Helps reduce the risk of PCB heat damage
- Clearly numbered adapters for easy selection
- Supports selected BMW and Volkswagen Group applications
- Suitable for supported folding, smart and LCD keys
- Designed for KEYDIY KD-X4 and KD-MAX equipment
- May support other compatible programming equipment
Specifications
- Manufacturer: KEYDIY
- Model / Reference: SO853
- Product Type: Welding-Free Clamp Adapter Kit
- Number of Adapters: 12
- Compatible Equipment: KEYDIY KD-X4 and KD-MAX
- Connection Type: Clamp and probe
- Application: Key PCB and module data access

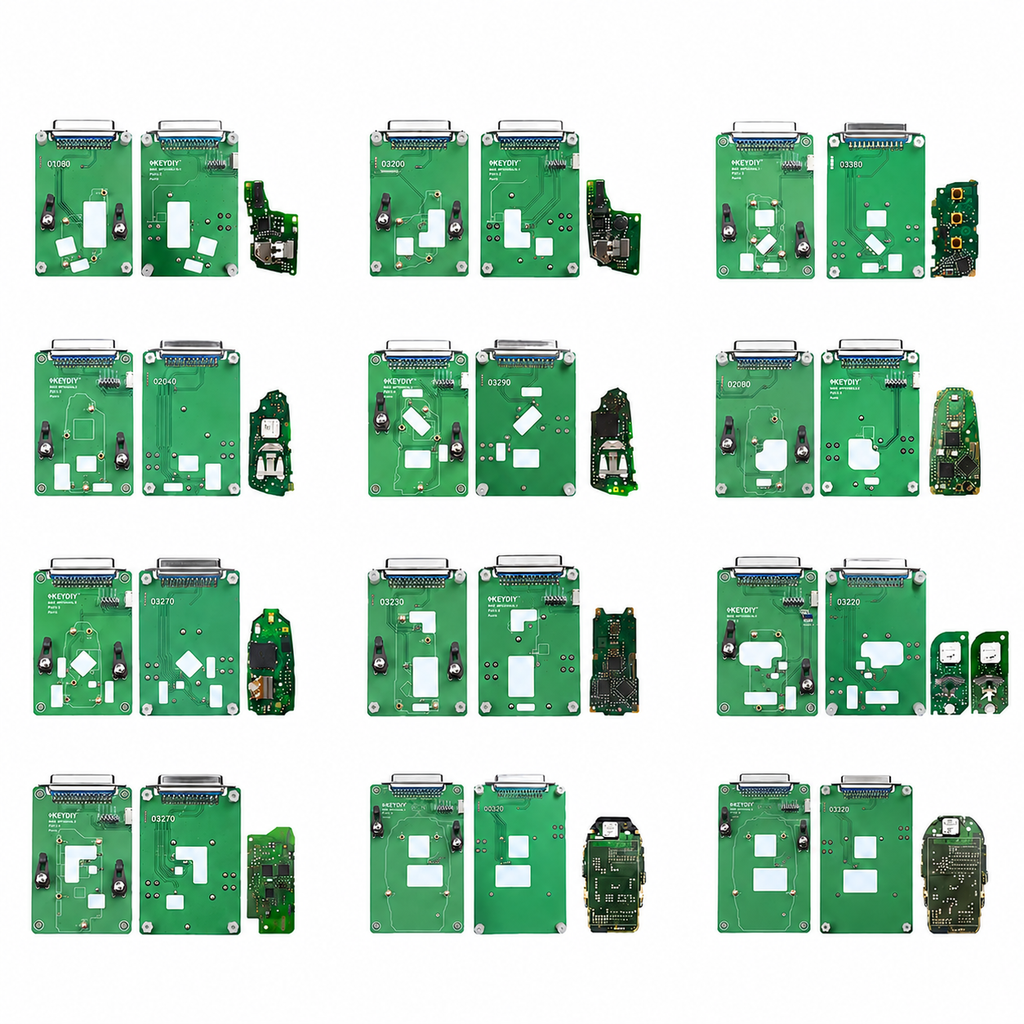

Included Adapters
-
BDC02/03 Adapter
For supported BMW BDC2 and BDC3 applications. -
DZ5C01 Adapter
For supported 5C key circuit boards. -
AD5D01 Adapter
For supported Audi 5D key circuit boards. -
AD5D02 Adapter
For supported Audi 5D key circuit boards. -
BSJ5D Adapter
For supported Porsche 5D key circuit boards. -
DZ5D01 Adapter – White Inductor
For supported 5D key circuit boards using the white inductor configuration. -
DZ5D02 Adapter – Black Inductor
For supported 5D key circuit boards using the black inductor configuration. -
DZ5C02 Adapter
For supported newer-style 5C folding-key circuit boards. -
DZ5C03 Adapter
For supported 5C folding-key circuit boards. -
BM-U Adapter
For supported BMW key circuit boards. -
BMW BDC3 LCD-Key Adapter
For supported BMW BDC3 LCD smart keys. -
BMW BDC2 LCD-Key Adapter
For supported BMW BDC2 LCD smart keys.
Supported Applications
The kit supports selected applications including:
- BMW BDC2
- BMW BDC3
- BMW BCP
- BMW LCD smart keys
- Volkswagen Group MQB49
- VAG 5C key circuit boards
- VAG 5D key circuit boards
- Audi 5D keys
- Porsche 5D keys
- Supported folding-key and smart-key circuit boards
Coverage depends on the connected programming device, software version, key circuit board and selected procedure. Confirm the correct adapter and connection method through the KEYDIY application before use.
Package Contents
- 12 × KEYDIY welding-free clamp adapters
- Adapter connection cables
- Individual protective storage cases
