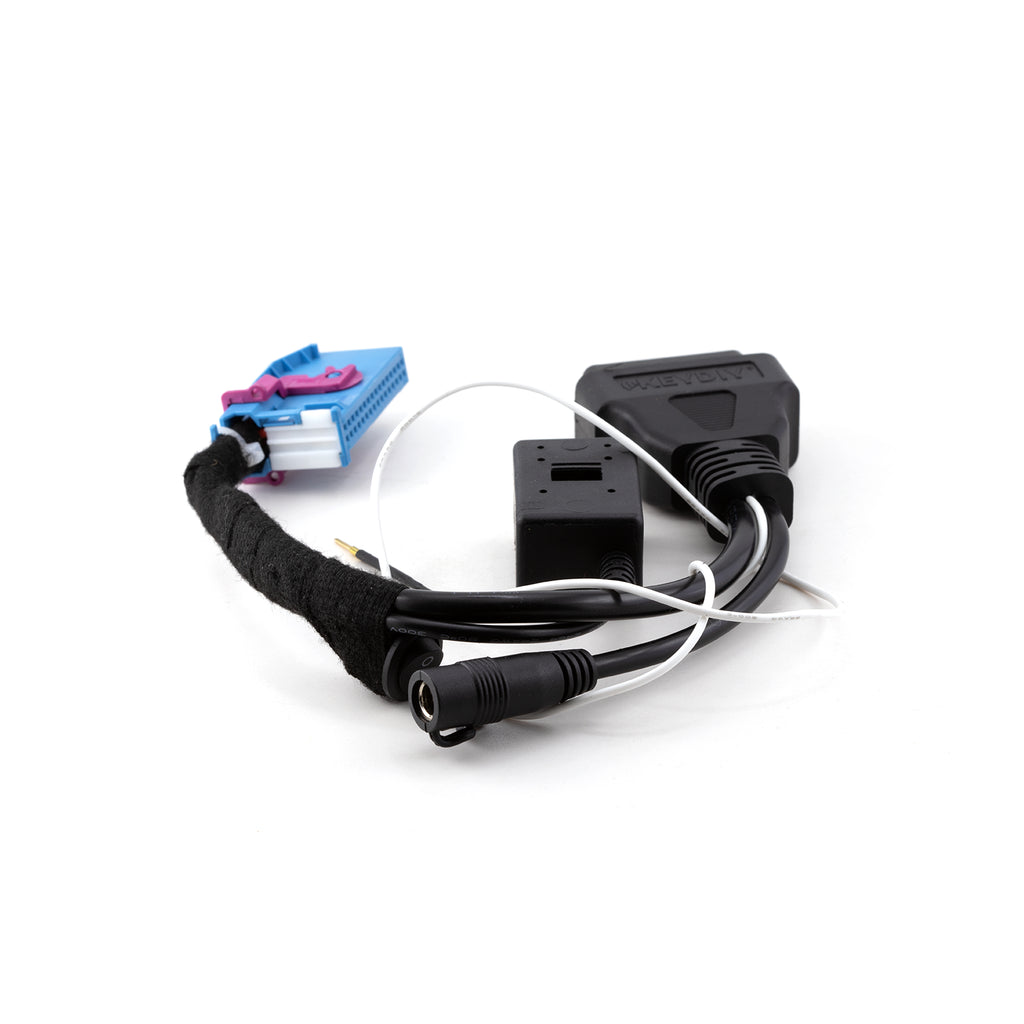

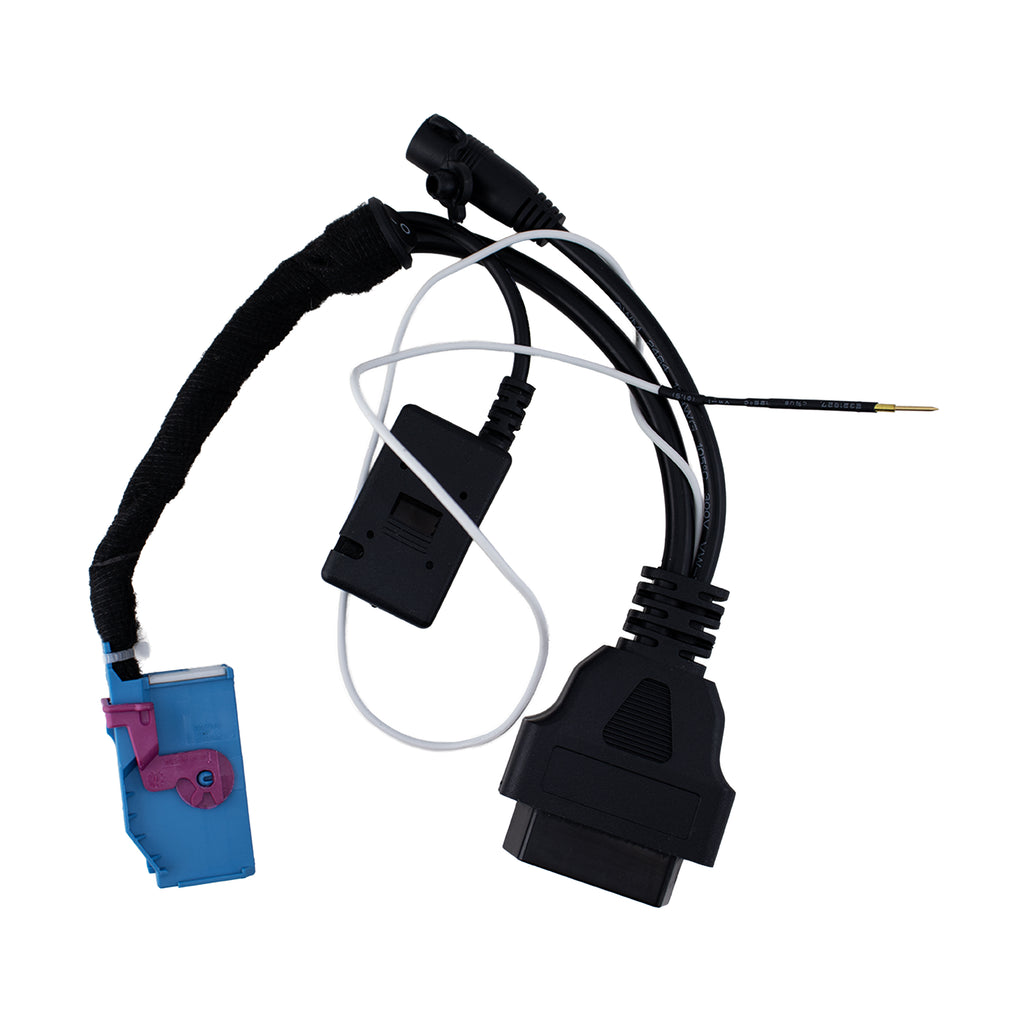

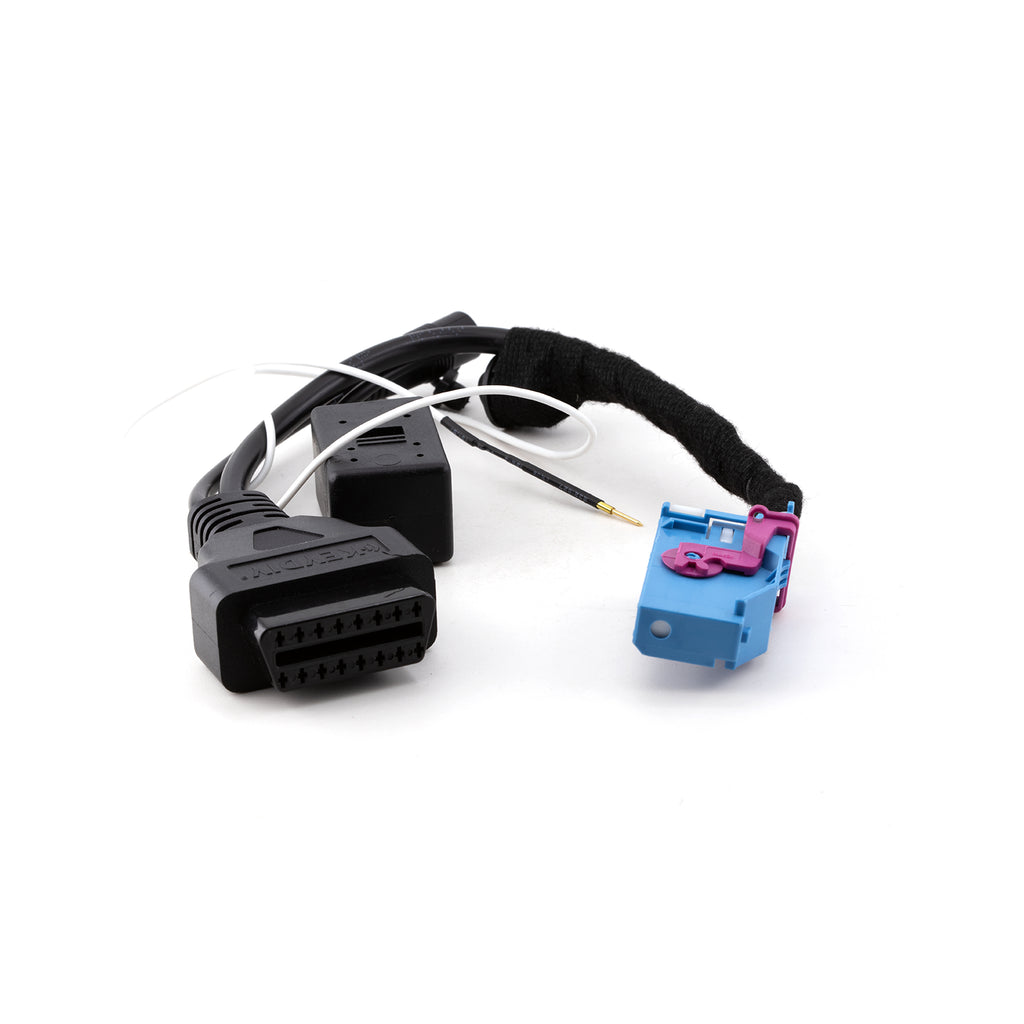

KEYDIY KD-VW01 VAG IMMO4 Instrument Cluster Cable – KDVW01
The KEYDIY KD-VW01 is a bench connection cable designed for supported Volkswagen Group IMMO4 instrument clusters using NEC + 24C32 or NEC + 24C64 memory configurations.
The cable allows a compatible instrument cluster to be connected to supported KEYDIY equipment for immobiliser status checking, key learning and dealer-key generation. Its integrated key-reading coil allows the generated key to be identified and validated directly on the bench.
For supported applications, the dealer key can be generated and learned while the instrument cluster is connected to the test platform, avoiding the need to repeat the key-learning procedure after the cluster is reinstalled.
Product Features
- Designed for supported VAG IMMO4 instrument clusters
- Supports NEC + 24C32 memory configurations
- Supports NEC + 24C64 memory configurations
- Integrated key-reading and induction coil
- Supports immobiliser status checking
- Supports applicable add-key and all-keys-lost procedures
- Generates supported dealer keys directly on the bench
- Allows key identification and validation before cluster installation
- Provides a stable connection during instrument-cluster procedures
- Plug-and-play connection with compatible KEYDIY equipment
Supported Instrument Clusters
Supports selected configurations including:
- Fourth-generation NEC + 24C32
- Fourth-generation NEC + 24C64
- 2012 NEC + 24C64 colour-screen clusters
- 2013 NEC + 24C64 clusters
- 2014 NEC + 24C64 colour-screen clusters
- Post-2014 NEC + 24C64 clusters
- Selected later-generation NEC + 24C64 clusters
Specifications
- Manufacturer: KEYDIY
- Manufacturer Part Number: KDVW01
- Alternative Reference: KD-VW01
- Product Type: VAG Instrument Cluster and Immobiliser Cable
- Supported Memory: NEC + 24C32 and NEC + 24C64
- Supported System: Selected VAG IMMO4 systems
- Integrated Component: Key-reading induction coil
- Application: Bench key learning and dealer-key generation
Vehicle Compatibility
Suitable for selected instrument clusters used across:
- Volkswagen
- Audi
- Škoda
- SEAT
Compatibility is determined by the instrument-cluster processor, EEPROM configuration and immobiliser generation rather than the vehicle model and year alone.
Compatible Equipment
Designed for use with selected KEYDIY equipment, including:
- KEYDIY KD-X4
Available functions depend on the connected KEYDIY equipment, software version, instrument-cluster type and current application coverage.
Package Contents
- 1 × KEYDIY KD-VW01 Instrument Cluster Cable
KEYDIY programming equipment and the instrument cluster are not included unless otherwise stated.
