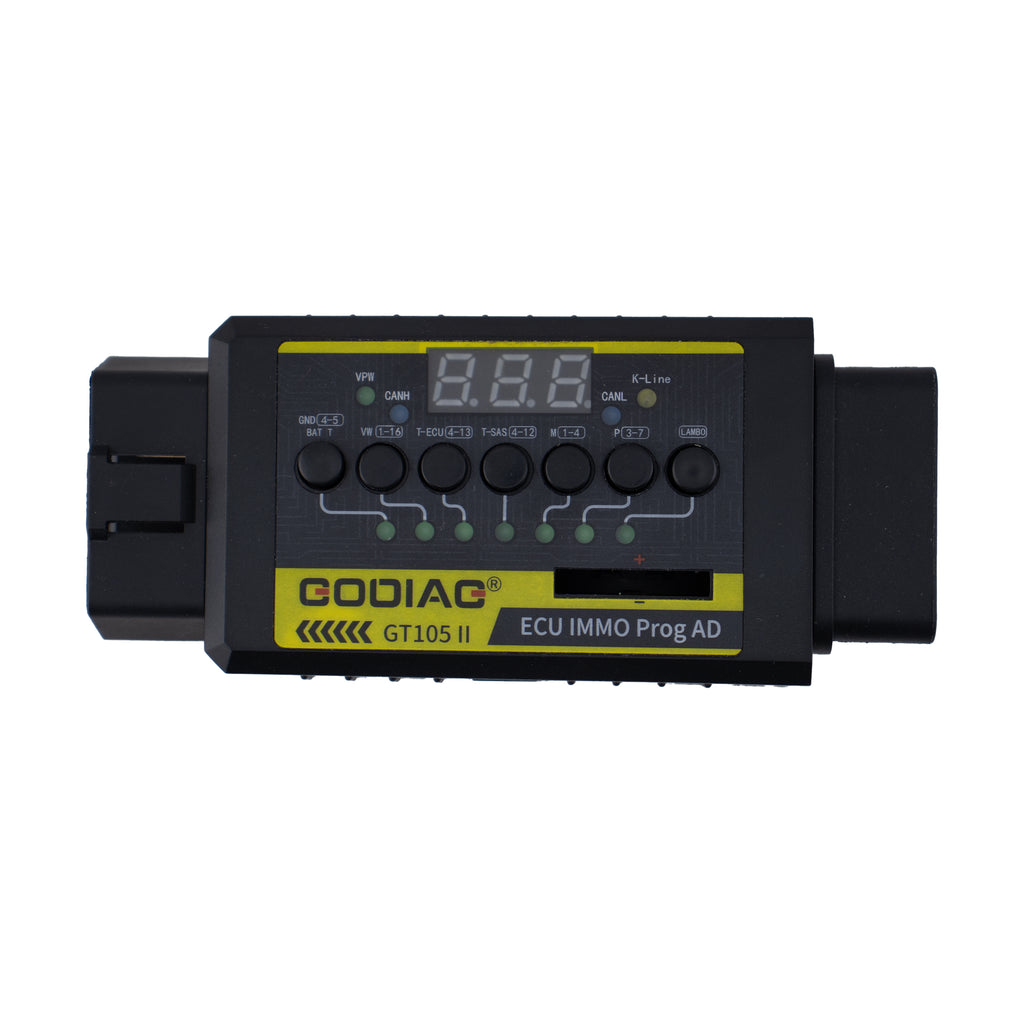

GODIAG GT105 II ECU IMMO Programming Adapter – SE158-C
The GODIAG GT105 II is an OBD2 breakout and power adapter used for immobiliser activation, ECU diagnostics, programming connections and supported all-keys-lost procedures. It can also draw 12V power from the vehicle battery for compatible programming equipment during mobile work.
The upgraded GT105 II adds a vehicle voltage display, CR2032 remote-battery testing, a low-voltage warning below 11V, Toyota steering-angle sensor matching and Lamborghini ID48 immobiliser auxiliary activation.
Product Features
- Displays the connected vehicle’s battery voltage
- Tests CR2032 remote-control batteries
- Provides an alarm when vehicle voltage drops below 11V
- Supports applicable Toyota steering-angle sensor matching
- Supports Lamborghini ID48 immobiliser auxiliary activation
- PWM+, CAN High, CAN Low and K-Line communication indicators
- Independent OBD2 Pin 4 body ground and Pin 5 signal ground
- Switchable Pin 4 and Pin 5 short-circuit function
- Provides 12V power from a vehicle battery
- Resettable 7A fuse and reverse-connection protection
- Can maintain vehicle power during battery replacement
- Suitable for supported ECU bench connections when used with the required programming cable
Supported Applications
Depending on the connected programming equipment, the GT105 II can assist with:
- Ford smart-key all-keys-lost procedures on selected 2016-onwards vehicles
- Volkswagen Group fourth- and fifth-generation immobiliser activation
- Toyota ECU and immobiliser synchronisation
- Mitsubishi all-keys-lost key and remote procedures
- Older Porsche Cayenne key-learning procedures
- Lamborghini ID48 immobiliser activation
- Toyota steering-angle sensor matching
- ECU diagnostics, reading, writing and cloning with compatible equipment
- Monitoring communication between the vehicle and programming tool
- Supplying power to compatible 12V programmers and key-cutting machines
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SE158-C
- Model: GT105 II
- Product Type: ECU IMMO Programming and OBD2 Breakout Adapter
- Power Output: 12V DC from the connected vehicle battery
- Communication Indicators: PWM+, CAN High, CAN Low and K-Line
- Low-Voltage Warning: Below 11V
- Remote Battery Test: CR2032
- Fuse: Resettable 7A
- Weight: Approximately 0.1kg
- Package Dimensions: Approximately 17 × 12 × 6cm
Compatible Equipment
Suitable for use with selected programming and diagnostic equipment, including:
- Xhorse VVDI Key Tool Plus
- Xhorse VVDI Prog
- Autel IM508 and IM608 series
- OBDSTAR equipment
- CGDI programmers
- MPPS
- FGTech
- KESS V2
- Other compatible OBD2 diagnostic and ECU-programming equipment
Available functions depend on the connected equipment, vehicle system, software version and required accessories.

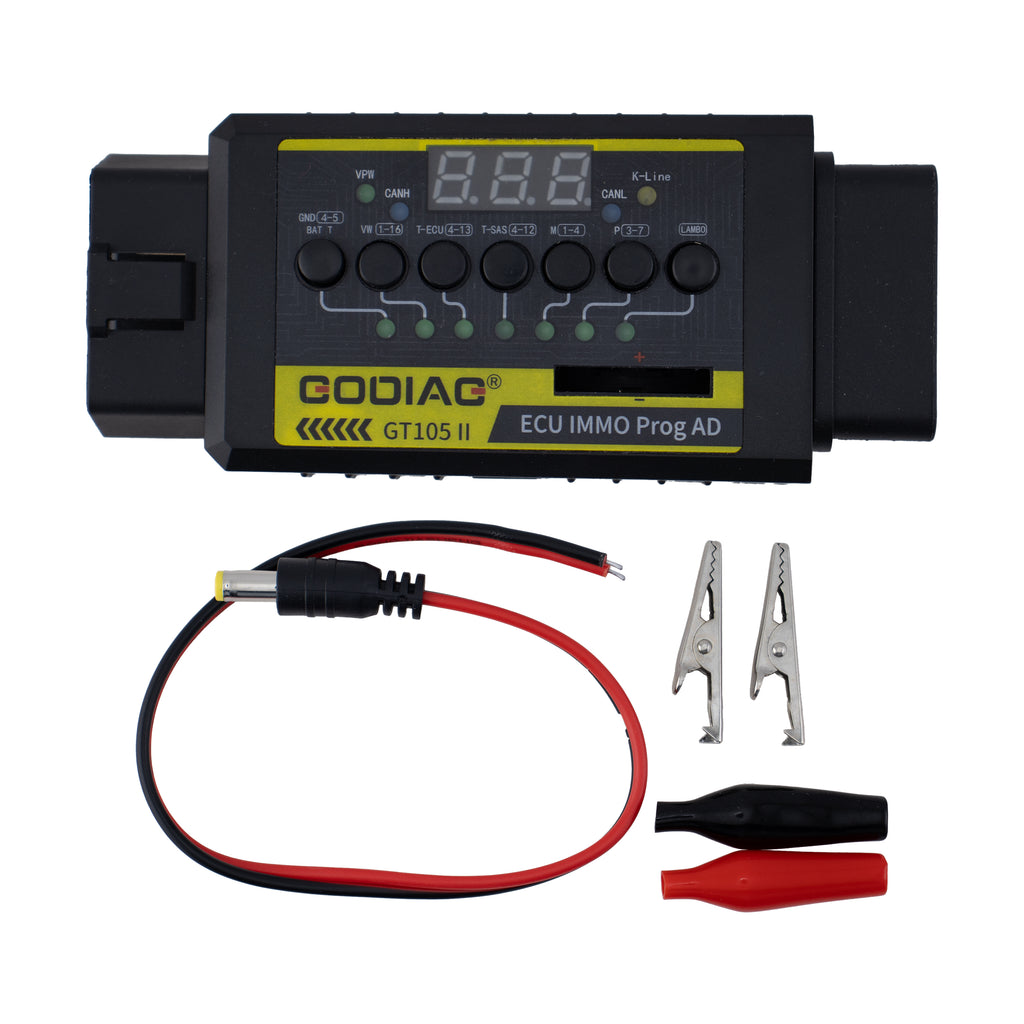

Package Contents
- 1 × GODIAG GT105 II main unit
- 1 × Power cable with battery clamps
The full-protocol ECU programming cable and programming equipment are not included unless otherwise stated.
