GODIAG SF277 Colour-Coded DB25 ECU Jumper Cable

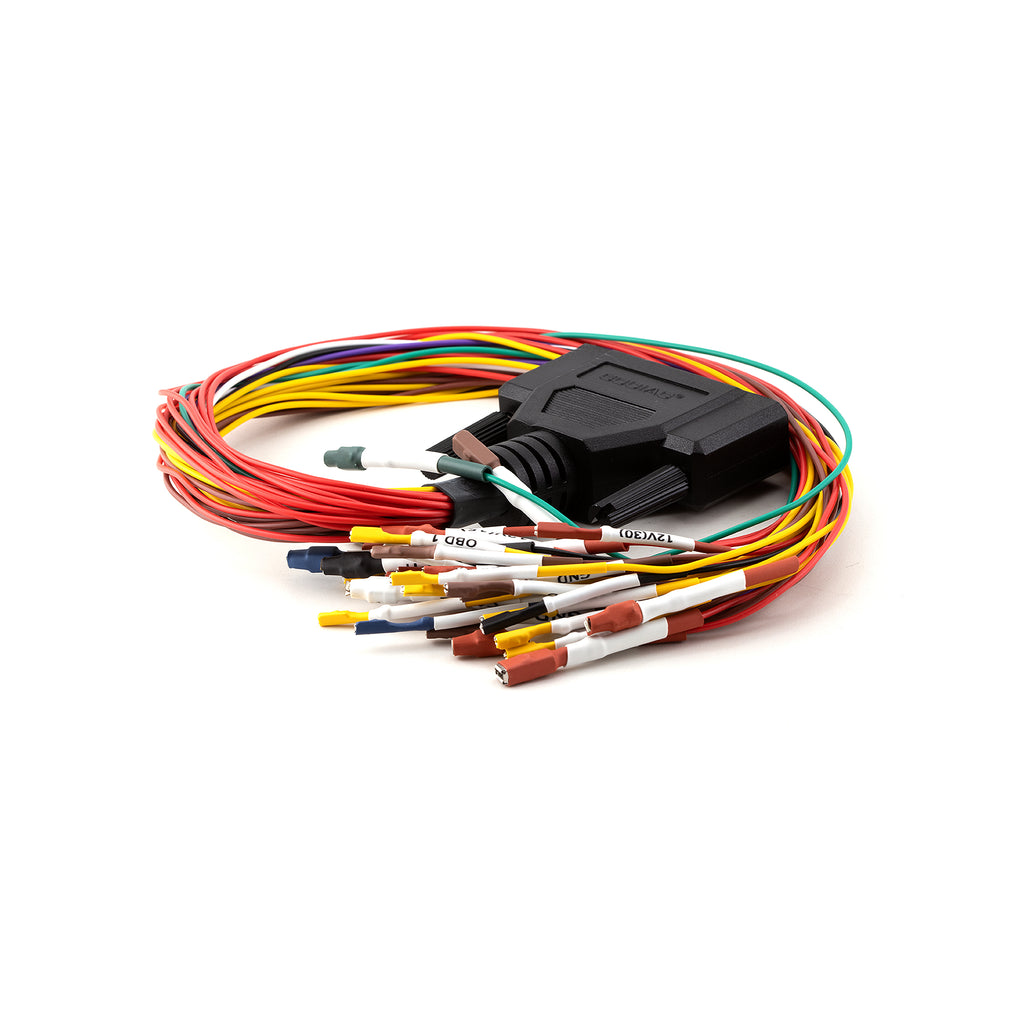

The GODIAG SF277 is a colour-coded DB25 jumper cable designed for creating direct bench connections to individual or multiple vehicle control modules.
When used with compatible GODIAG breakout boxes, test platforms and the SF281 OBD2-to-DB25 cable, it allows the required power, ground and communication connections to be routed between an ECU and compatible diagnostic or programming equipment.

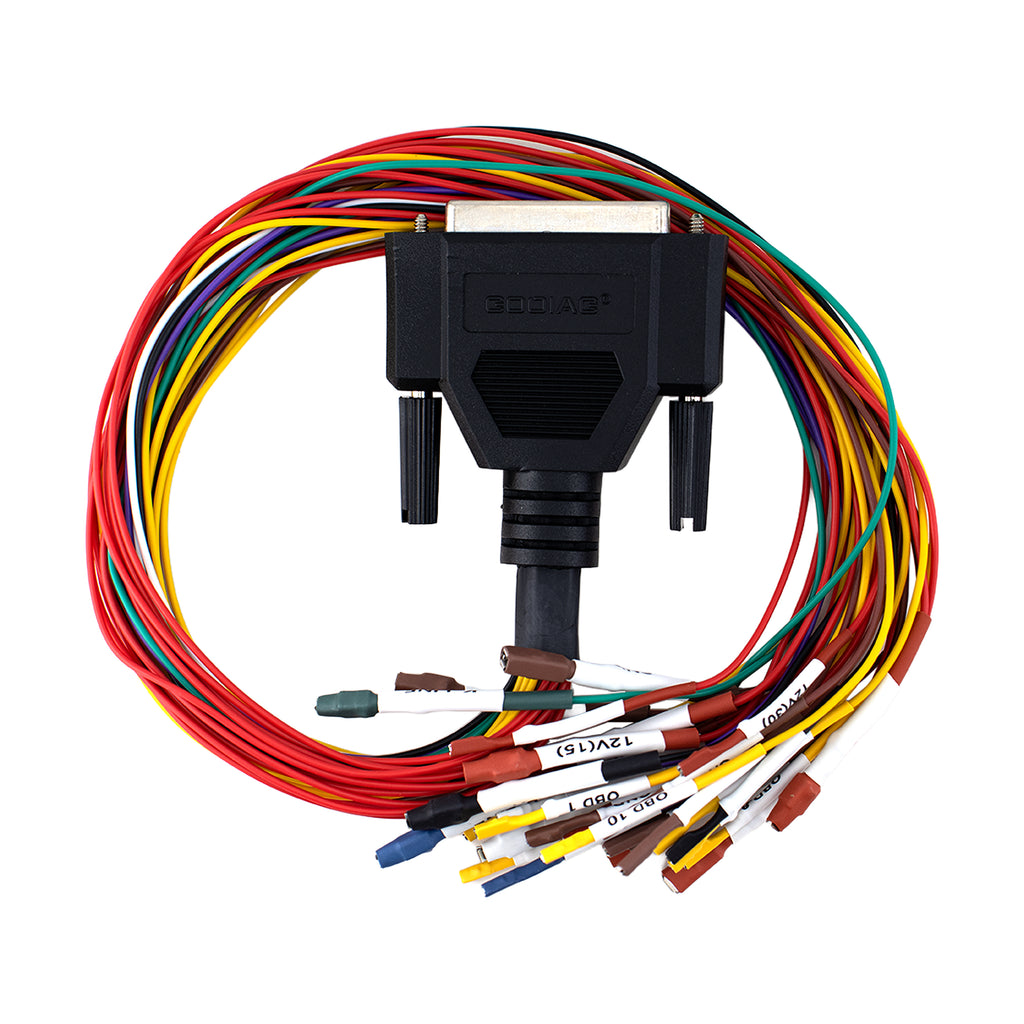

Each lead is clearly colour-coded and labelled, helping simplify ECU pin identification and custom bench wiring.
Product Features
- Colour-coded ECU connection leads
- DB25 connector for compatible GODIAG equipment
- Suitable for connecting individual or multiple control modules
- Provides access to power, ground and communication lines
- Assists with custom ECU bench connections
- Clearly labelled leads simplify pin identification
- Suitable for diagnostics, programming, coding and module testing
- Reusable replacement or additional jumper harness
Supported Applications
Depending on the connected equipment and module pinout, the SF277 can assist with:
- ECU bench diagnostics
- ECU reading and writing
- Module programming and coding
- Communication testing
- Connecting multiple vehicle modules together
- Custom power, ground, CAN Bus and K-Line connections
- Module maintenance and testing
- Creating specialised bench wiring configurations
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SF277
- Alternative Reference: HKSF277
- Product Type: Colour-Coded DB25 ECU Jumper Cable
- Connector: DB25
- Application: ECU and module bench connections
- Weight: Approximately 0.1kg
Compatible Equipment
Suitable for use with selected GODIAG equipment, including:
- GODIAG GT100
- GODIAG GT100+
- GODIAG SF281 OBD2-to-DB25 Cable
- GODIAG BMW CAS4/CAS4+ Test Platforms
- GODIAG BMW FEM/BDC Test Platforms
- Other compatible DB25 bench platforms and breakout equipment
Available functions depend on the connected diagnostic or programming equipment, ECU type, software and wiring configuration.
Important Information
The SF277 is a connection harness only. Always confirm the ECU pinout, voltage requirements, grounds and communication lines before applying power.
Incorrect wiring may damage the connected ECU or programming equipment.
