GODIAG MQB Data Collector ELV/TCM DSG Adapter – SF382-B

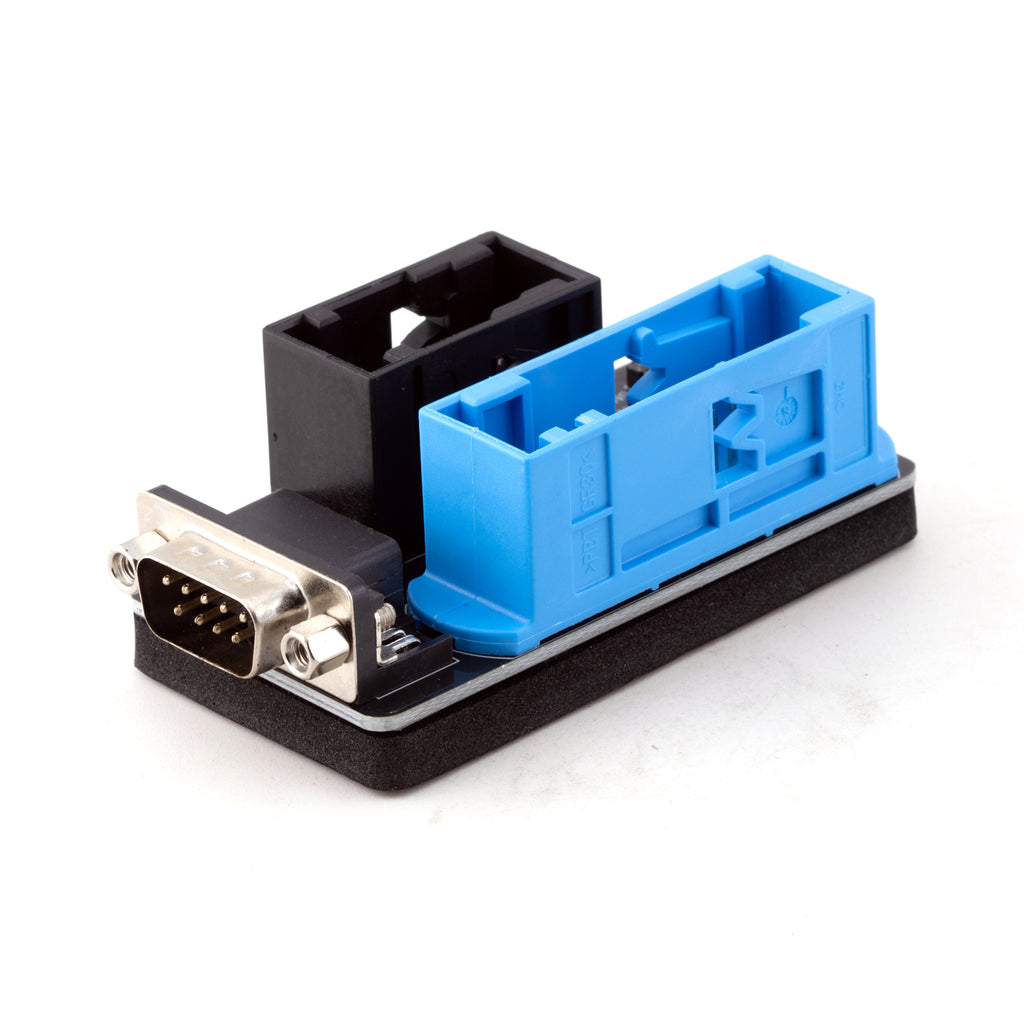

The GODIAG SF382-B is an MQB data collector designed for connecting supported Volkswagen Group electronic steering lock and DSG transmission modules during bench procedures.
When connected to the GODIAG GT115, the adapter provides the required connection between a supported MQB instrument cluster and electronic steering lock for applicable ELV data-collection procedures.
The SF382-B can also be combined with the GODIAG GT107+ gearbox adapter and a compatible OBD2 communication cable for supported transmission-module diagnostics, data reading and writing on the bench.
Product Features
- Designed for supported Volkswagen Group MQB systems
- Assists with electronic steering lock data collection
- Connects supported MQB instrument clusters and ELV modules
- Supports applicable DSG transmission-module bench connections
- Works with the GODIAG GT115 MQB test platform
- Works with the GODIAG GT107+ gearbox adapter
- Supports CAN Bus and K-Line communication connections
- Clearly identified measurement and communication terminals
- Compact adapter suitable for bench programming setups
Supported Applications
Depending on the connected equipment and module, the SF382-B can assist with:
- MQB electronic steering lock data collection
- Instrument-cluster and ELV bench connections
- DSG transmission-module communication
- TCM diagnostics
- Reading supported transmission data
- Writing supported transmission data
- Establishing custom bench connections using compatible OBD2 cables
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SF382-B
- Product Type: MQB ELV/TCM Data Collector and Gearbox Adapter
- Supported Platform: Volkswagen Group MQB
- Supported Modules: Electronic Steering Lock and DSG Transmission Control Modules
- Communication: CAN Bus and K-Line
- Connections: MQB instrument-cluster plug, DB9 and multi-pin test connector

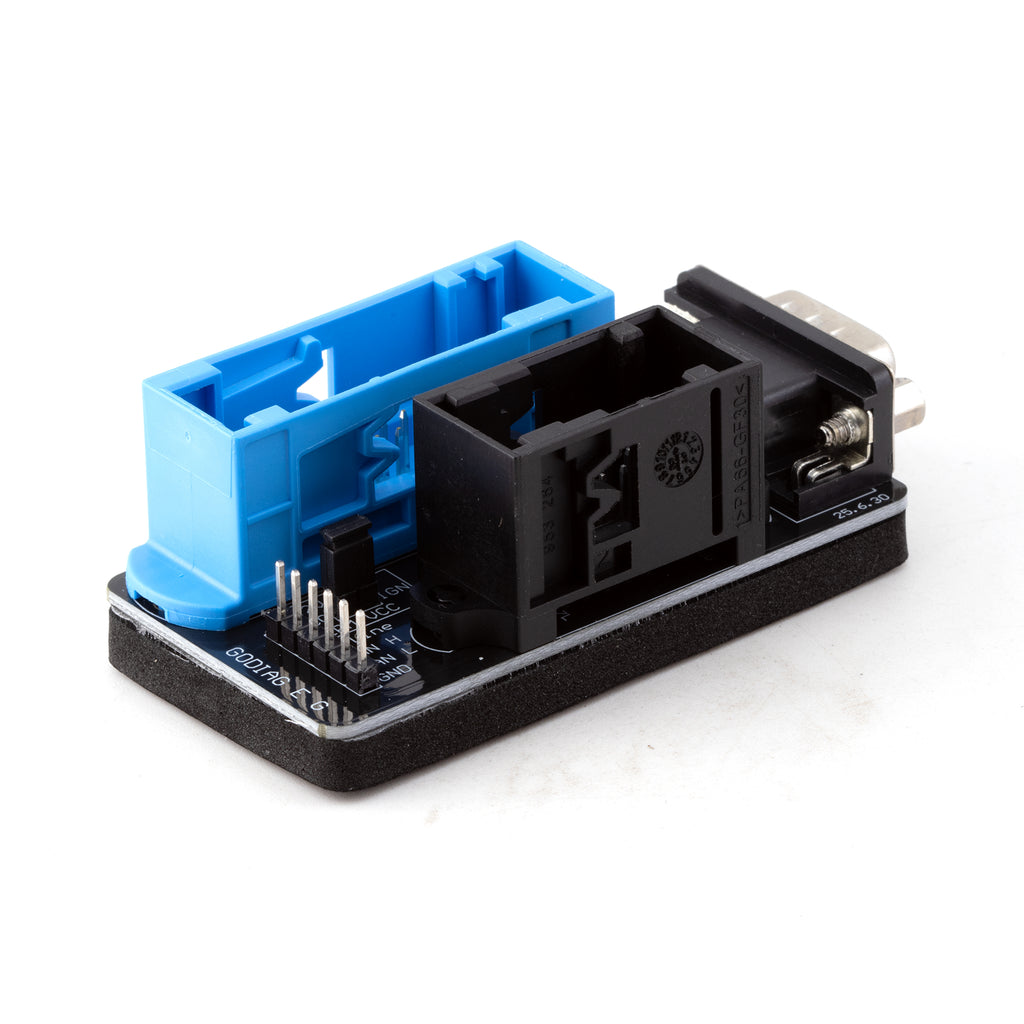

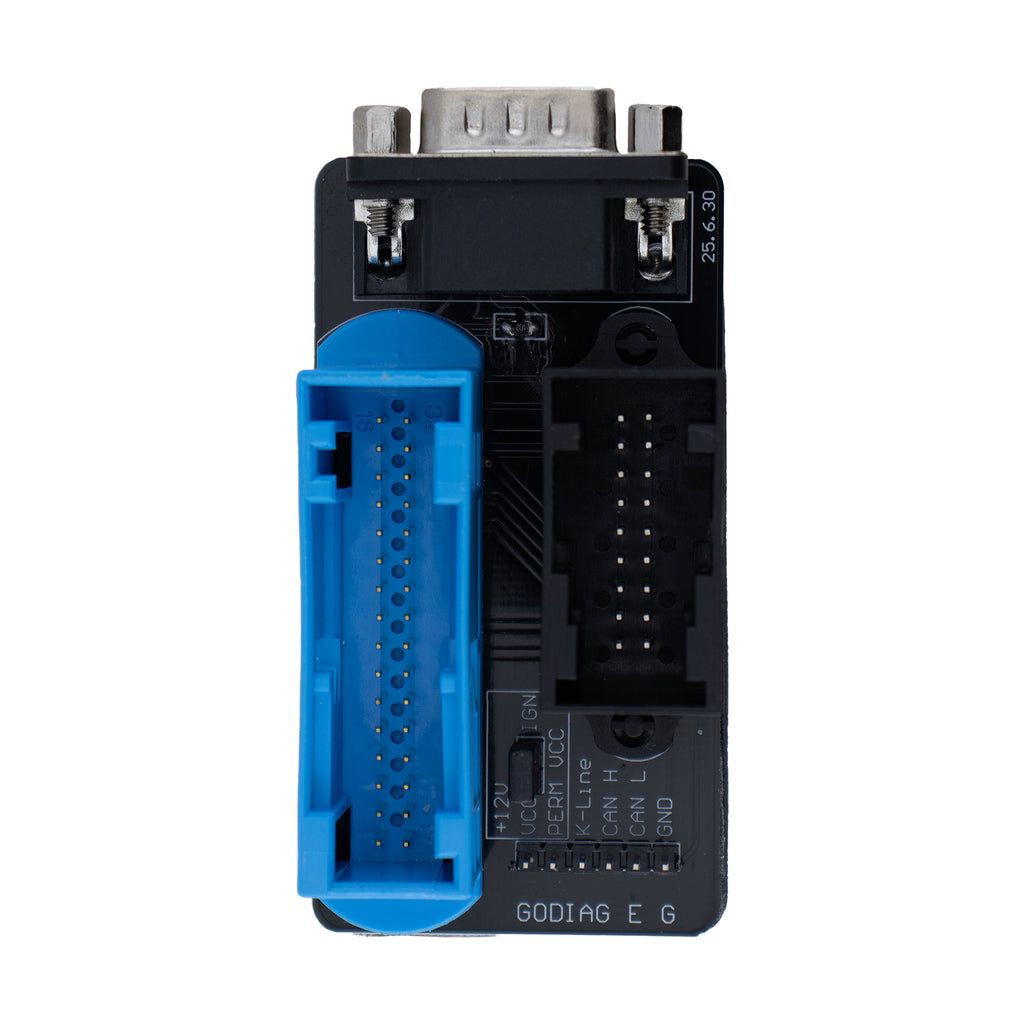

Connection Terminals
The adapter provides access to terminals including:
- +12V
- VCC
- Ignition
- Permanent VCC
- K-Line
- CAN High
- CAN Low
- Ground
Compatible Equipment
Designed for use with selected GODIAG equipment, including:
- GODIAG GT115 MQB IMMO4 Test Platform – SF414
- GODIAG GT107+ DSG Gearbox Data Adapter
- GODIAG full-protocol OBD2 jumper cable
- Other compatible CAN Bus OBD2 communication cables
Available functions depend on the connected equipment, module type, programmer and software protocol.
Package Contents
- 1 × GODIAG SF382-B MQB Data Collector
The GT115, GT107+, OBD2 communication cables, programming equipment and power supply are not included unless otherwise stated.
