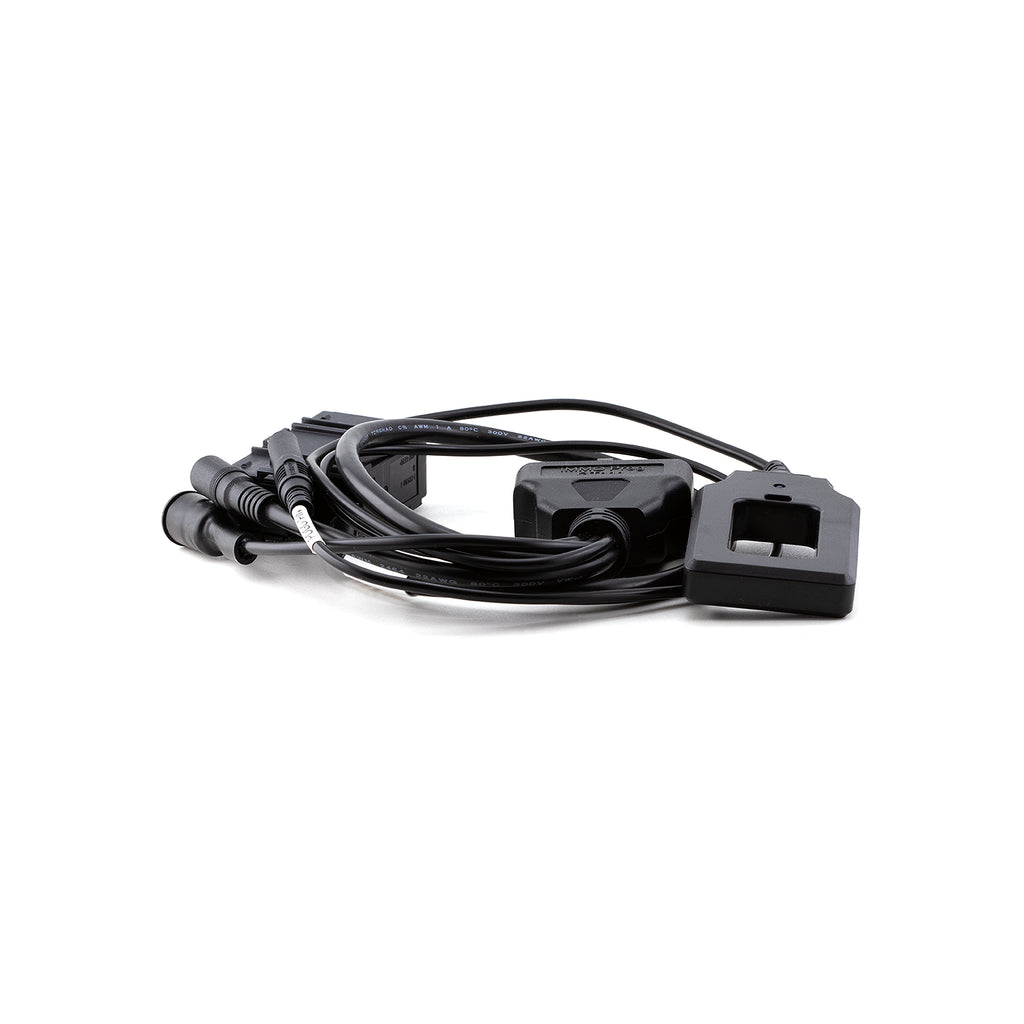

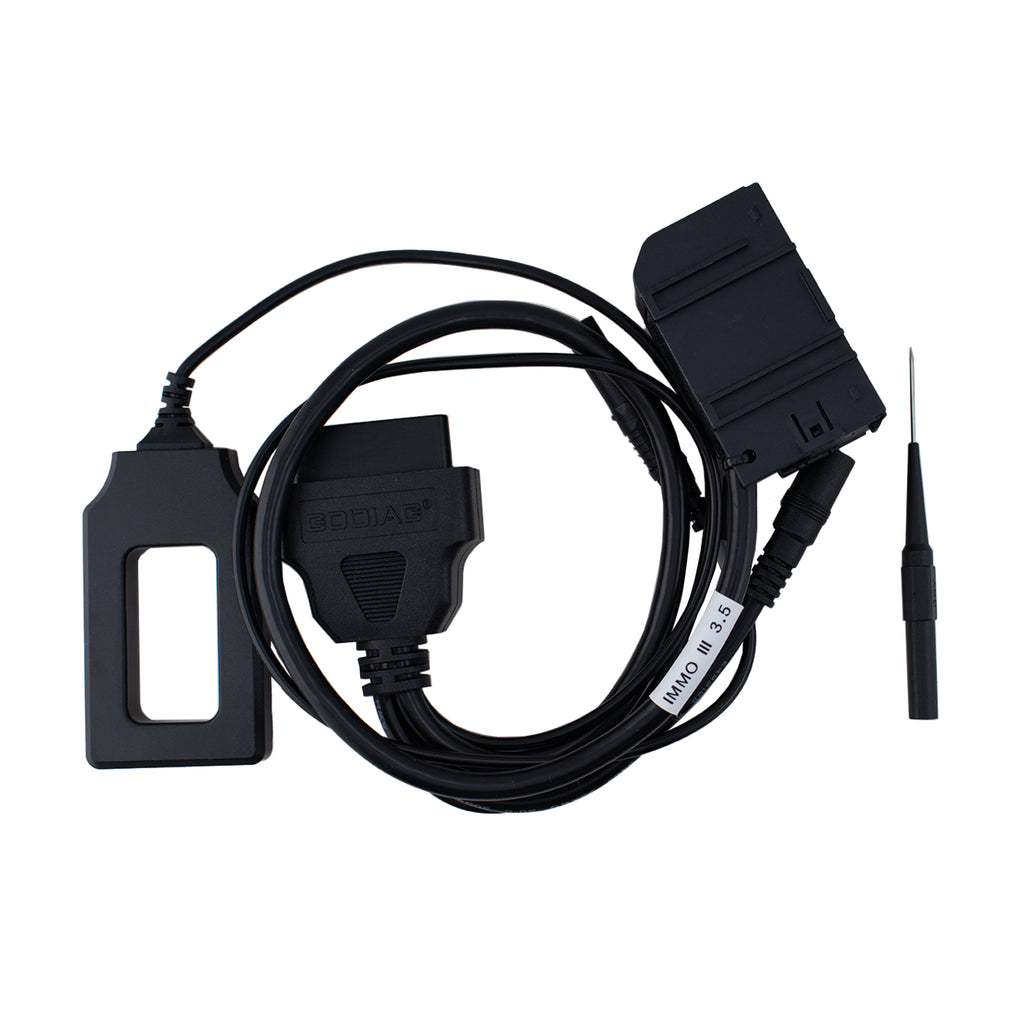

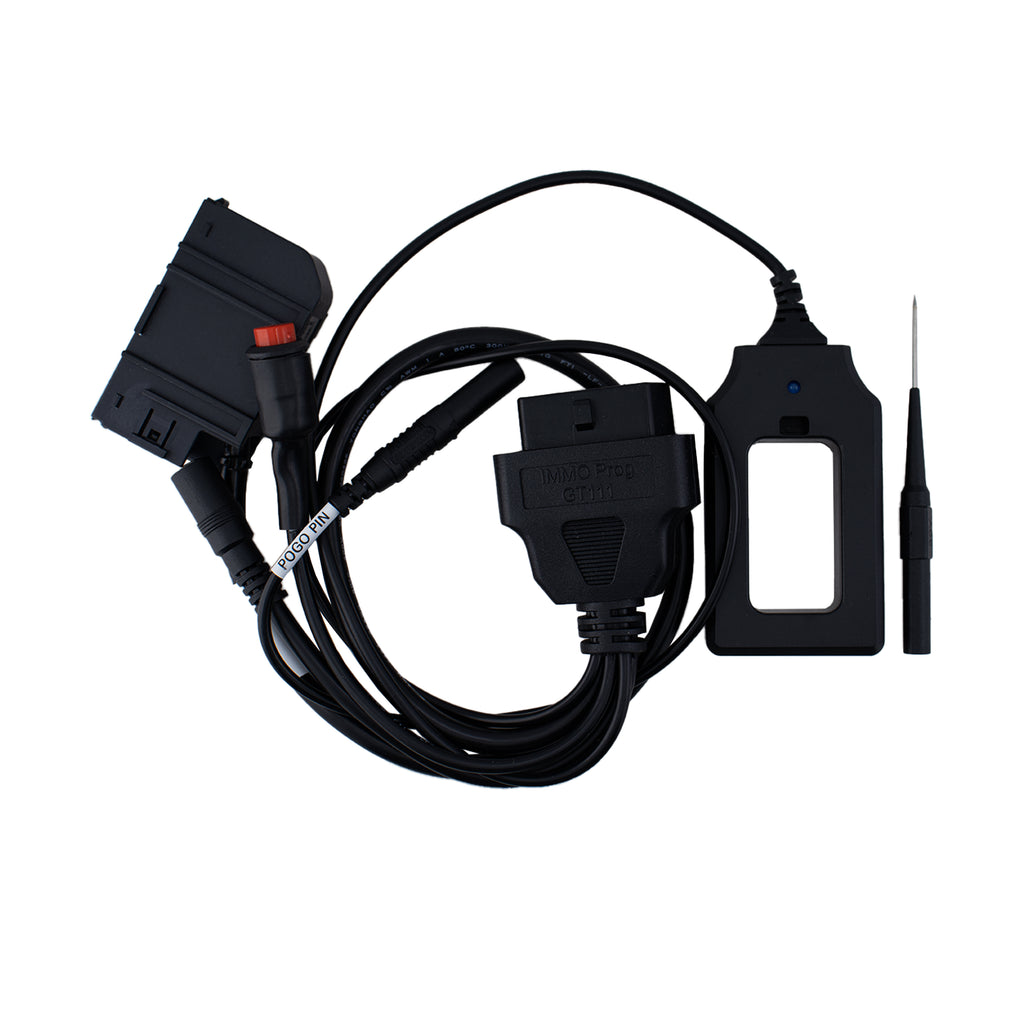

GODIAG GT111 VAG CAN-Bus Dashboard IMMO Test Platform – SF396
The GODIAG GT111 is a bench test platform designed for selected Volkswagen Group instrument clusters using third- and 3.5-generation CAN-Bus immobiliser systems.
The supplied POGO pin provides a direct connection to supported dashboard circuit boards, allowing applicable instrument and immobiliser data to be accessed without soldering. The platform converts the dashboard connection to a standard OBD2 interface for use with compatible diagnostic and key-programming equipment.
An integrated ignition switch and illuminated key-induction area assist with testing communication and synchronisation between the instrument cluster and transponder key.
Product Features
- Supports selected VAG third- and 3.5-generation CAN-Bus dashboards
- Direct POGO-pin connection to supported instrument clusters
- Solder-free connection for applicable procedures
- Converts the dashboard connection to a standard OBD2 interface
- Supports applicable instrument and immobiliser data reading and writing
- Tests synchronisation between the key chip and instrument cluster
- Supports offline instrument-cluster diagnostics
- Assists with key-matching procedures
- Integrated ignition-control switch
- Key-induction adapter with status indicator
- Can assist with identifying the vehicle’s emergency-start sensing area
Supported Functions
Depending on the connected equipment and instrument-cluster type, the GT111 can assist with:
- Reading and writing supported immobiliser data
- Key and instrument-cluster synchronisation testing
- Key-matching procedures
- Transponder recognition testing
- Offline dashboard diagnostics
- Checking instrument-cluster communication
- Emergency-start induction testing
- Instrument-cluster data servicing
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SF396
- Model: GT111
- Product Type: VAG Dashboard and IMMO Bench Test Platform
- Supported Systems: Third- and 3.5-generation CAN-Bus immobiliser systems
- Connections: OBD2 and POGO pin
- Application: Bench diagnostics, data access and key programming
Vehicle Compatibility
Suitable for selected vehicles from:
- Volkswagen
- Audi
- Škoda
- SEAT
Designed primarily for supported Micronas instrument clusters using third- and 3.5-generation CAN-Bus immobiliser systems, commonly found in selected 2007–2012 VAG applications.
Compatibility must be confirmed using the instrument-cluster type and immobiliser generation rather than the vehicle model and year alone.
Compatible Equipment
Suitable for use with selected diagnostic and key-programming equipment, including:
- Xhorse VVDI2
- Xhorse Key Tool Plus
- Autel key-programming equipment
- OBDSTAR equipment
- Lonsdor equipment
- Zed-FULL
- AVDI
- VAG-COM / VCDS
- HEX-V2
- VAS 5054A
- VAS 6154
- Super VAG K+CAN
- X300 DP Plus
Available functions depend on the connected equipment, software version, instrument-cluster processor and immobiliser system.
Package Contents
- 1 × GODIAG GT111 VAG CAN-Bus Dashboard IMMO Test Platform with POGO Pin
Diagnostic and key-programming equipment is not included unless otherwise stated.
