GODIAG GT110 VAG UDS IMMO Test Platform with POGO Pin – SK397

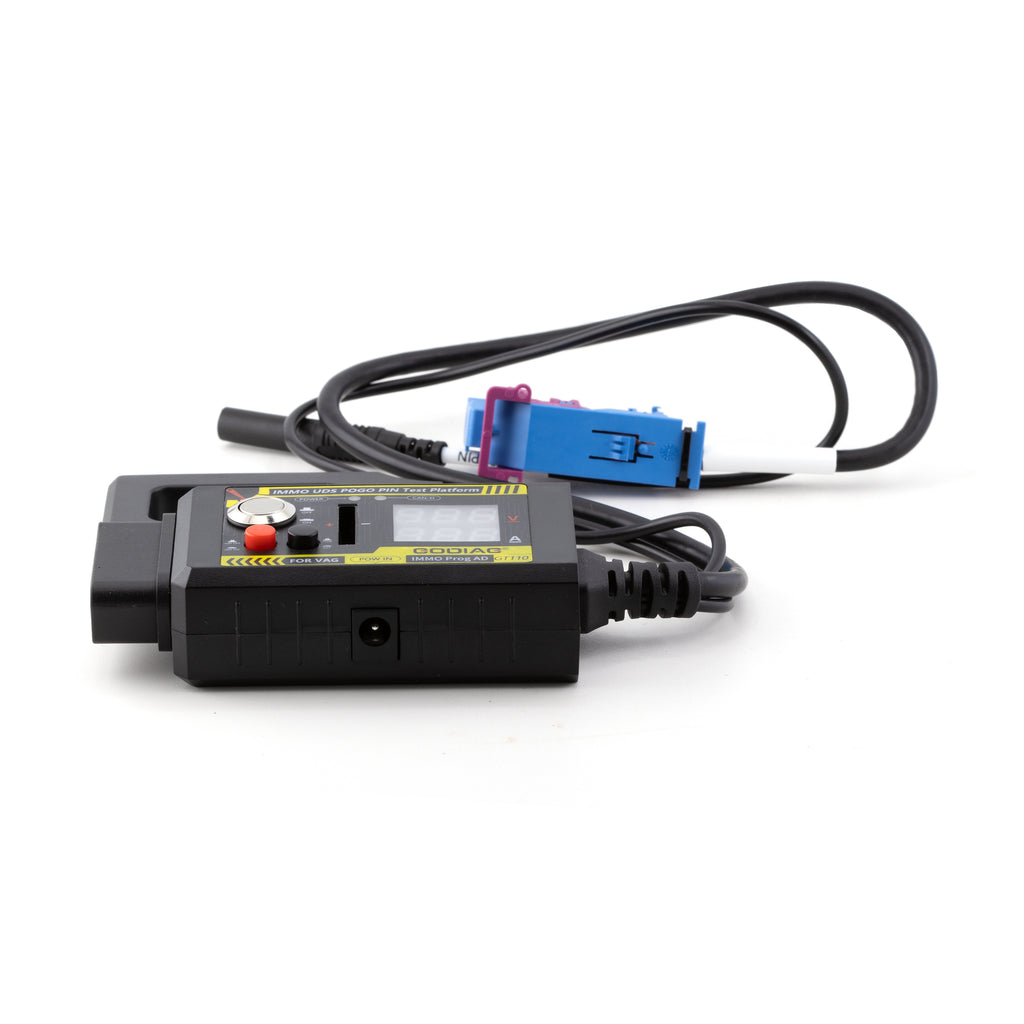

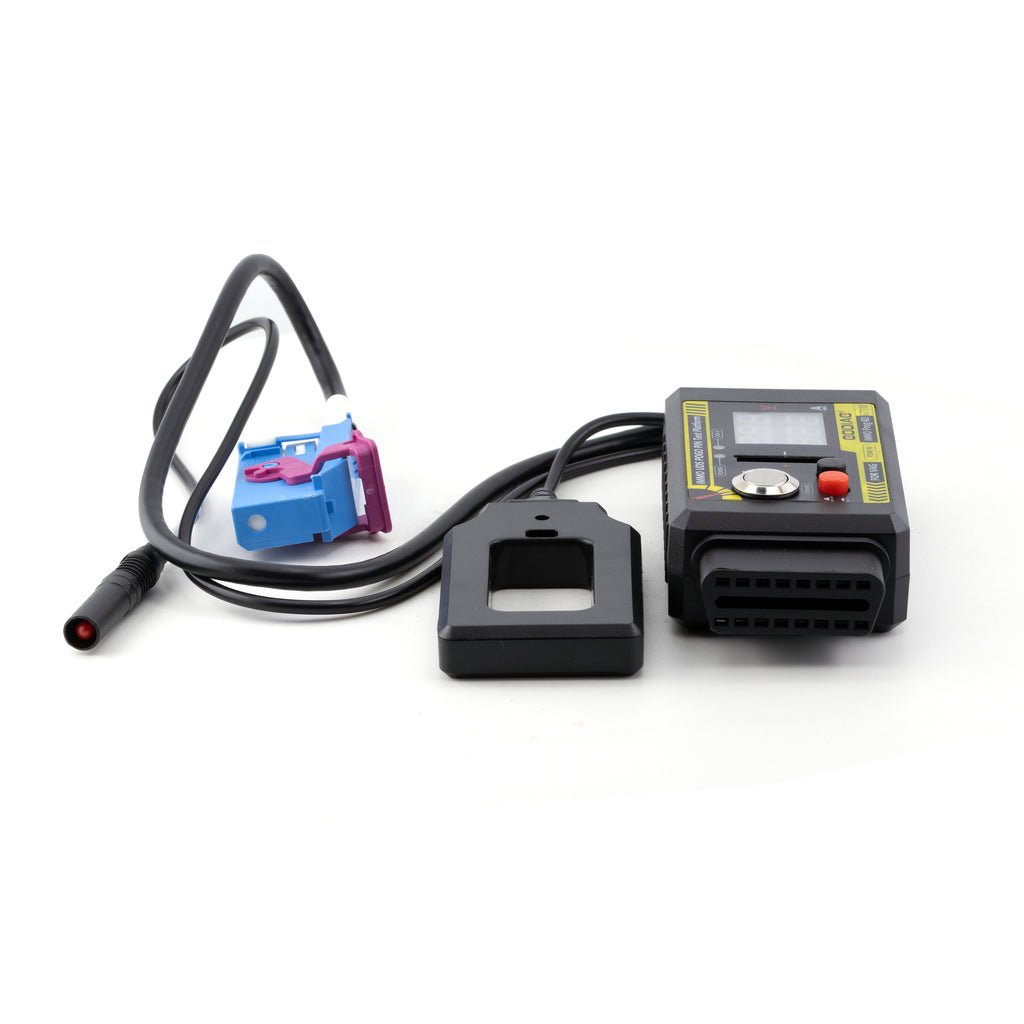

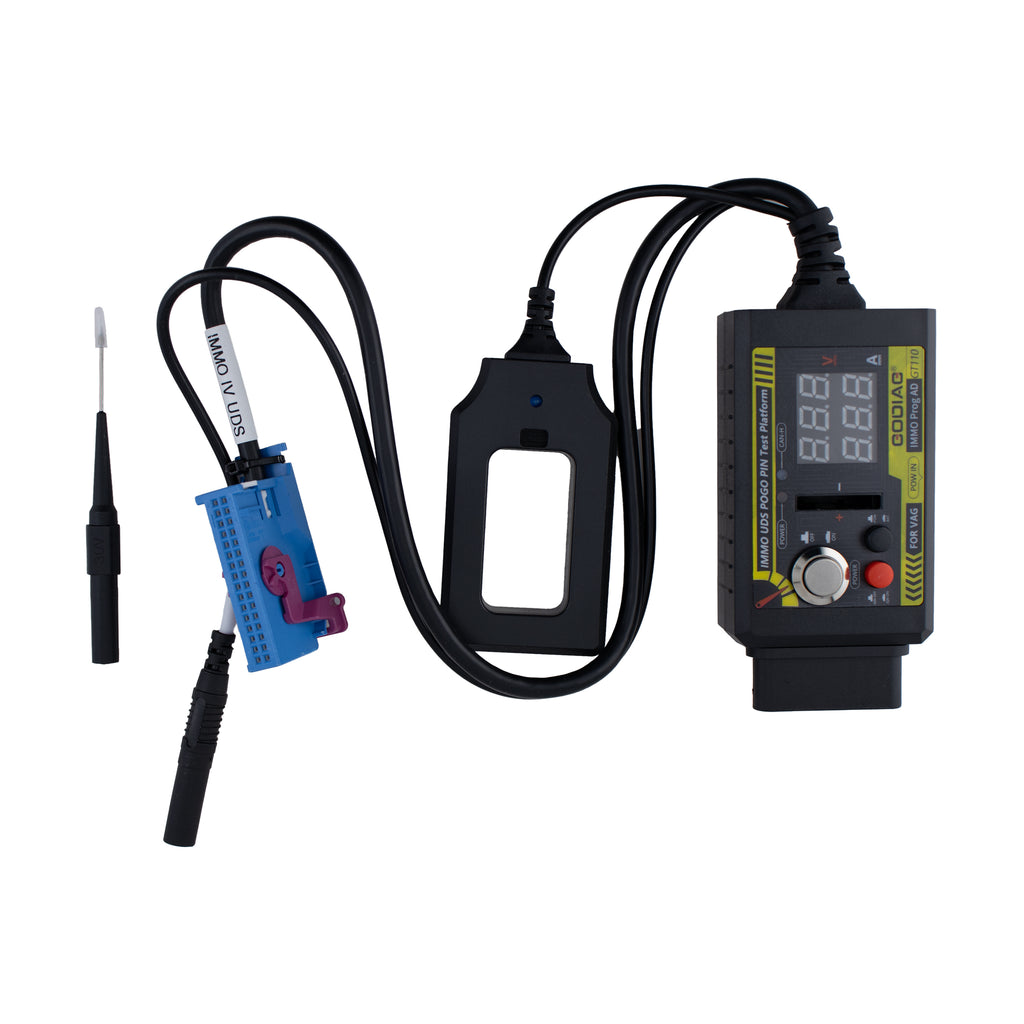

The GODIAG GT110 is a bench test platform designed for supported Volkswagen Group CAN-Bus UDS fourth-generation immobiliser instrument clusters.
The platform allows a supported dashboard to be powered and connected outside the vehicle through a standard OBD2 interface. The integrated POGO pin provides direct access to the instrument-cluster circuit board for applicable EEPROM and Flash data reading and writing procedures.
Integrated voltage and current displays allow the connected cluster’s power consumption to be monitored during testing. The simulated ignition switch, UDS communication indicator and key-induction area assist with dashboard diagnostics, key matching and synchronisation testing.
Product Features
- Supports selected VAG CAN-Bus UDS fourth-generation immobiliser systems
- Bench connection for supported instrument clusters
- POGO-pin connection for applicable dashboard data reading and writing
- Converts the instrument-cluster connection to standard OBD2
- Tests key-chip and instrument-cluster synchronisation
- Supports applicable immobiliser data reading and writing
- Assists with supported key-matching procedures
- Displays operating voltage and current
- Independent main power switch
- Simulated ignition switch
- CAN High UDS communication indicator
- Integrated key-induction area with indicator
- Tests CR2032 remote-key battery voltage
- Assists with locating a vehicle’s emergency-start key-sensing area
Supported Functions
Depending on the connected equipment and instrument-cluster type, the GT110 can assist with:
- Reading supported instrument EEPROM and Flash data
- Writing supported instrument data
- Adding keys
- Key and immobiliser synchronisation testing
- Offline instrument-cluster diagnostics
- Immobiliser data servicing
- Instrument-cluster communication testing
- Key-transponder recognition testing
- Supported instrument data and mileage procedures
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SK397
- Model: GT110
- Product Type: VAG UDS IMMO Bench Test Platform
- Supported Systems: CAN-Bus UDS fourth-generation immobiliser systems
- Tool Connection: Standard 16-pin OBD2
- Dashboard Connection: POGO pin
- Application: Dashboard diagnostics, data access and key matching
Vehicle Compatibility
Suitable for selected UDS instrument clusters used across:
- Volkswagen
- Audi
- Škoda
- SEAT
Compatibility is determined by the instrument-cluster type and immobiliser system rather than the vehicle model and year alone.
Compatible Equipment
Suitable for use with selected diagnostic and key-programming equipment, including:
- Xhorse VVDI2
- Xhorse VVDI Key Tool Plus
- Autel key-programming equipment
- OBDSTAR equipment
- Lonsdor equipment
- Zed-FULL
- AVDI
Available functions depend on the connected equipment, software version, instrument-cluster processor and immobiliser system.
Package Contents

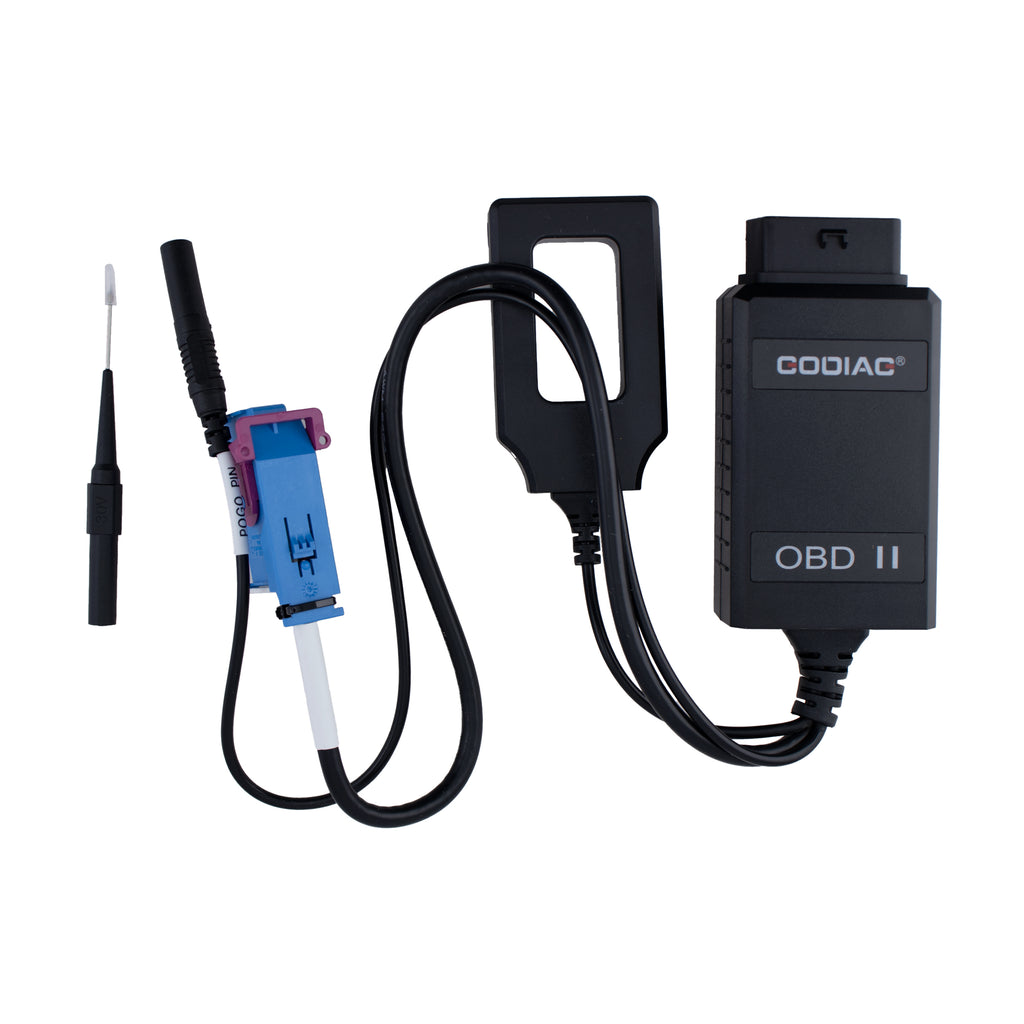

- 1 × GODIAG GT110 UDS IMMO Test Platform
- 1 × POGO pin probe
Diagnostic and key-programming equipment is not included unless otherwise stated.
