GODIAG GT114 Audi K-Line IMMO Test Cable – SF409

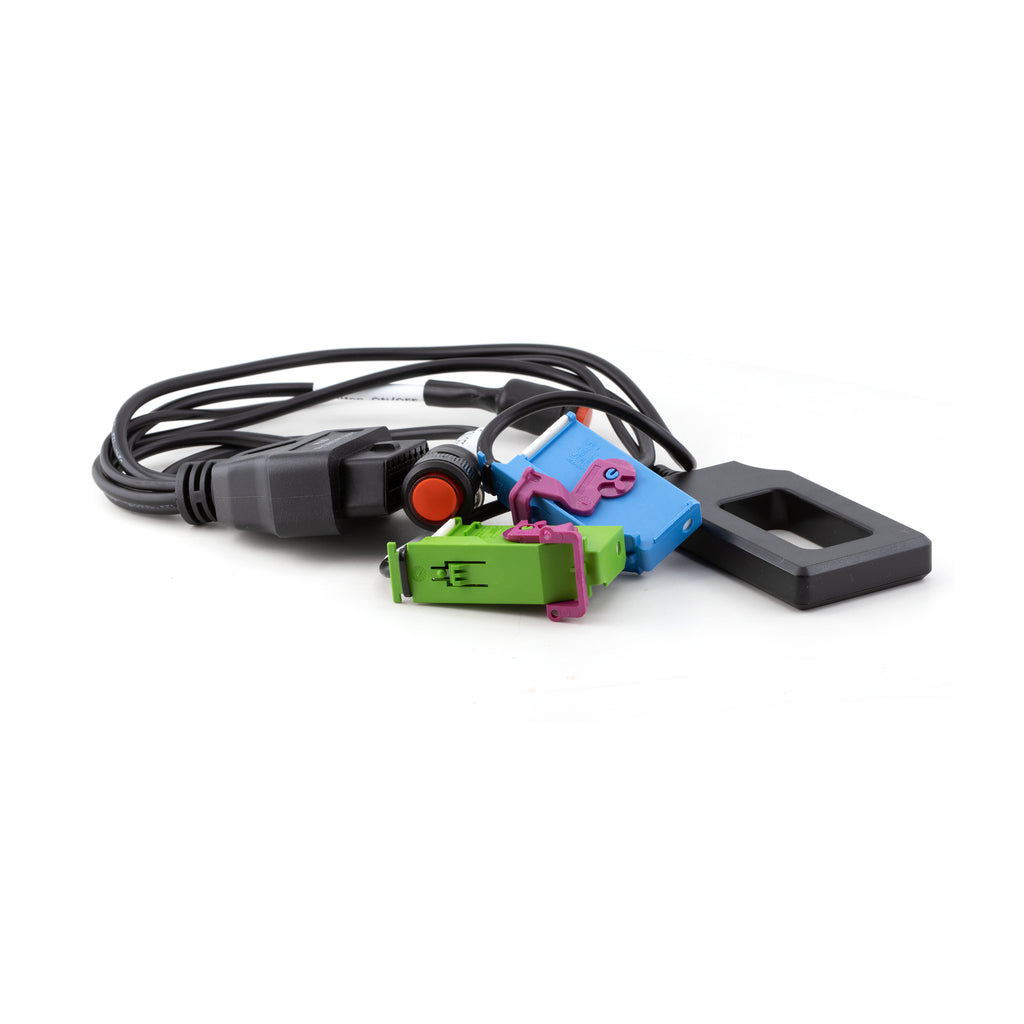

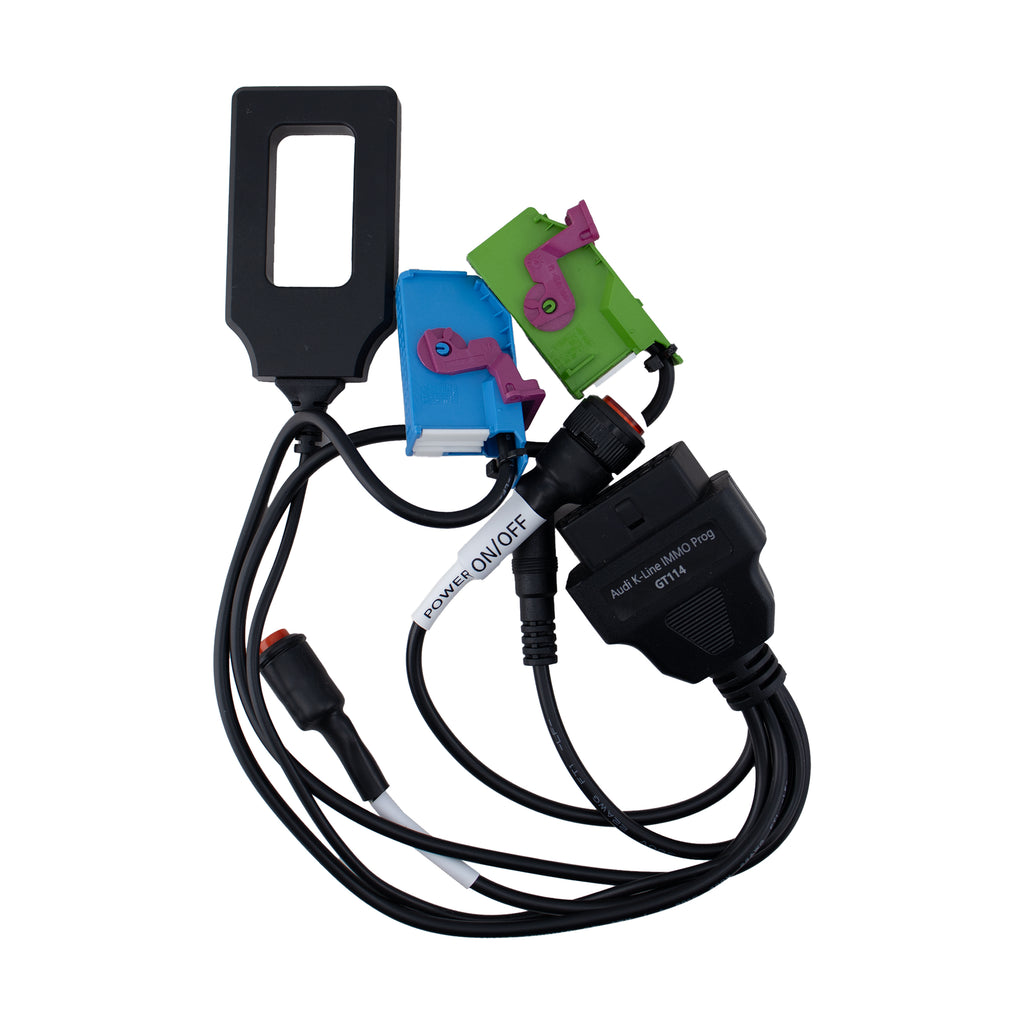

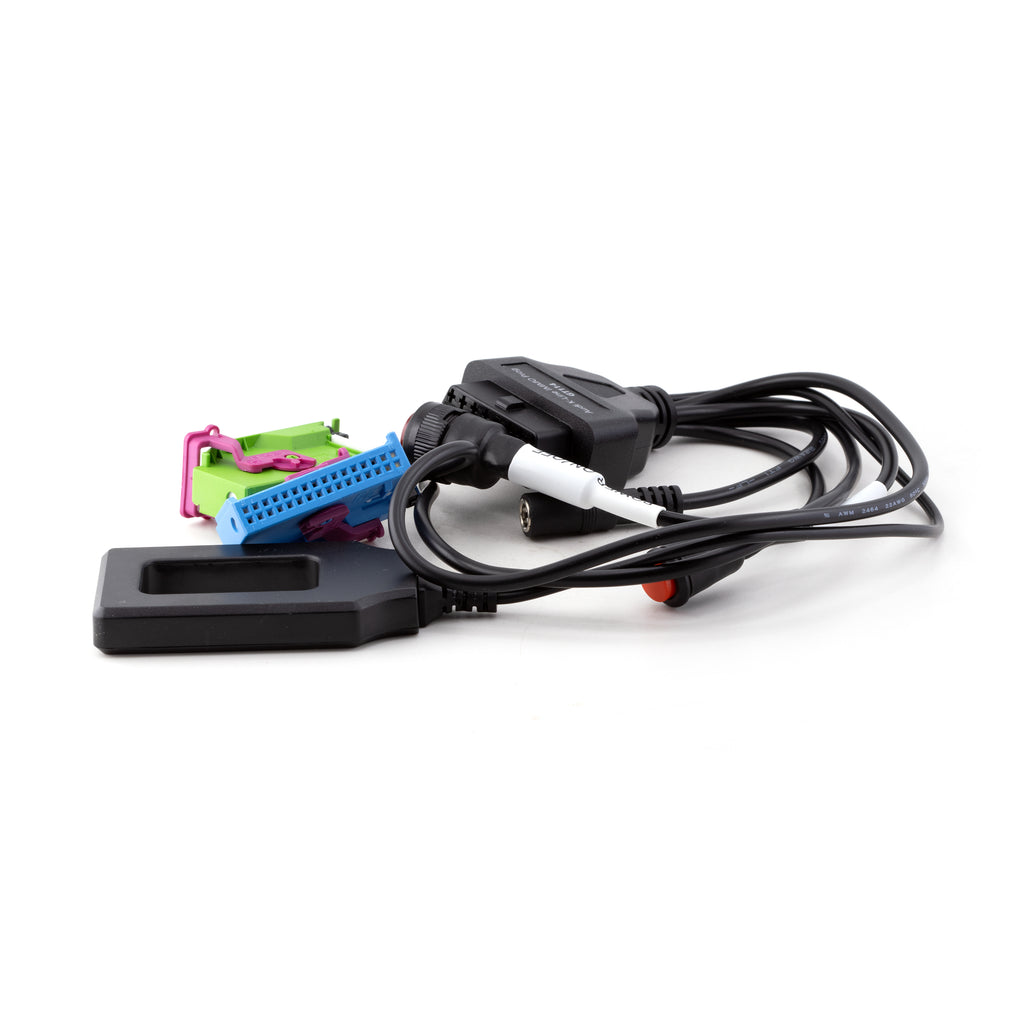

The GODIAG GT114 is a K-Line immobiliser and instrument-cluster test cable designed for supported Audi A6 C5 dashboards.
It allows the instrument cluster to be connected and powered outside the vehicle while converting the dashboard connection to a standard OBD2 interface. Compatible diagnostic and key-programming equipment can then communicate directly with the cluster for supported key matching, immobiliser data, diagnostic and instrument procedures.
Independent power and ignition switches provide greater control during bench testing, while the integrated key-induction area assists with checking communication between the transponder and instrument cluster.
Product Features
- Connects supported Audi instrument clusters on the bench
- Converts the dashboard connection to a standard OBD2 interface
- Supports key and instrument-cluster synchronisation testing
- Assists with supported key-matching procedures
- Supports applicable immobiliser data reading and writing
- Supports offline instrument-cluster diagnostics
- Can be used for supported instrument data and mileage procedures
- Independent power switch
- Independent ignition switch
- Integrated key-induction area with indicator light
- Useful for testing instrument and transponder operation before installation
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SF409
- Model: GT114
- Product Type: Audi K-Line IMMO and Dashboard Test Cable
- Communication: K-Line
- Tool Connection: Standard 16-pin OBD2
- Weight: Approximately 0.2 kg
Compatibility
Designed for selected:
- Audi A6 C5 – 2000 to 2006
- Second- and third-generation Audi immobiliser instrument systems
Confirm the instrument-cluster type and supported procedure before connection.
Compatible Equipment
Suitable for use with selected diagnostic and key-programming equipment, including:
- Xhorse VVDI2
- Xhorse Key Tool Plus
- Zed-FULL
- OBDSTAR equipment
- Lonsdor equipment
- Autel key-programming equipment
- AVDI
- VAG-COM / VCDS
- HEX-V2
- VAS 5053
- VAS 5054A
- VAS 6154
- Super VAG K+CAN
- Other compatible K-Line diagnostic and programming tools
Available functions depend on the connected equipment, software version and instrument-cluster system.
Important Information
Key matching on supported Audi A6 C5 systems requires a compatible Megamos ID48 transponder. Follow the instructions displayed by the connected programming equipment and ensure any required immobiliser data is written back correctly.
Package Contents
- 1 × GODIAG GT114 Audi K-Line IMMO Test Cable
