GODIAG GT107+ DSG Gearbox Data Adapter – SF411
The GODIAG GT107+ is a bench adapter designed for reading, writing, diagnosing, repairing and cloning supported transmission control modules.
It provides direct connections to compatible gearbox ECUs and monitors operating voltage, current draw and communication activity during bench procedures. Manual and automatic operating modes allow the adapter to work with a range of compatible ECU and TCU programming tools.
Product Features
- Supports supported gearbox ECU reading, writing and cloning
- Suitable for transmission diagnostics and module repair
- Displays operating voltage in real time
- Displays gearbox ECU current consumption
- CAN Bus and K-Line communication indicators
- Manual and automatic power-control modes
- Selectable 120Ω CAN termination resistance
- Detachable gold-plated DB9 connection
- Supports custom bench connections
- Powered directly from a suitable 12V vehicle battery
- Includes a universal gearbox conversion jumper and test probe
Supported Transmission Modules
Supports selected transmission control units, including:
- DQ200
- DQ200 G2
- DQ250
- DQ250 MQB
- DQ380
- DQ381
- DQ500
- DL501
- VL300
- VL381
- Selected Mercedes-Benz transmission modules
- Selected BMW transmission modules
Module coverage depends on the connected programmer, software and selected protocol.
Compatible Software and Equipment
Suitable for use with selected equipment and software, including:
- Xhorse Multi-Prog with the required converter cable

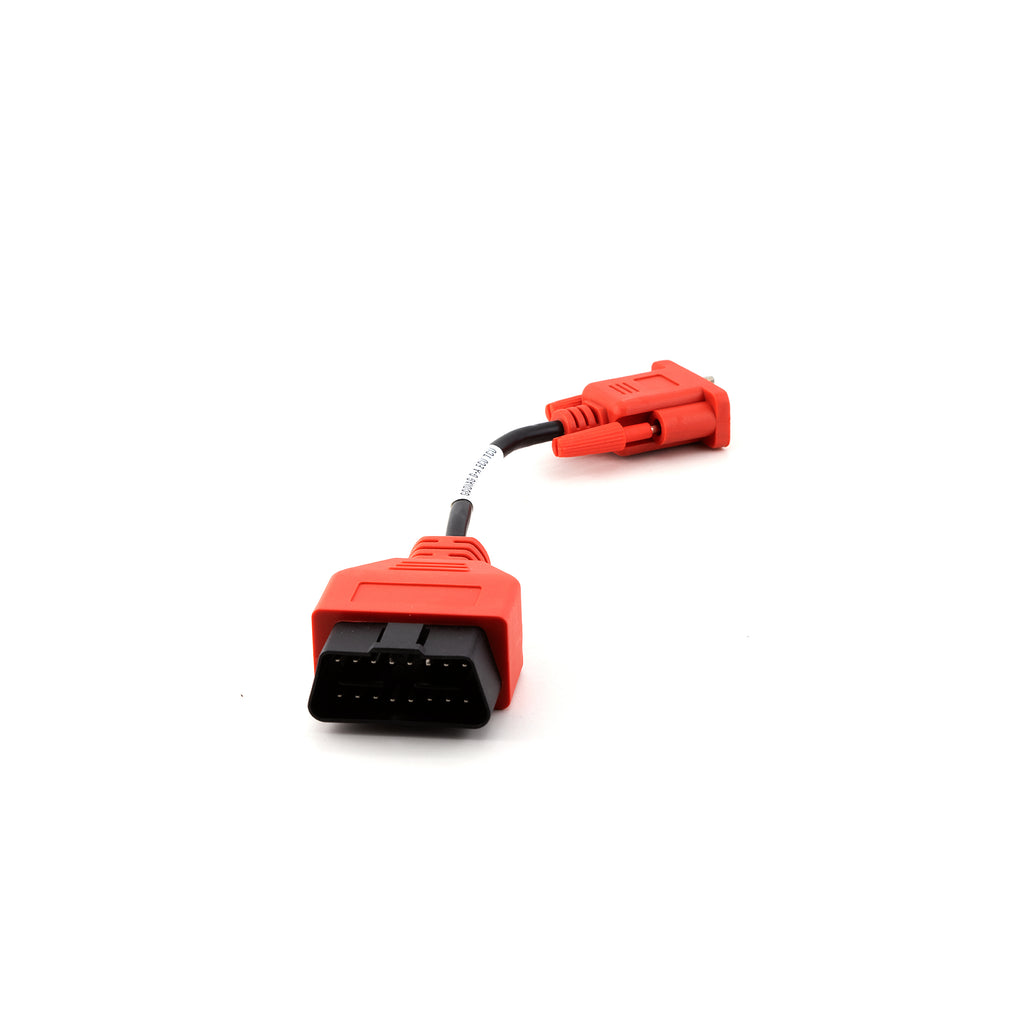

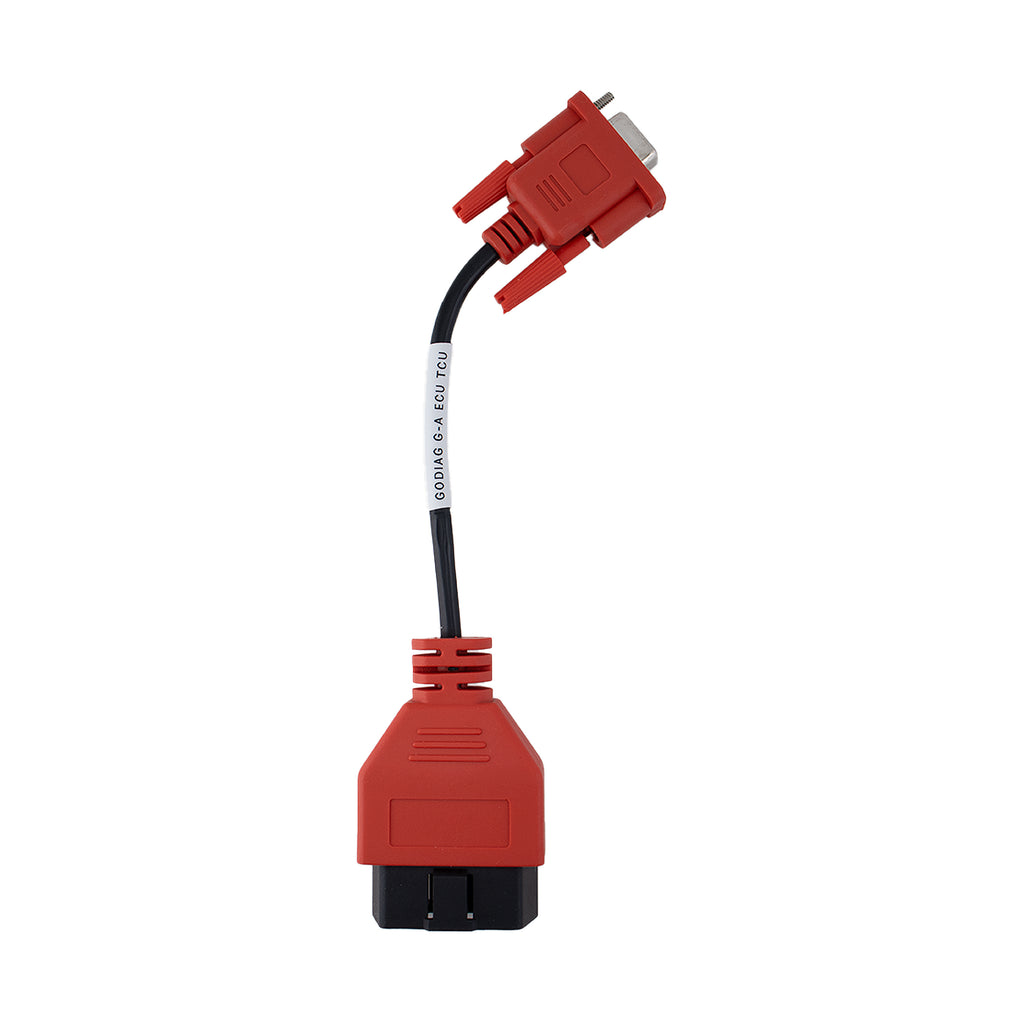

- Autel IM508 and IM608 series with the required G-A ECU/TCU cable
- Other compatible ECU and TCU programming equipment
The required connection cable may vary depending on the programmer being used.
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SF411
- Model: GT107+
- Product Type: Gearbox ECU Data and Bench Programming Adapter
- Communication: CAN Bus and K-Line
- Power Supply: 12V DC
- CAN Termination: Selectable 120Ω resistance
- Connection Interface: DB9
- Application: TCU diagnostics, reading, writing, repair and cloning
Package Contents
- 1 × GODIAG GT107+ DSG Gearbox Data Adapter
- 1 × DB9 universal gearbox conversion jumper
- 1 × Power cable with battery clamps
- 1 × Test probe
- 1 × User manual
Programming equipment and programmer-specific converter cables are not included unless otherwise stated.
Confirm the required pinout, protocol and operating mode through the connected programming software before applying power to the module.
