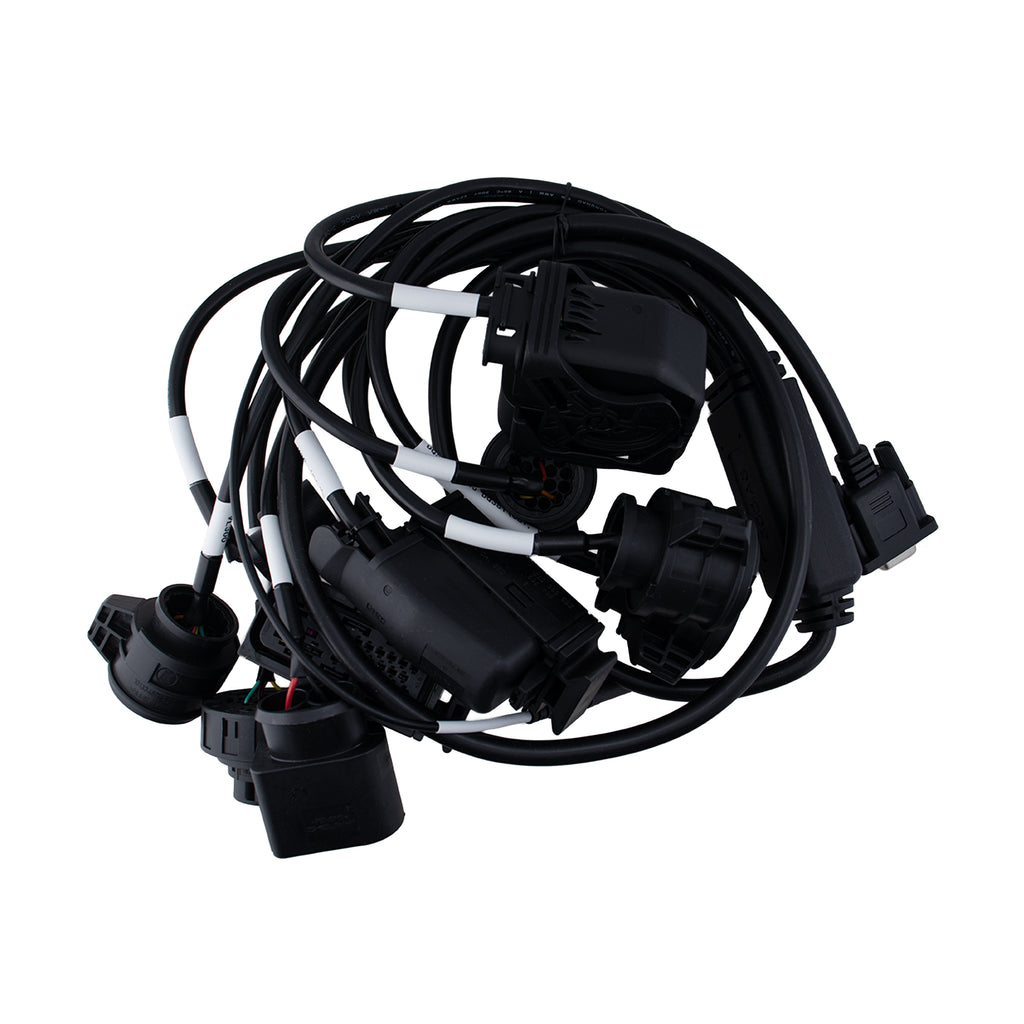

GODIAG SF419 9-in-1 VAG Gearbox Bench Cable Set
The GODIAG SF419 is a gearbox bench cable and adaptor set designed for direct connection to supported Volkswagen Group transmission control modules.
It provides a secure and convenient connection for transmission module diagnostics, data reading and writing, cloning and other supported bench procedures. The included OBD-II bench adaptor allows the cable set to connect with a range of compatible programming and diagnostic tools.
The SF419 expands on the earlier GODIAG SF380 set by adding support for DQ400E and DL382 transmissions, along with additional connection options for equipment such as the Autel G-BOX, Xhorse Multi-Prog and GODIAG GT107+.
Product Features
- Direct bench connection to supported VAG transmission modules
- Supports diagnostics, data reading, writing and cloning
- Includes connections for DQ400E and DL382 modules

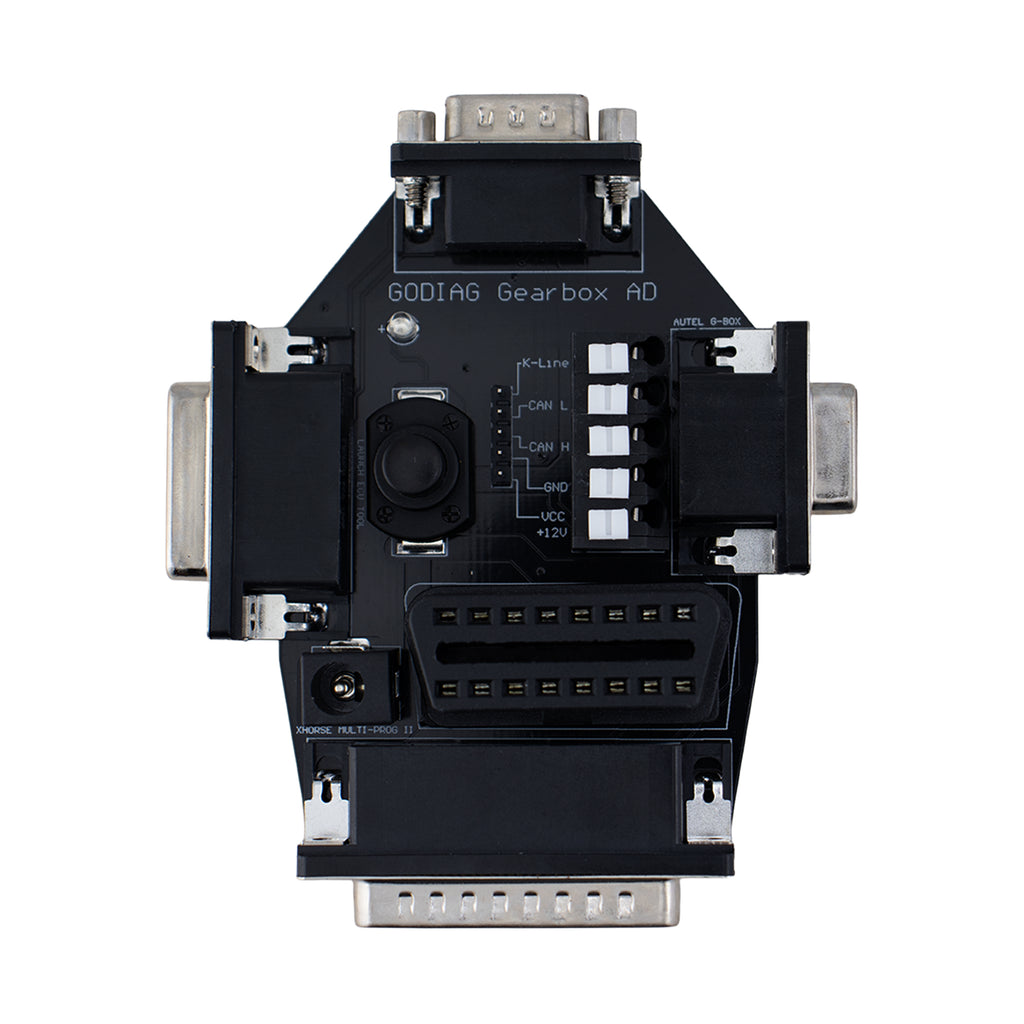

- OBD-II bench adaptor for connection to compatible equipment
- Supports CAN bus and K-Line connections
- Can be used with the GODIAG GT107+ for supported PCMFlash procedures
- Includes a DIY OBD-II connection for custom bench configurations
- Colour-coded and labelled connectors for easy identification
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SF419
- Alternative SKU: HKSF419
- Product Type: Gearbox Bench Cable and Adaptor Set
- Vehicle Group: Volkswagen, Audi, Škoda and SEAT
- Connection Type: OBD-II Bench / Direct TCM Connection
- Package Weight: Approximately 0.9 kg
Supported Transmission Modules
- V30
- DQ200
- DL501
- VL300
- VL381
- DQ500
- DQ250
- DQ380
- DQ381
- DQ400E
- DL382
Compatible Equipment
Suitable for use with selected equipment, including:
- Xhorse Multi-Prog
- Xhorse Key Tool Plus
- Autel G-BOX
- GODIAG GT107+
- Other compatible OBD-II bench programming and diagnostic equipment
Available functions depend on the connected programming tool, software, protocol and transmission module.
