GODIAG SK195-B BMW EWS4.3/EWS4.4 2L86D Clip Adapter

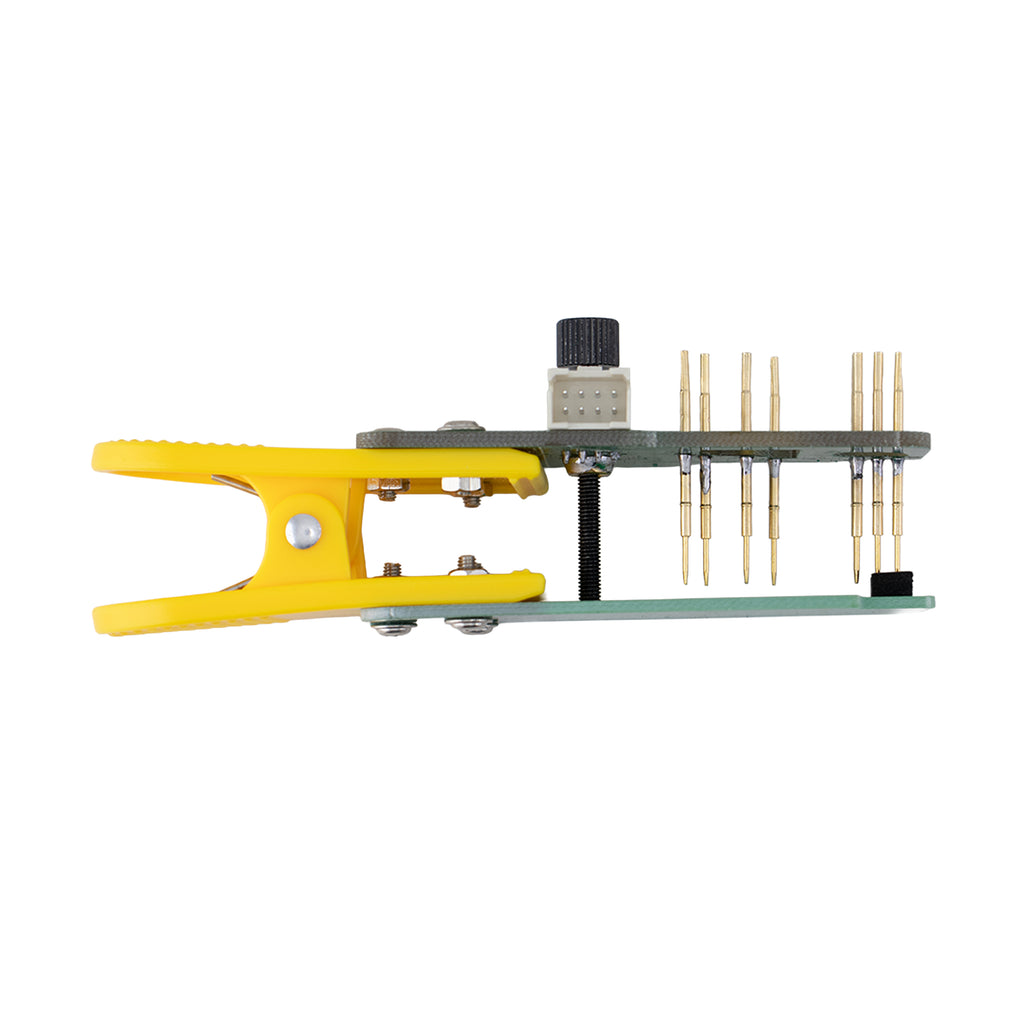

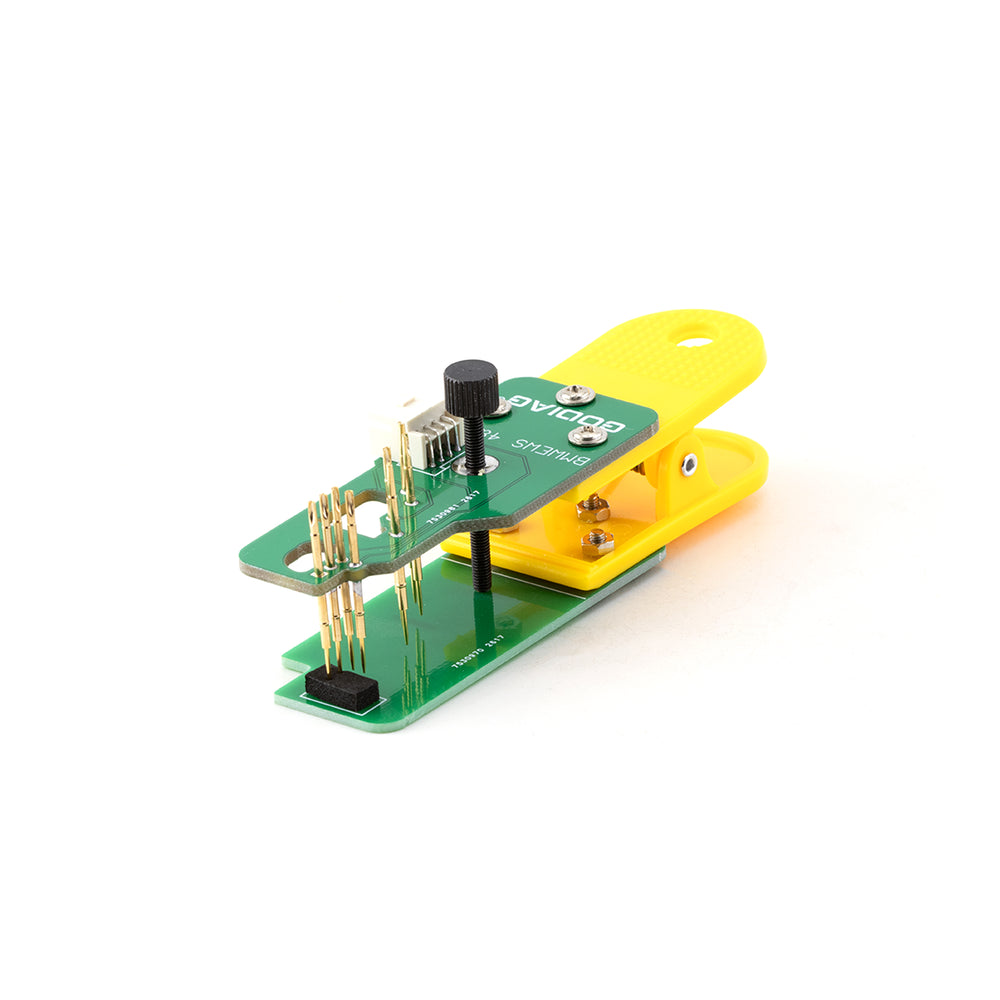

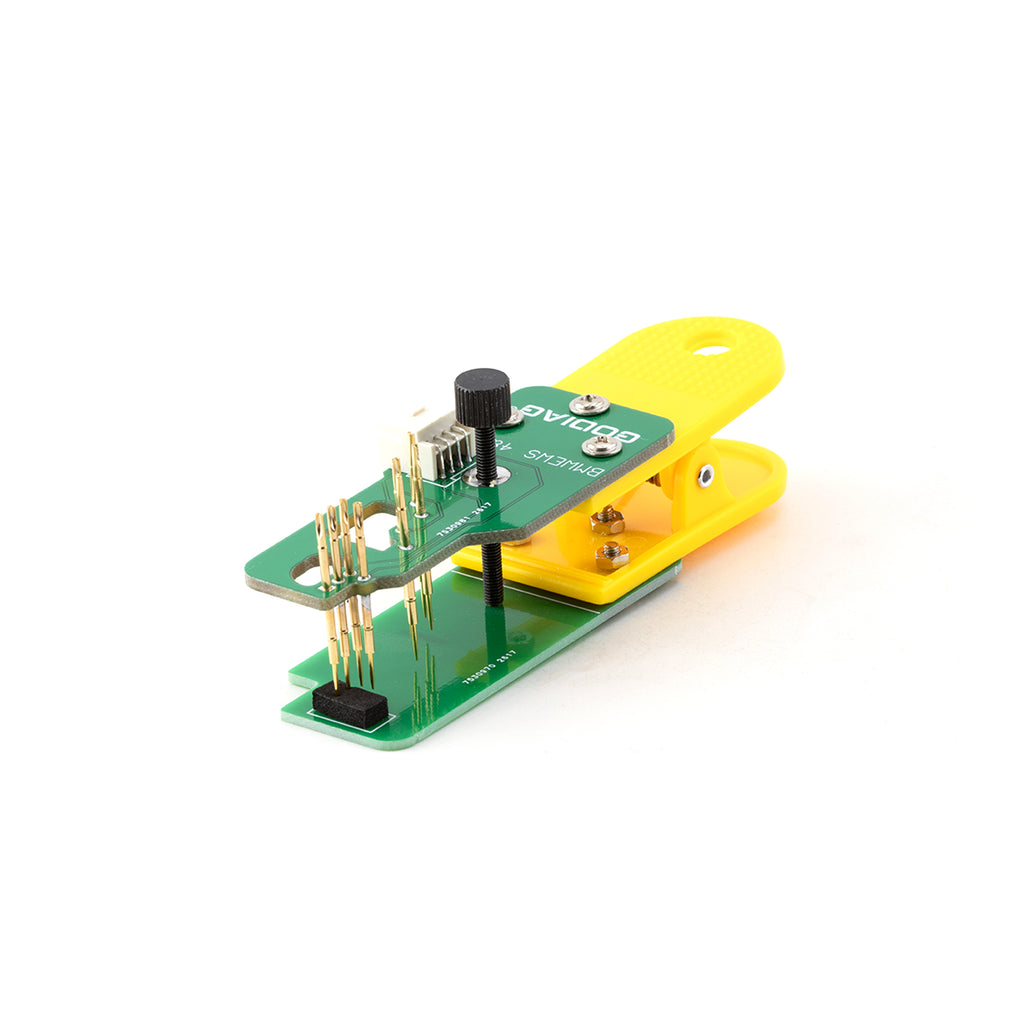

The GODIAG SK195-B is a clip adapter designed for reading and writing data from supported BMW EWS4.3 and EWS4.4 immobiliser modules equipped with the Motorola MC9S12 2L86D processor.
The clip connects directly to the EWS circuit board, eliminating the need to solder individual wires during supported reading and writing procedures. It can be used with compatible XPROG-M, AK90 and R270 programmers for accessing EEPROM and Flash data.
Product Features
- Supports BMW EWS4.3 and EWS4.4 immobiliser modules
- Designed for MC9S12 processors with the 2L86D mask
- Reads and writes supported EWS data
- Direct clip connection to the circuit board
- No individual wire soldering required
- Includes connections for XPROG-M, AK90 and R270 programmers
- Supplied with a board holder and replacement probes
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SK195-B
- Product Type: BMW EWS Data Reading and Writing Clip Adapter
- Supported Modules: BMW EWS4.3 and EWS4.4
- Supported Processor: Motorola MC9S12
- Processor Mask: 2L86D
- Weight: Approximately 90g
Compatible Equipment
XPROG-M
- Connect using the supplied adapter
- Select the MC9S12-EEPROM-secured family under the MCU/MPU menu
- The additional small circuit board is not required for reading
AK90
- Connect using the supplied small circuit board
- Select 2L86D within the AK90 software
R270
- Connect using the supplied longer cable
- Select 2L86D within the software
- Supports applicable EEPROM and Flash reading procedures
Preparation
Before connecting the clip, remove the protective adhesive or coating from the required contact points on the rear of the EWS circuit board. Ensure the contacts are clean and the clip probes are correctly aligned before attempting to read or write data.
Always create and verify a complete backup of the original EWS data before making changes.
Package Contents
- 1 × BMW EWS4.3/EWS4.4 2L86D clip

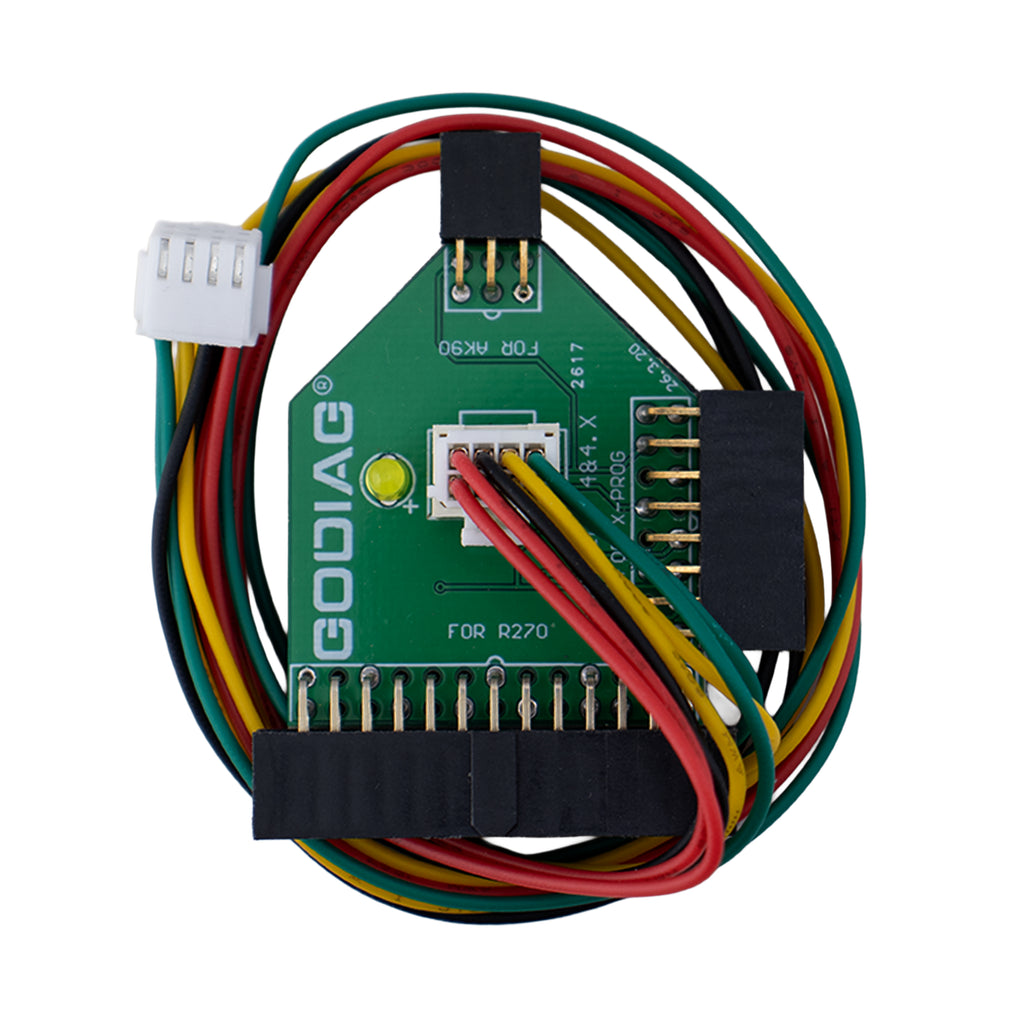

- 1 × Programmer adapter
- 1 × Ribbon cable
- 1 × Circuit-board holder
- 3 × Replacement probes
The XPROG-M, AK90 and R270 programmers are not included.
