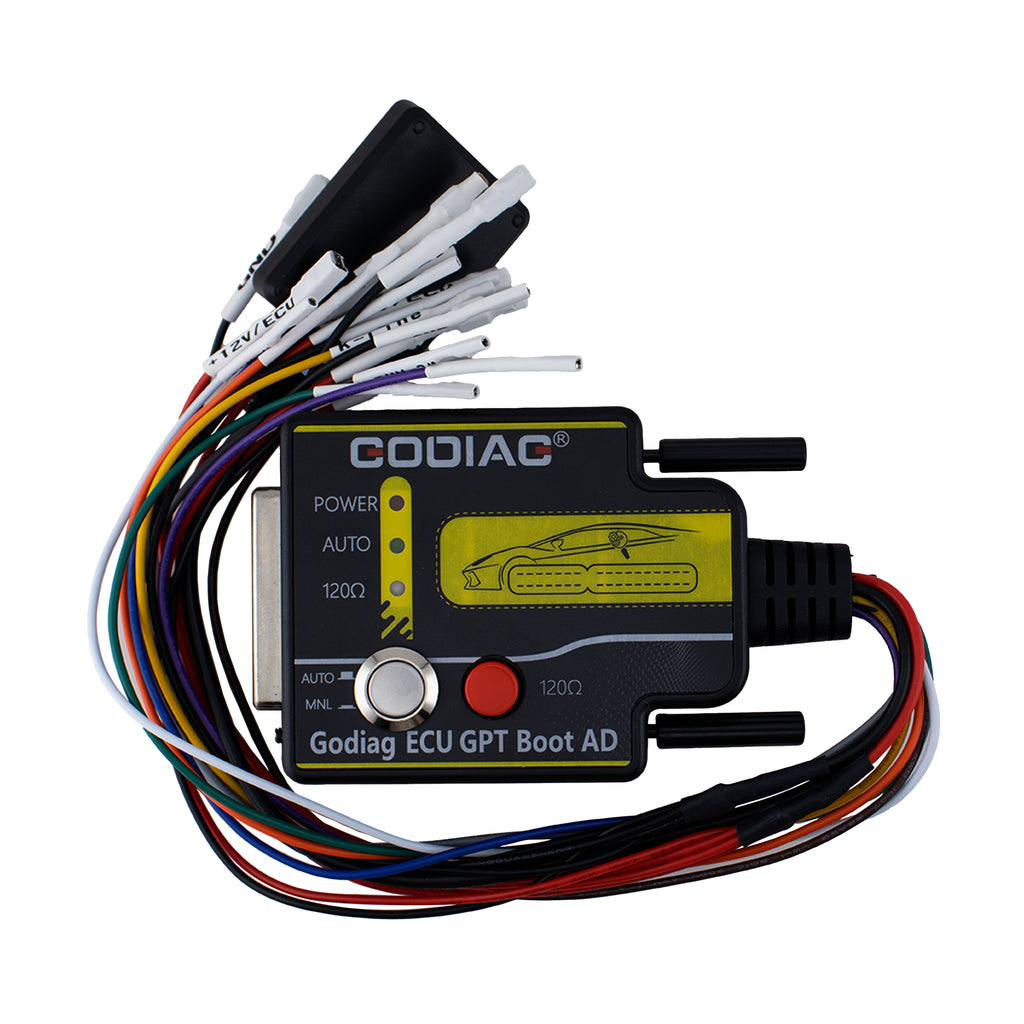

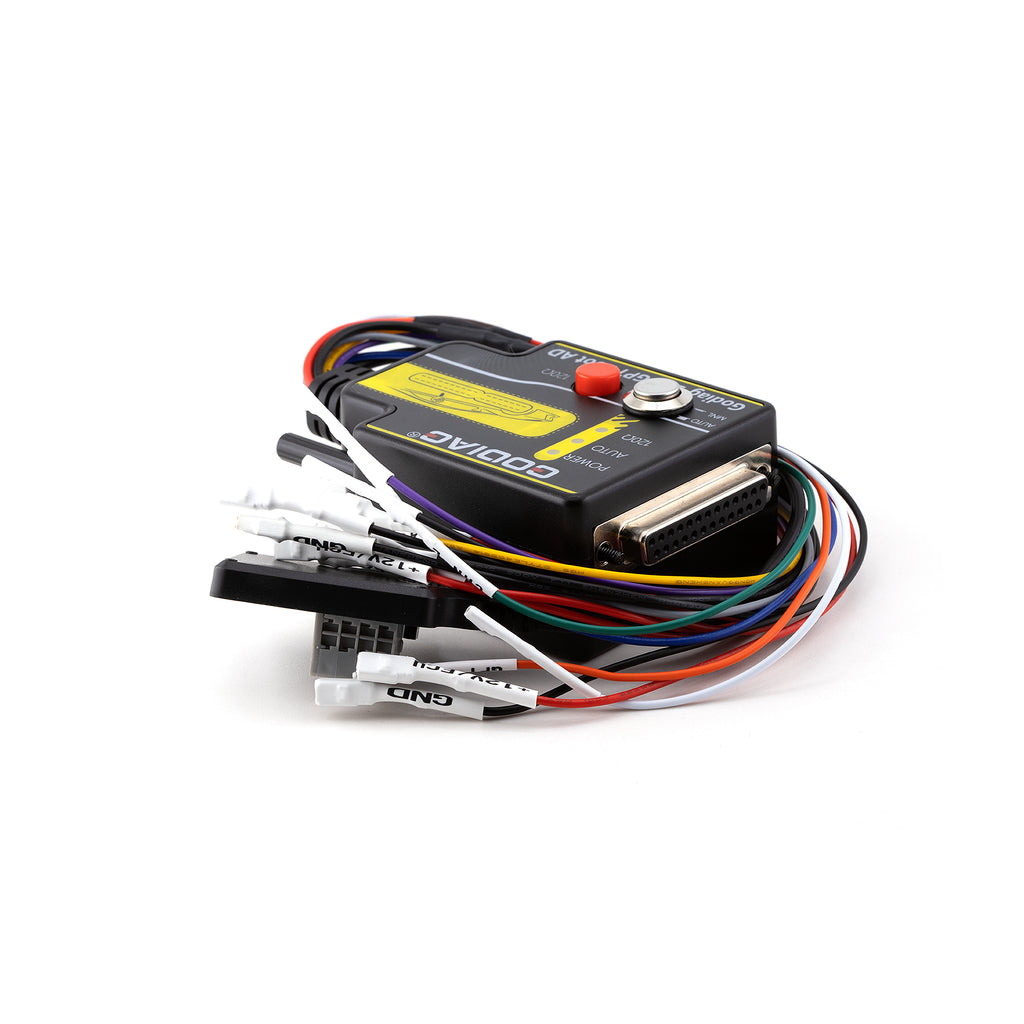

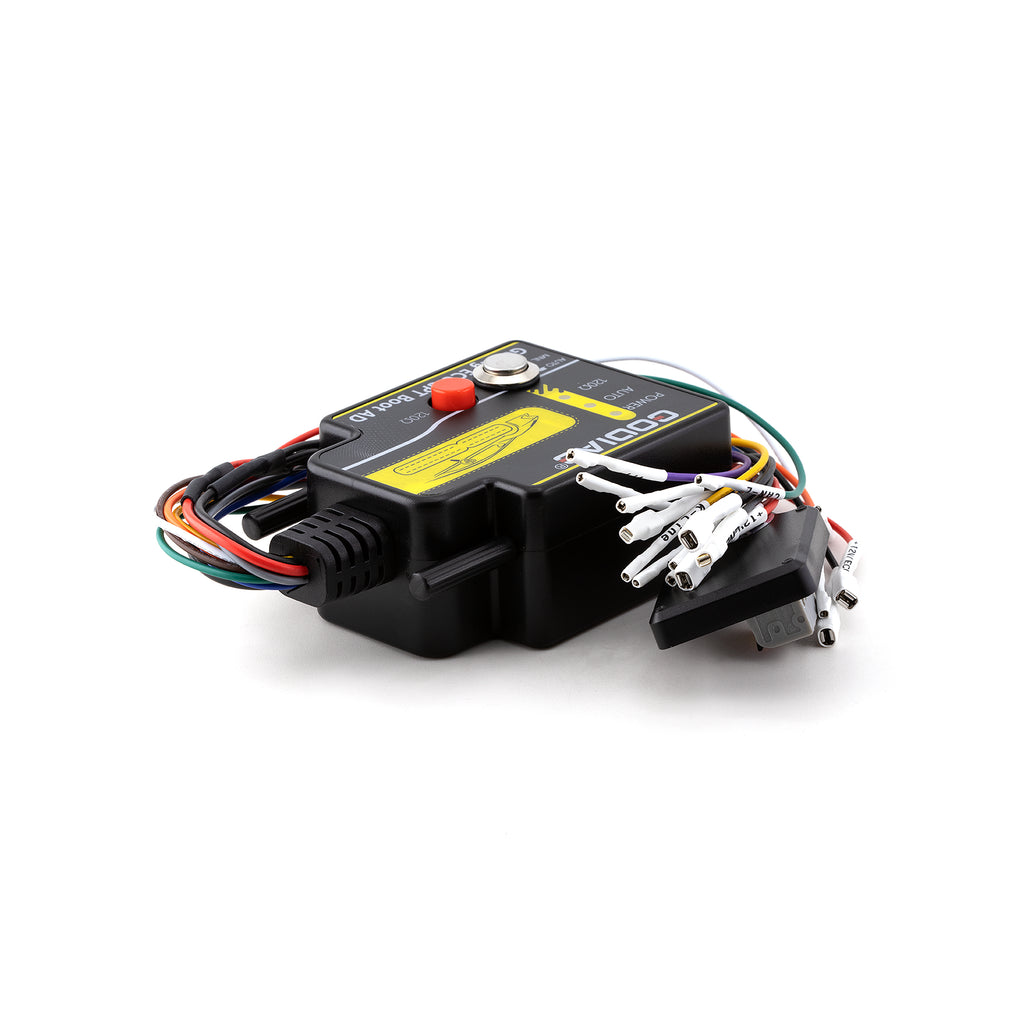

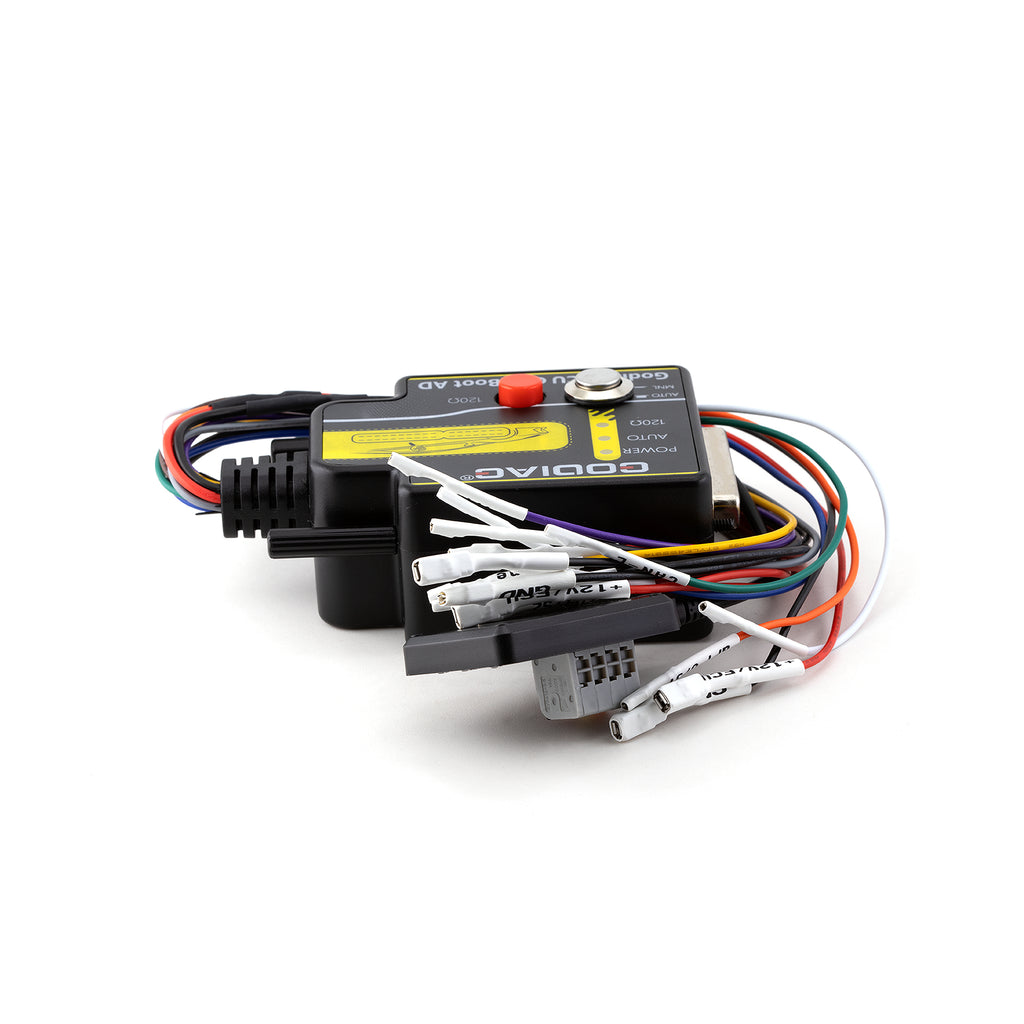

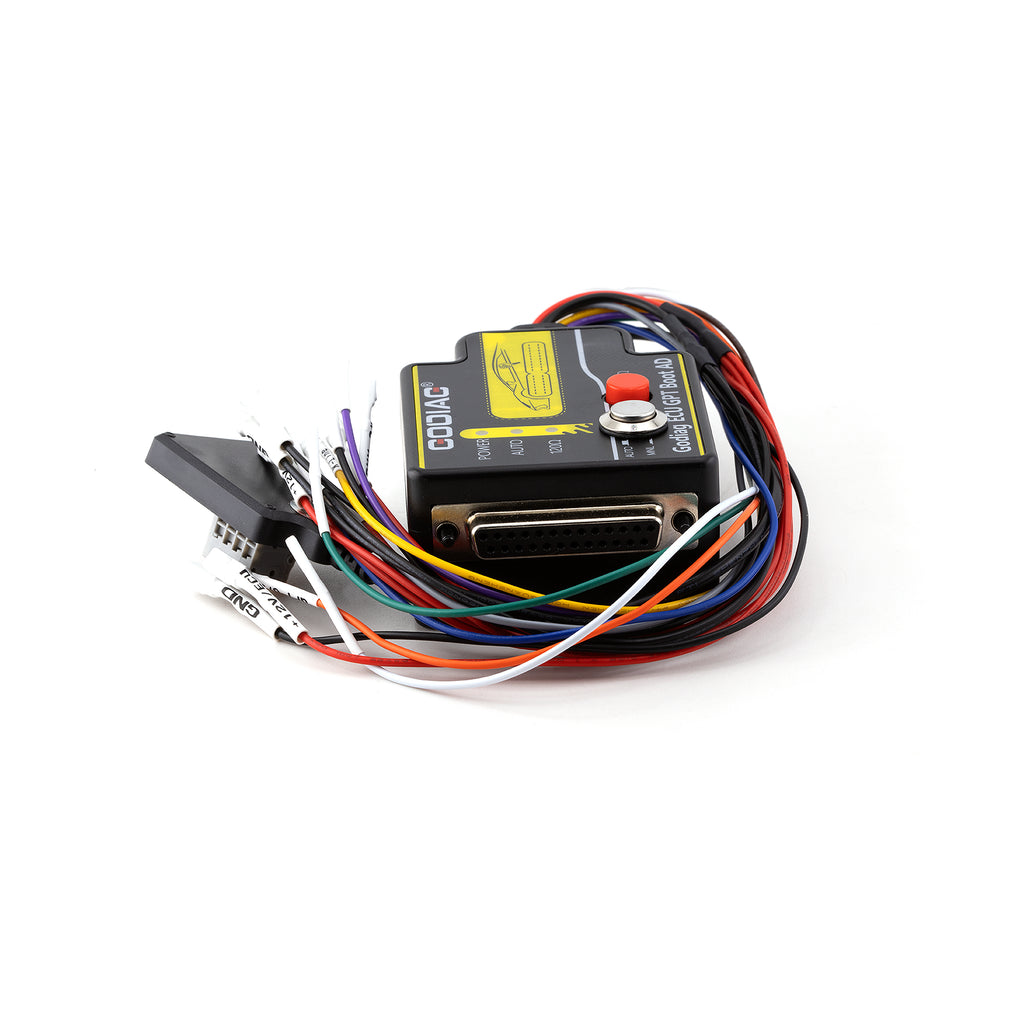

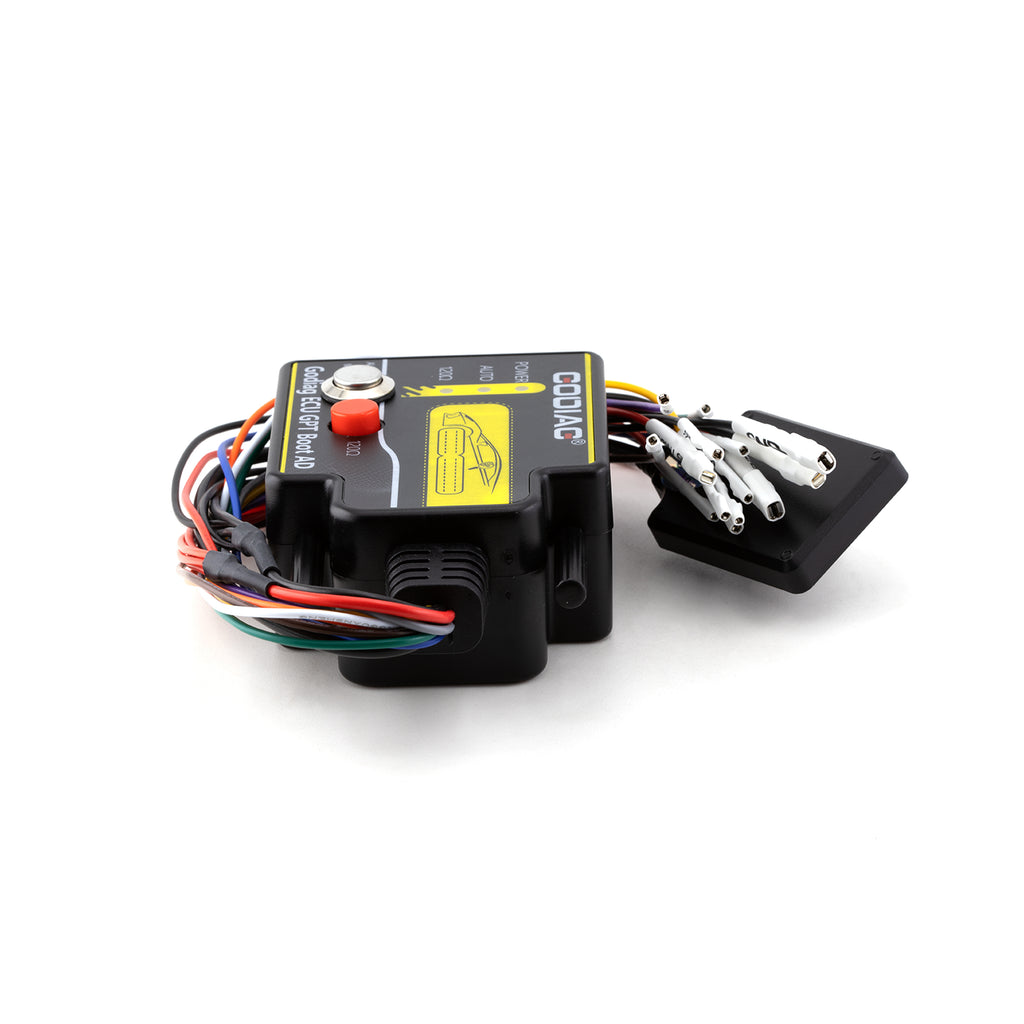

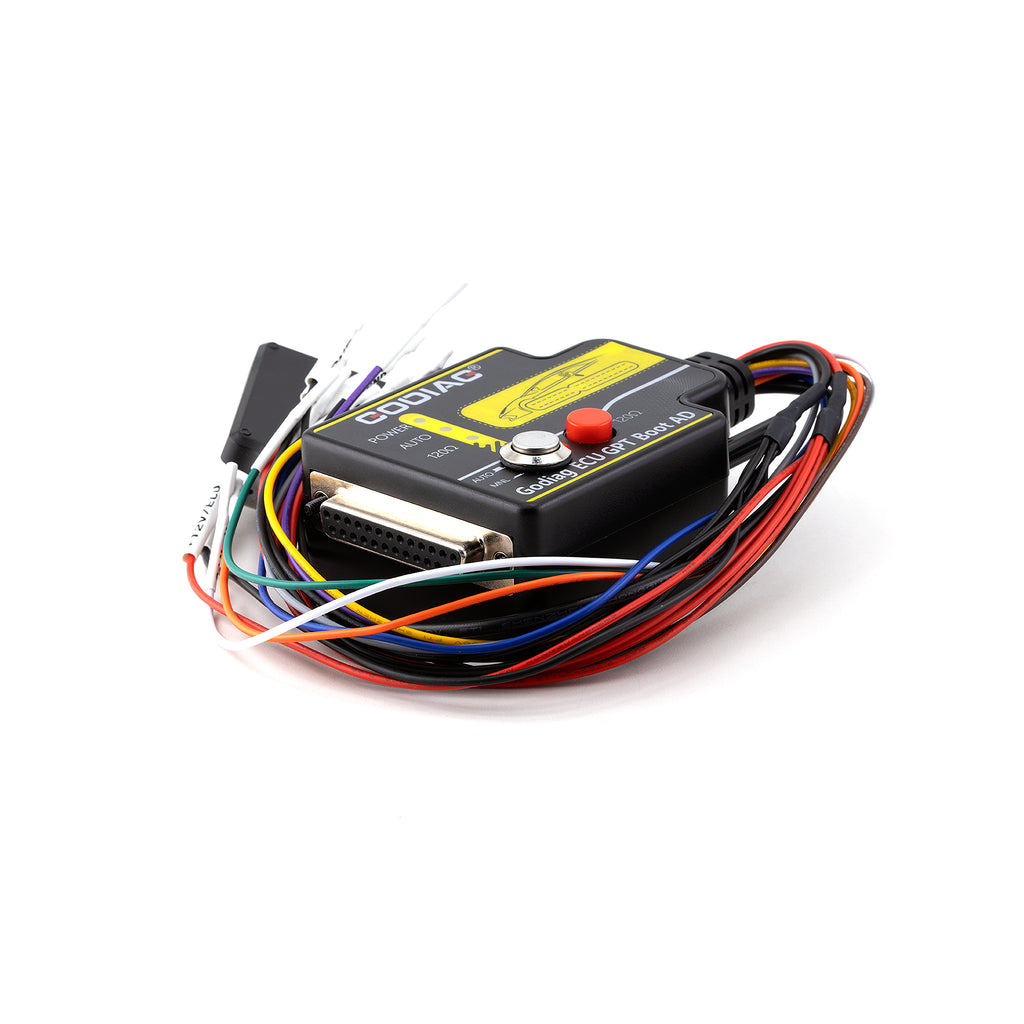

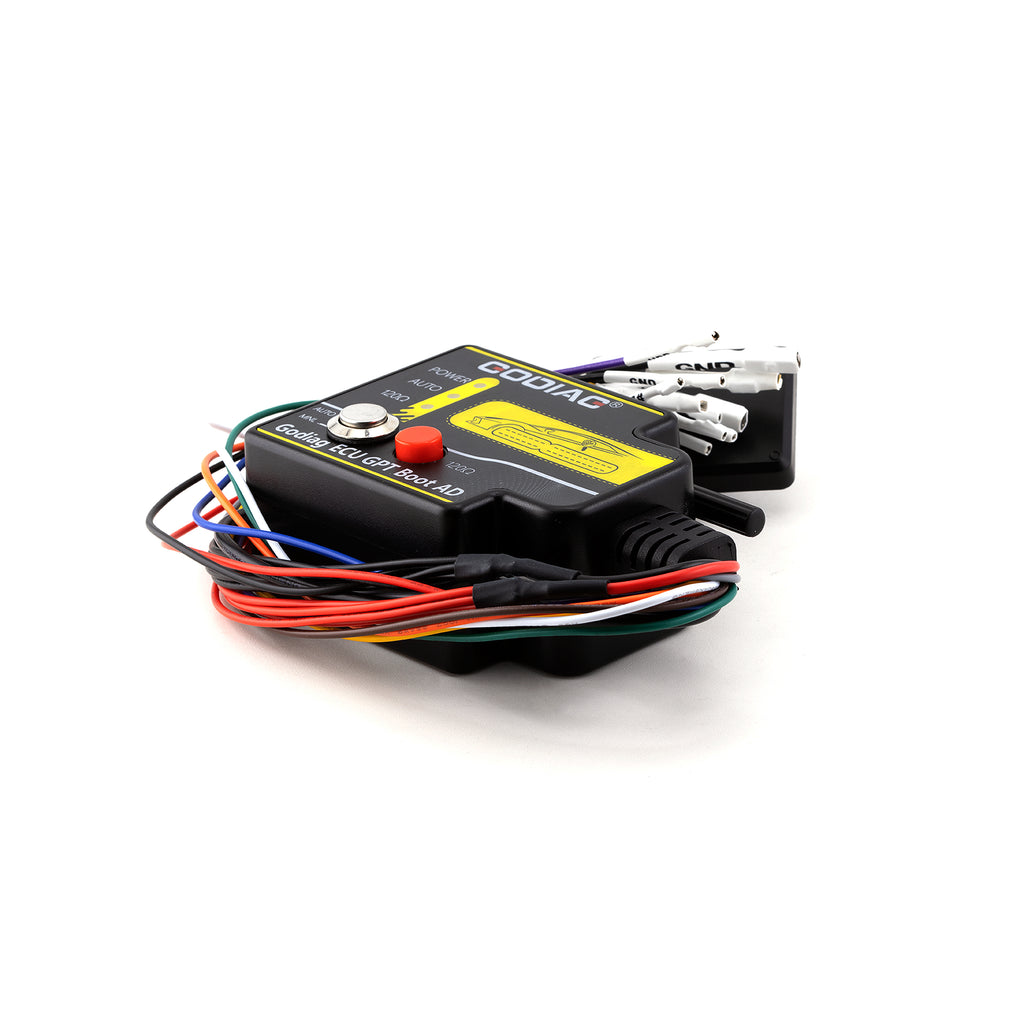

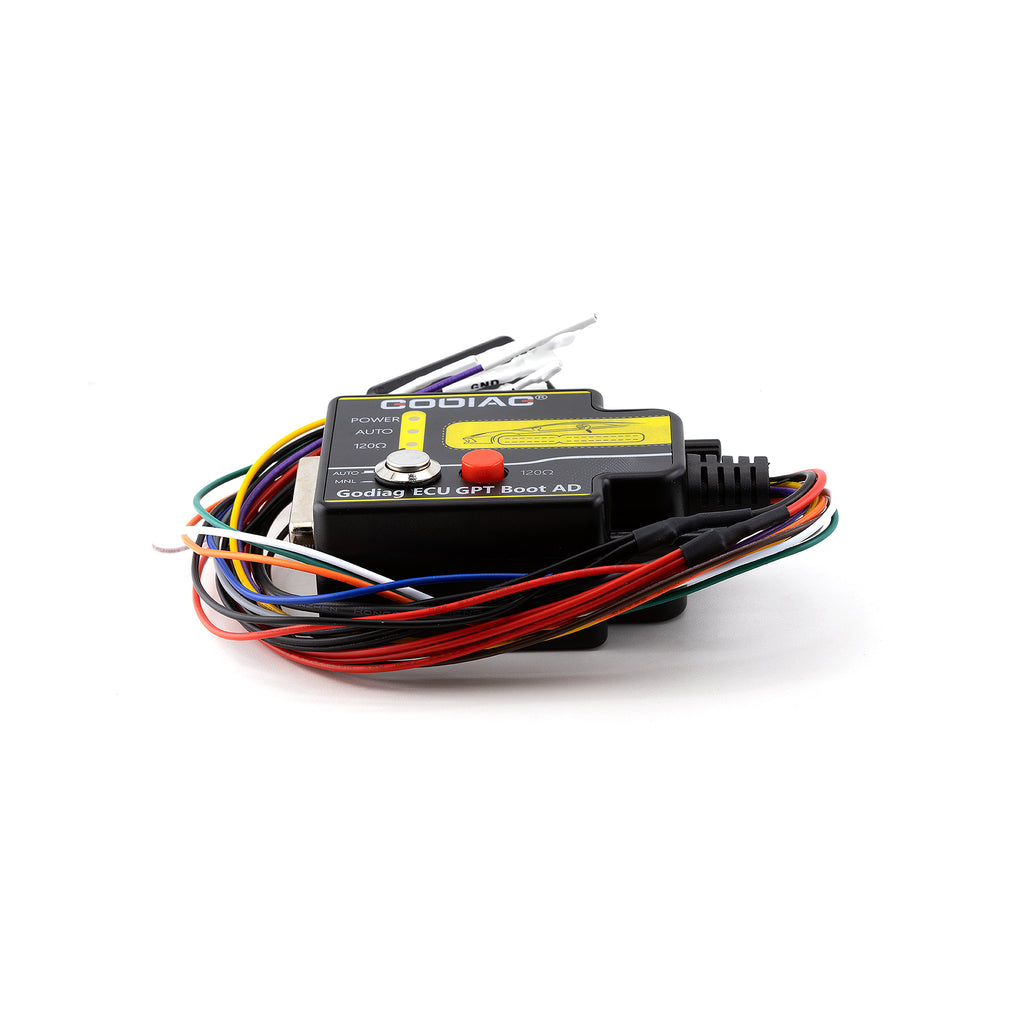

GODIAG SO676 ECU GPT Boot AD Programming Adapter
The GODIAG SO676 ECU GPT Boot AD Programming Adapter provides a convenient connection between supported ECU programming equipment and engine control units for bench and boot-mode reading and writing.
It supports OBD2 Bench and GPT Bench connections, allowing compatible ECUs to be accessed without opening the control unit. For ECUs that require direct boot-mode access, the adaptor also provides dedicated BOOT, CNF, GPT, voltage and ground connections.
Clearly labelled silicone leads simplify ECU pinout connections, while the manual ignition switch allows the ECU power supply to be controlled during programming. The selectable 120Ω CAN resistance switch can be enabled when required by the ECU communication setup.
Product Features
- Supports ECU reading and writing through OBD2 Bench
- Supports GPT Bench connections for compatible ECUs
- Supports direct Boot-mode ECU connections
- Dedicated ECU connection terminals
- Manual ignition power control
- Supports automatic ignition control with compatible PCMFlash setups
- Selectable 120Ω CAN bus termination resistance
- Clearly labelled flexible silicone connection leads

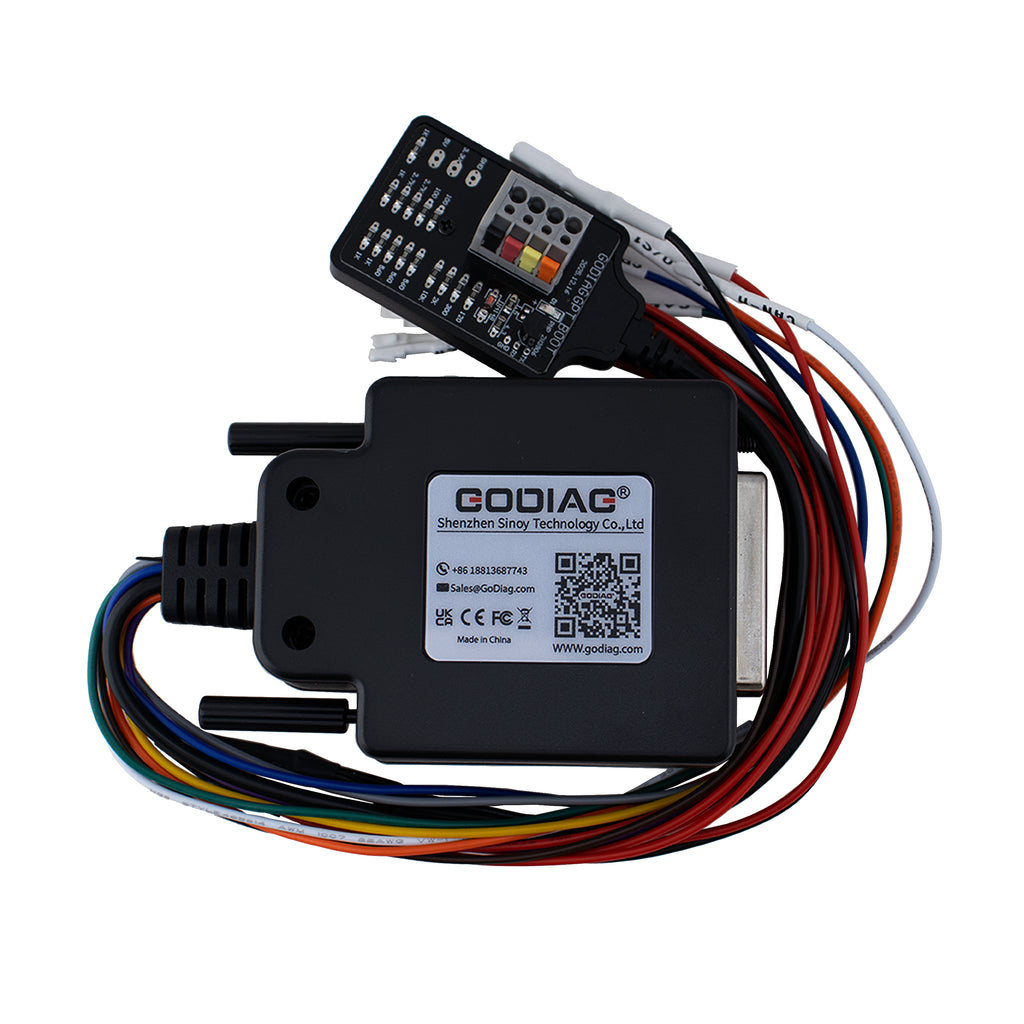

- BOOT resistance board cable helps protect the ECU during connection
- Suitable for use with ECU pinout diagrams from supported programming software
Connection Points
- RESET
- BOOT
- CNF1
- GPT1
- GPT2
- 5V
- 3.3V
- VPP
- GND
Specifications
- Manufacturer: GODIAG
- Manufacturer Part Number: SO676
- Product Type: ECU GPT Bench and Boot Programming Adaptor
- Connection: OBD2 to DB25
- Programming Methods: OBD2 Bench, GPT Bench and Boot Mode
- CAN Termination: Selectable 120Ω resistance
- Package Weight: Approximately 0.3 kg
Compatible Equipment
Suitable for use with selected ECU programming equipment and J2534 interfaces, including:
- Xhorse Multi-Prog
- Scanmatik 2 Pro
- OpenPort 2.0
- PCMFlash
- FoxFlash
- FC200
- Mongoose JLR
- MongoosePro JLR
- Teradyne GNA600 / VCM1
- Mazda VCM2
- Other compatible J2534 and ECU programming equipment
Available functions depend on the connected programmer, software module, ECU type and selected connection method.
Package Contents
- 1 × GODIAG SO676 ECU GPT Boot AD Programming Adapter

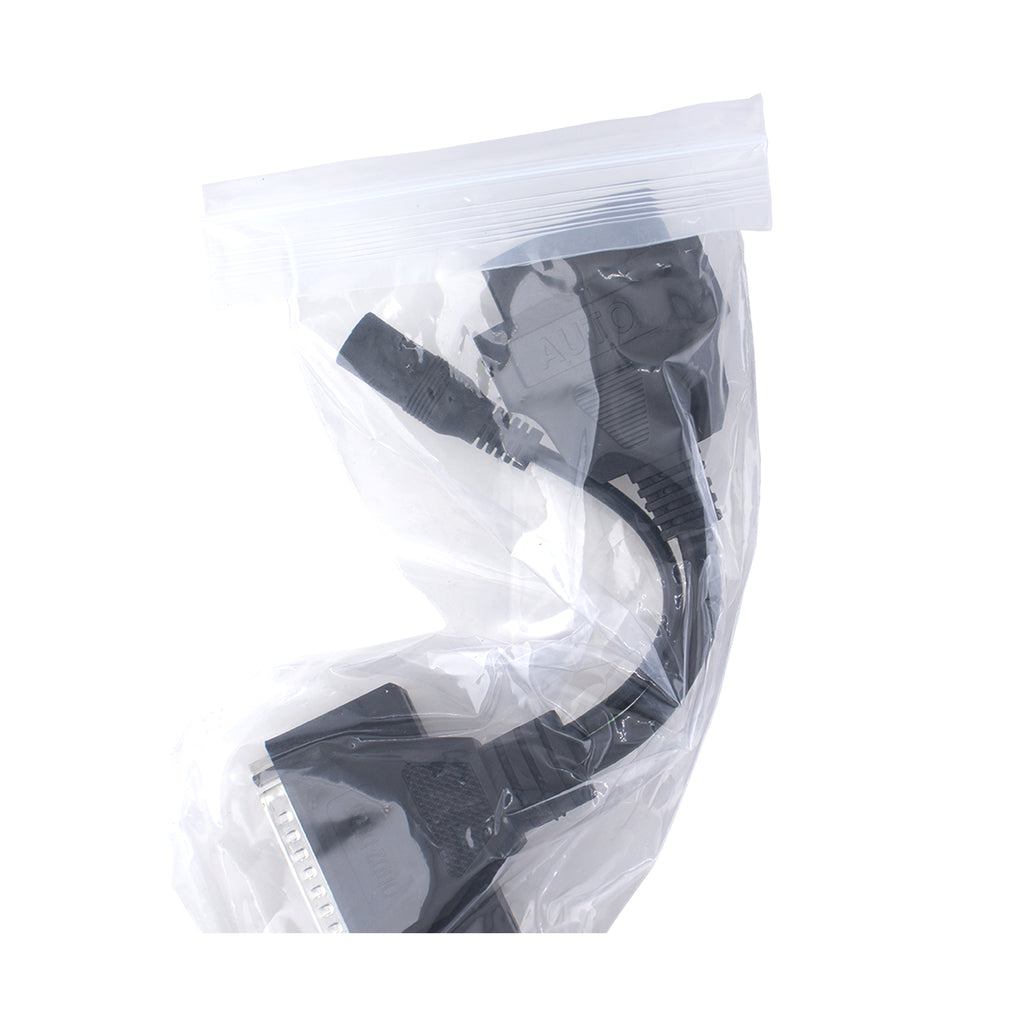

- 1 × OBD2-to-DB25 cable

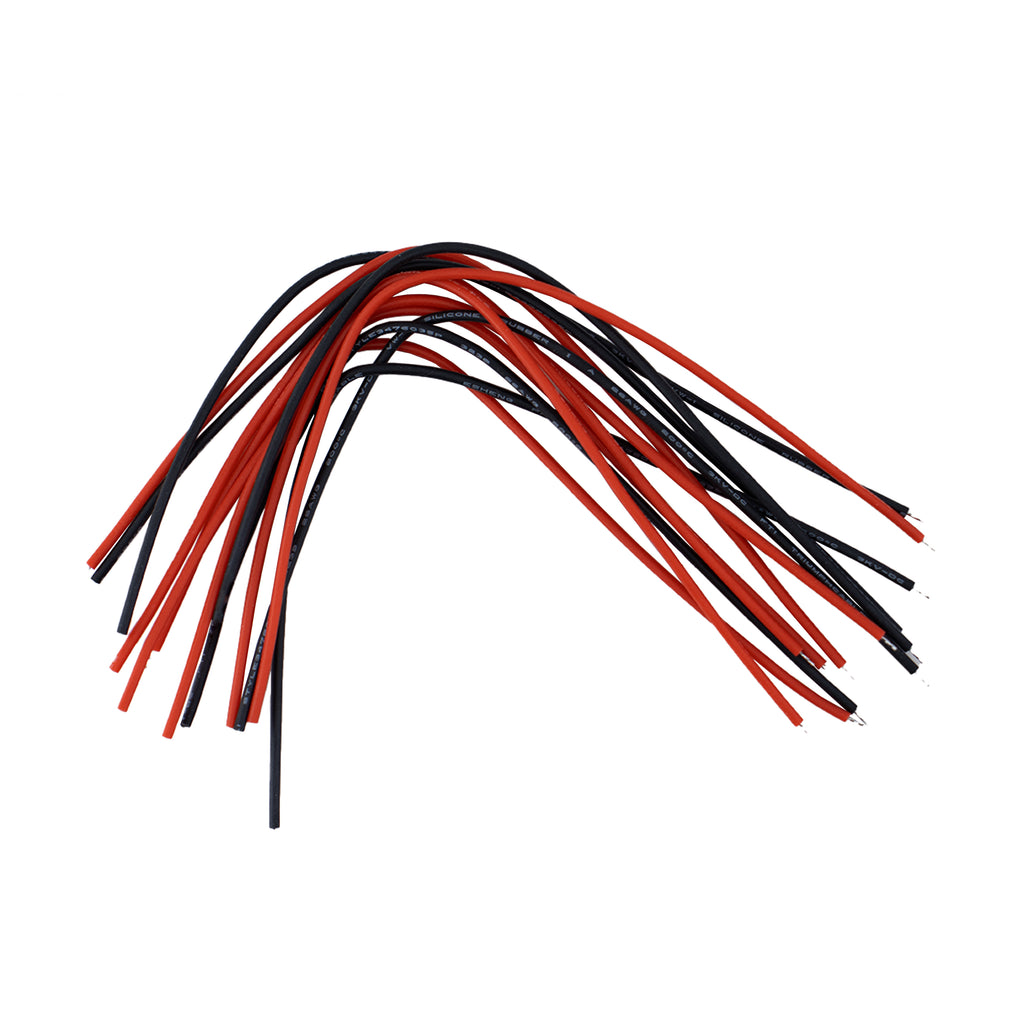

- 8 × Flexible silicone connection leads
Always follow the ECU pinout and connection instructions supplied by the programming software before applying power.
