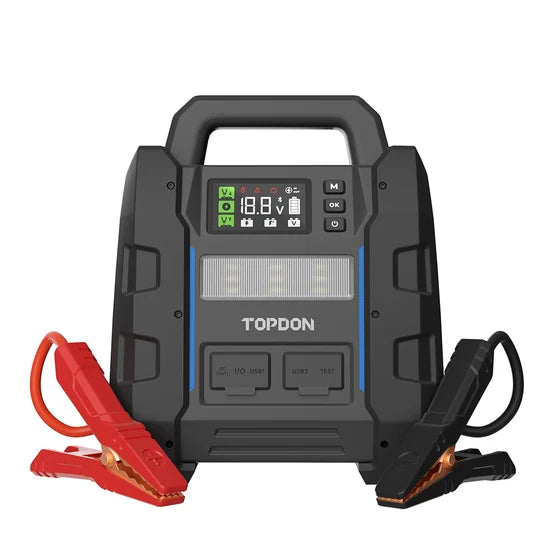

TOPDON V4500 Plus 4500A 12V Jump Starter and Battery Tester
The TOPDON V4500 Plus is a high-capacity 12V jump starter designed for large petrol and diesel engines, commercial vehicles and demanding workshop applications.
Delivering up to 4500A peak current, it can jump-start supported 12V vehicles with engine capacities of up to 16 litres. Its 32,000mAh internal battery provides up to 45 jump-starts per charge, while the extended Boost Mode maintains output for up to three minutes to assist with deeply discharged or difficult-to-start batteries.
When connected to the TOPDON mobile app using the supplied battery-test clamps, the V4500 Plus also provides battery testing and monitoring functions.
Product Features
- 4500A peak jump-starting current
- Suitable for 12V petrol and diesel engines up to 16 litres
- Provides up to 45 jump-starts from a full charge
- Extended Boost Mode maintains output for up to three minutes
- Battery testing and monitoring through the TOPDON mobile app
- 32,000mAh / 120Wh internal battery
- Bidirectional USB-C PD100W fast charging
- Recharges from 0% to 100% in approximately 90 minutes
- QC18W USB-A output for charging mobile devices
- DC output for compatible 12V accessories
- 500-lumen work light with 15 white LEDs
- Six red emergency warning lights
- IP65-rated dust and water resistance
- Ten integrated electrical protection systems
- Suitable for workshops, roadside assistance and mobile service vehicles
Jump-Starting Applications
Suitable for selected 12V vehicles and equipment, including:
- Passenger vehicles
- Four-wheel drives
- Vans
- Trucks and semi-trucks
- Trailers with auxiliary engines
- Motorhomes and recreational vehicles
- Agricultural machinery
- Construction equipment
- Off-road vehicles
- Boats
The V4500 Plus is designed for 12V vehicle systems only.
Battery Testing
When paired with the TOPDON mobile app and supplied battery-test clamps, the V4500 Plus can be used to assess and monitor supported vehicle batteries before replacement or further diagnosis.
Available battery-testing functions depend on the connected battery and current app version.
Integrated Safety Protection
The intelligent clamp and control system provides protection against:
- Reverse polarity
- Reverse charging
- Short circuits
- Overcurrent
- Overheating
- Over-discharge
- Overload
- Voltage fluctuations
- Low temperature
- Low voltage
Power Bank and Accessory Outputs
The 120Wh internal battery can also supply power to compatible electronic devices and accessories.
- USB-C Input and Output: Up to PD100W
- USB-A Output: Up to QC18W
- DC Output: Up to 16.8V / 10A
The USB-C port supports fast charging for compatible phones, tablets and laptops. The DC output can operate selected accessories such as portable refrigerators and powered workshop equipment.
Specifications
- Manufacturer: TOPDON
- Model: V4500 Plus
- Product Type: Jump Starter, Battery Tester and Power Bank
- Vehicle System Voltage: 12V
- Peak Current: 4500A
- Maximum Engine Capacity: Up to 16 litres, petrol or diesel
- Battery Capacity: 32,000mAh
- Battery Energy: 120Wh
- USB-C Input/Output: PD100W
- USB-A Output: QC18W
- Maximum DC Output: 16.8V / 10A
- Work-Light Output: Up to 500 lumens
- Ingress Protection: IP65
- Dimensions: Approximately 320 × 310 × 175mm
- Weight: Approximately 4.4kg
Package Contents
- 1 × TOPDON V4500 Plus
- 1 × Intelligent battery-test clamp set
- 1 × PD100W USB-C cable
- 1 × PD45W charging adapter
- 1 × DC adapter
- 1 × User manual
