Compatible

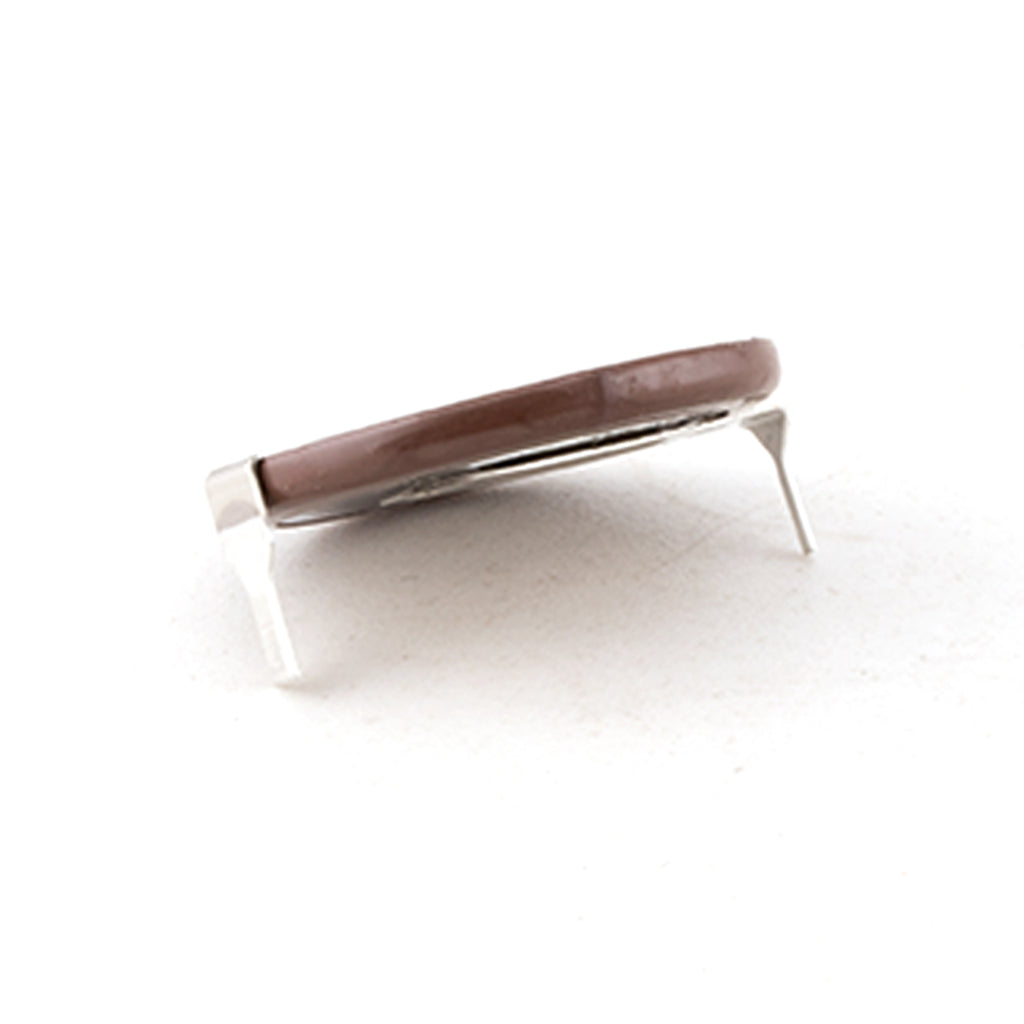

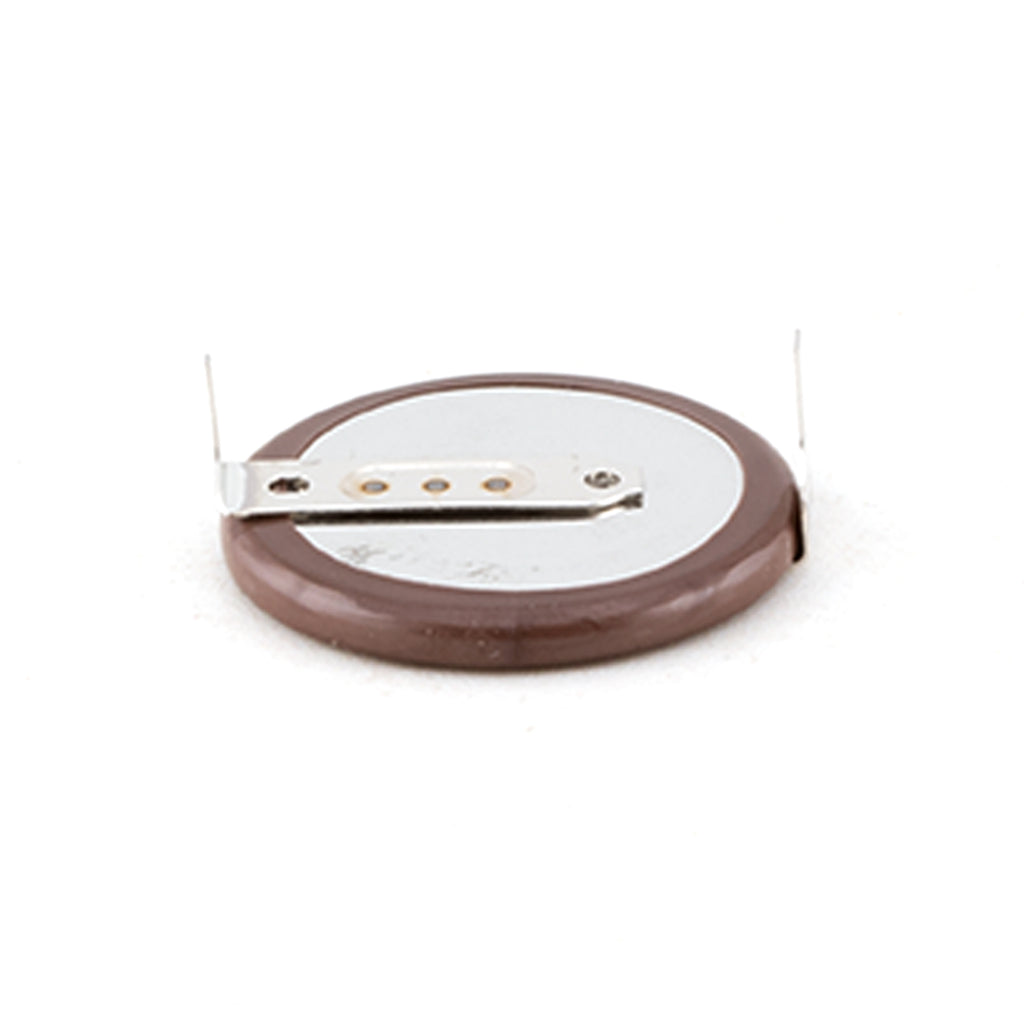

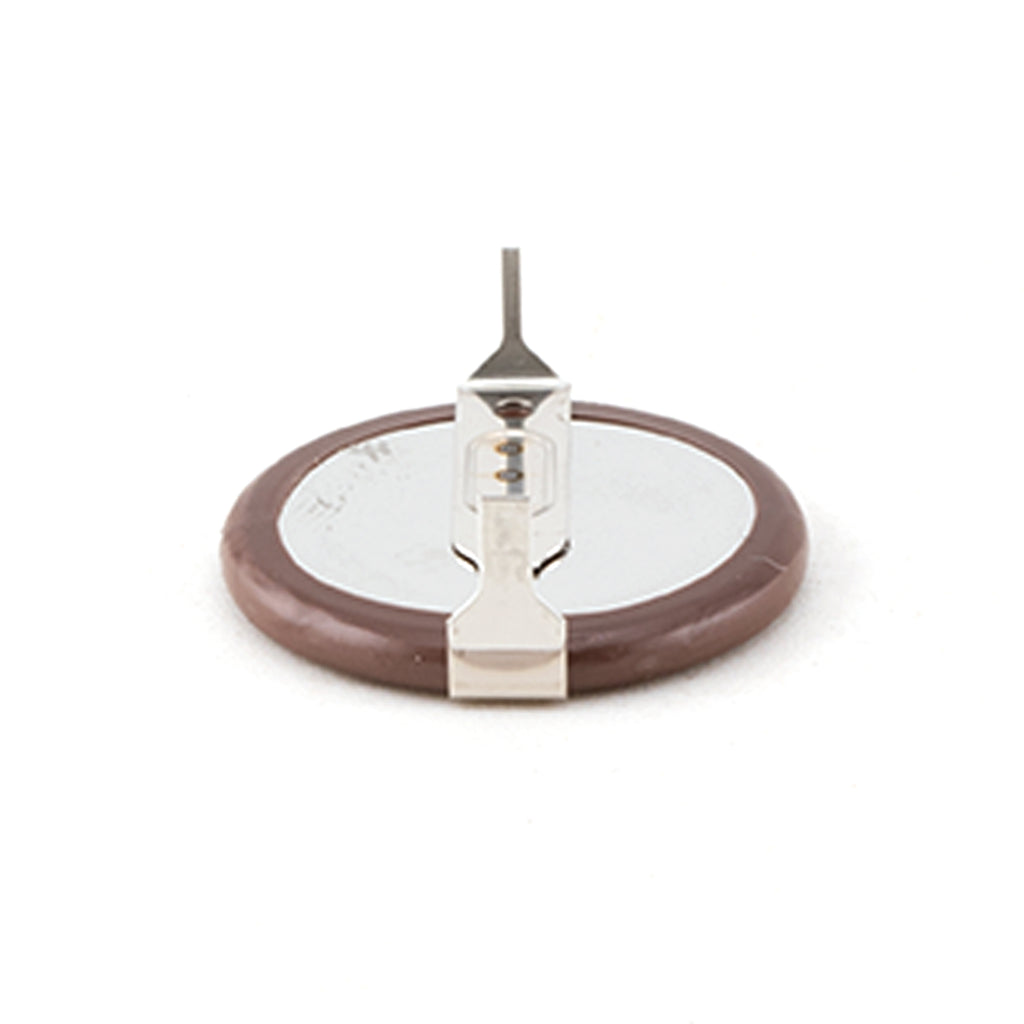

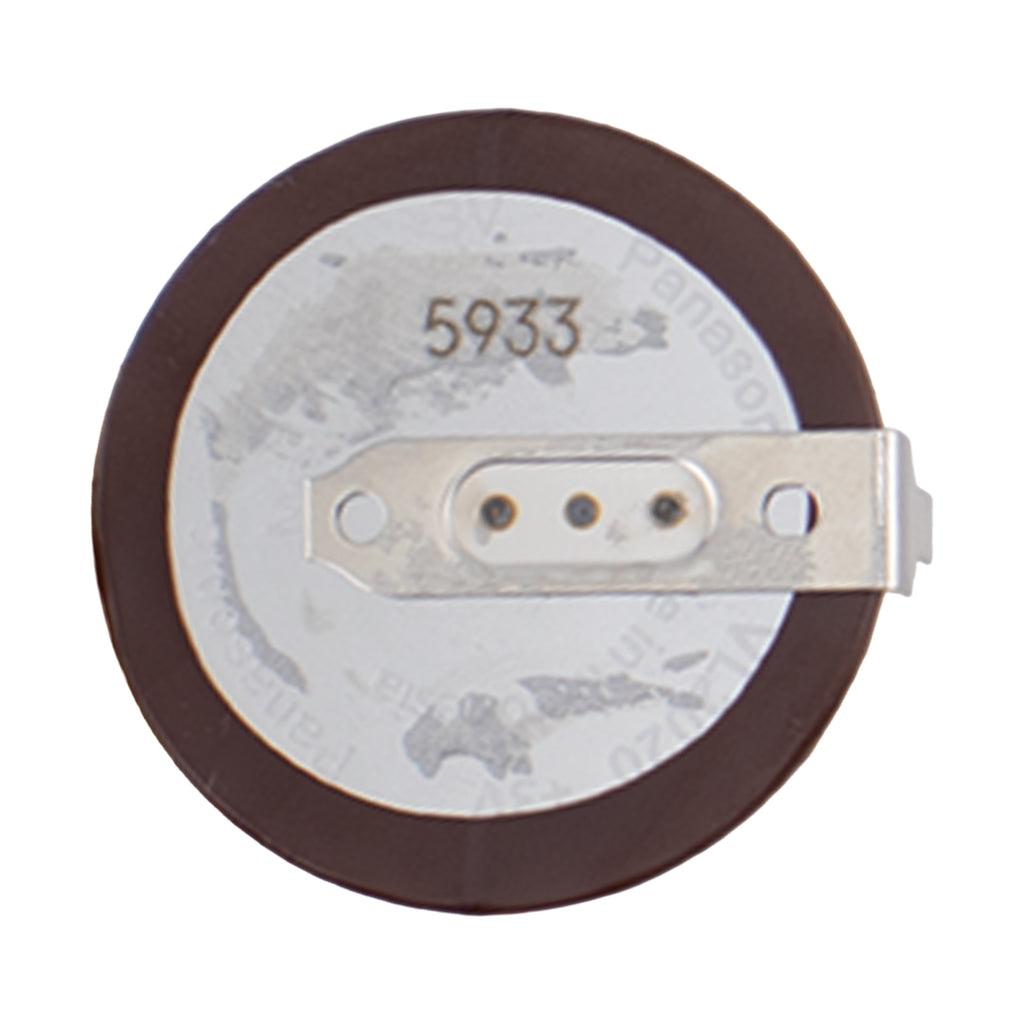

VL2020-180 Rechargeable Key Battery – 3V 20mAh
The VL2020-180 is a rechargeable coin-cell battery fitted with 180-degree solder tabs for installation onto supported automotive remote-key circuit boards.
It is commonly used when repairing selected BMW and MINI remote keys that recharge the internal battery while the key is in use. The pre-fitted solder terminals allow the battery to be mounted directly onto the key PCB in the same orientation as the original battery.
Product Features
- Rechargeable VL2020 coin-cell battery
- 180-degree solder-tab configuration
- Suitable for repairing supported BMW and MINI remote keys
- Direct PCB mounting
- Replaces depleted or faulty rechargeable key batteries
- Compact 20mm coin-cell design
- Supplied ready for soldering
Specifications
- Battery Model: VL2020-180
- Battery Type: Rechargeable coin cell
- Chemistry: Vanadium lithium
- Nominal Voltage: 3V
- Nominal Capacity: 20mAh
- Terminal Configuration: 180-degree solder tabs
- Diameter: 20mm
- Height: 2mm
- Operating Temperature: -20°C to +60°C
- Application: Automotive remote-key PCB repair
Compatibility
Used in selected rechargeable BMW and MINI remote keys, including applications associated with:
- BMW 3 Series E46
- BMW 5 Series E39
- BMW X3
- BMW X5 E53
- BMW Z3
- BMW Z4
- Selected MINI remote keys
Compatibility is determined by the original battery model, physical dimensions, solder-tab position and key circuit-board layout. Compare the original battery and terminal orientation before installation.
