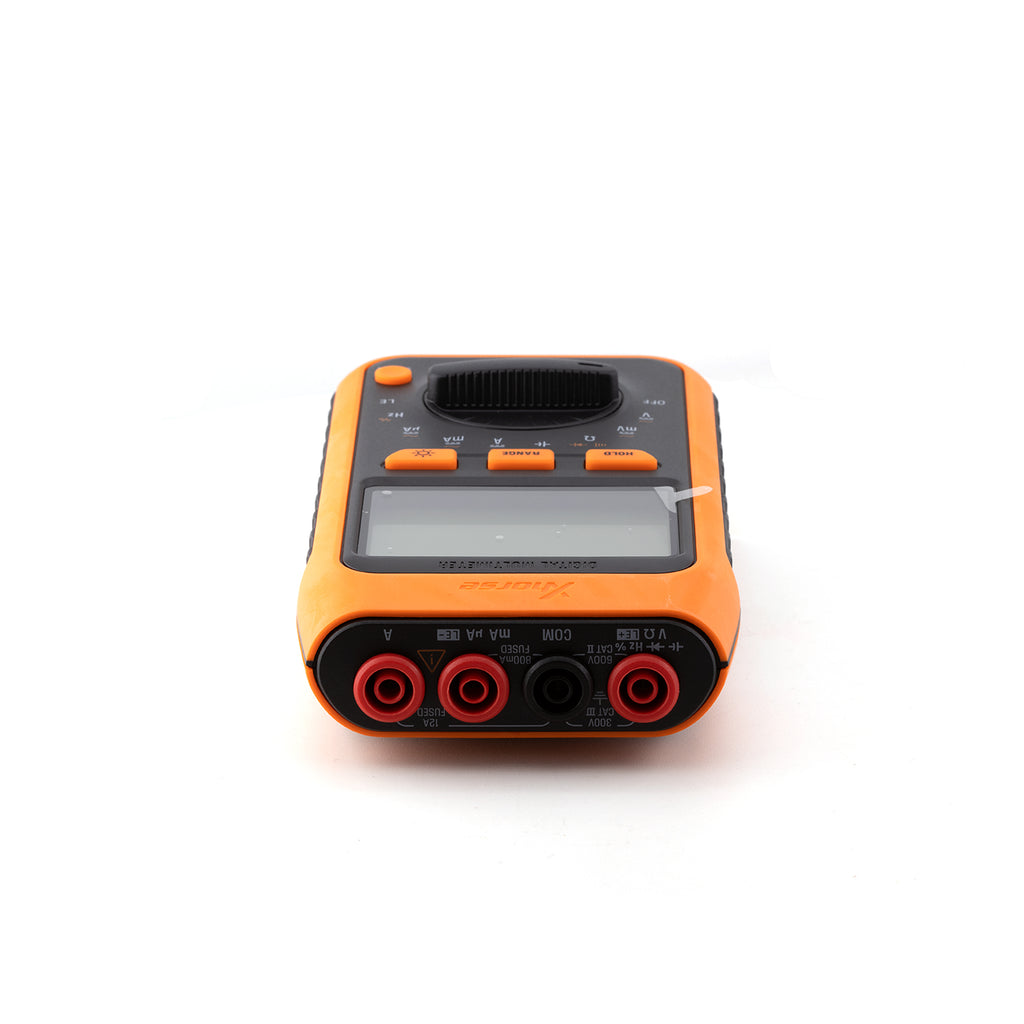

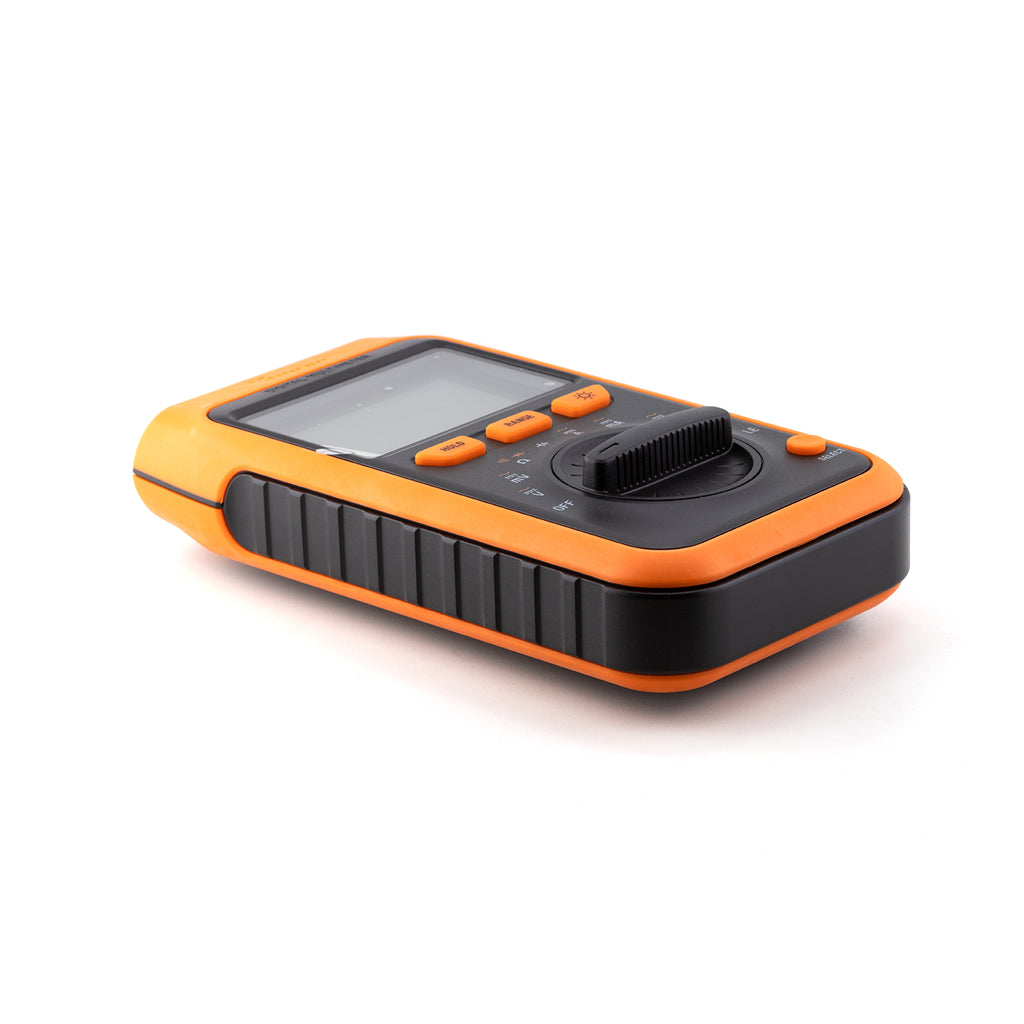

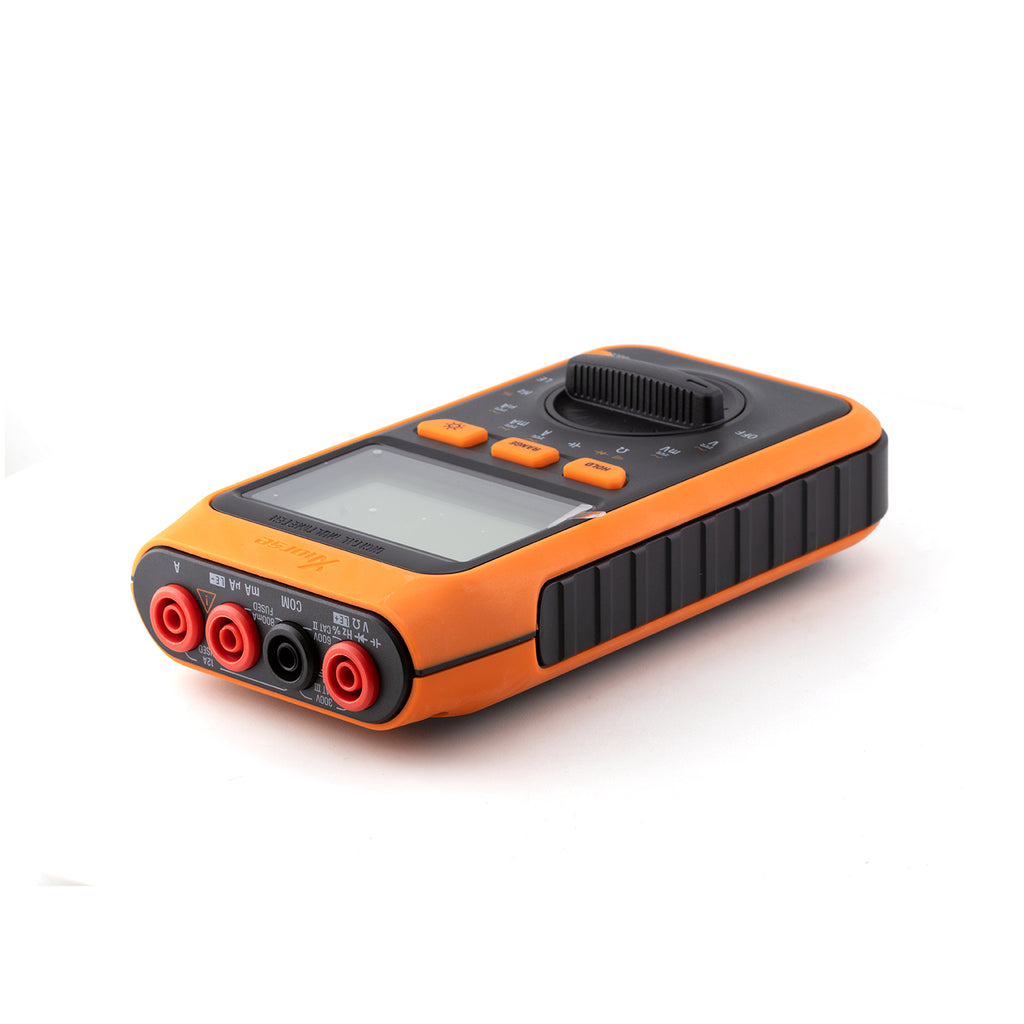

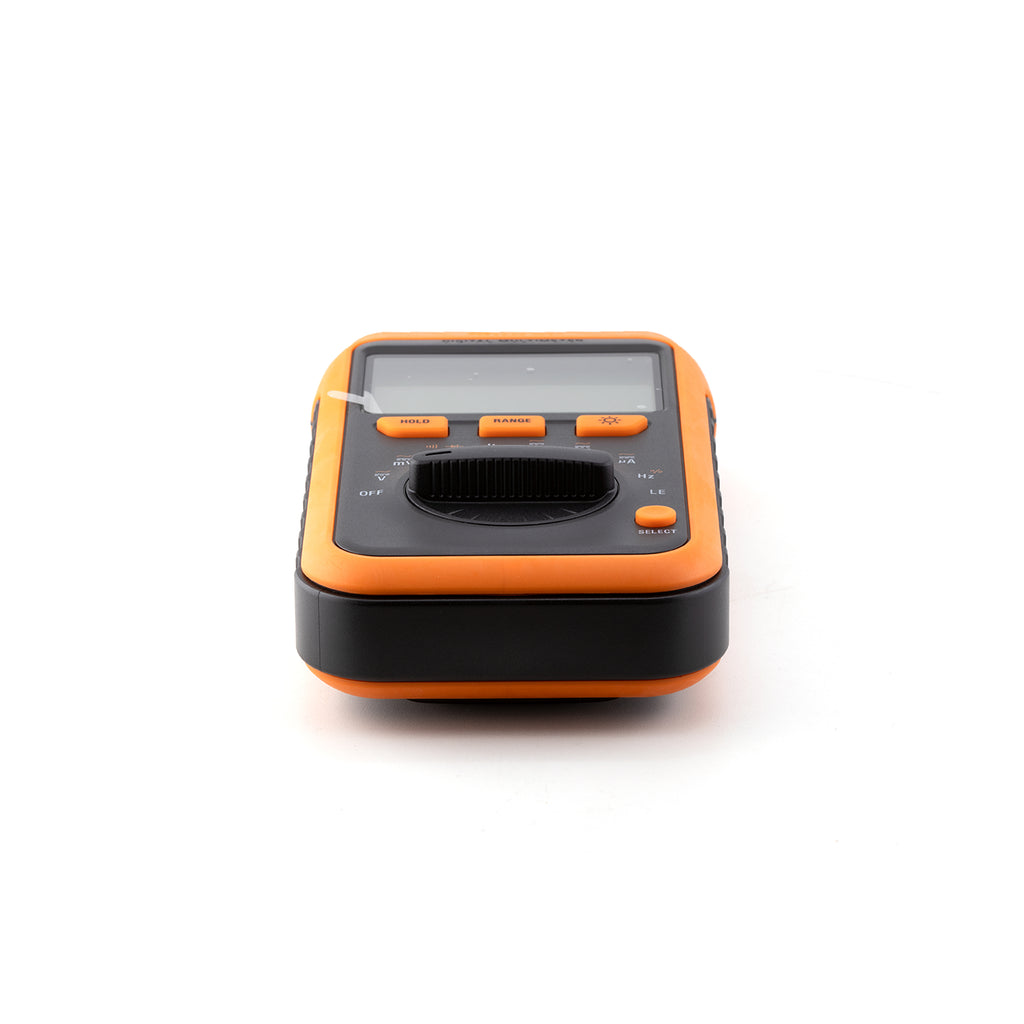

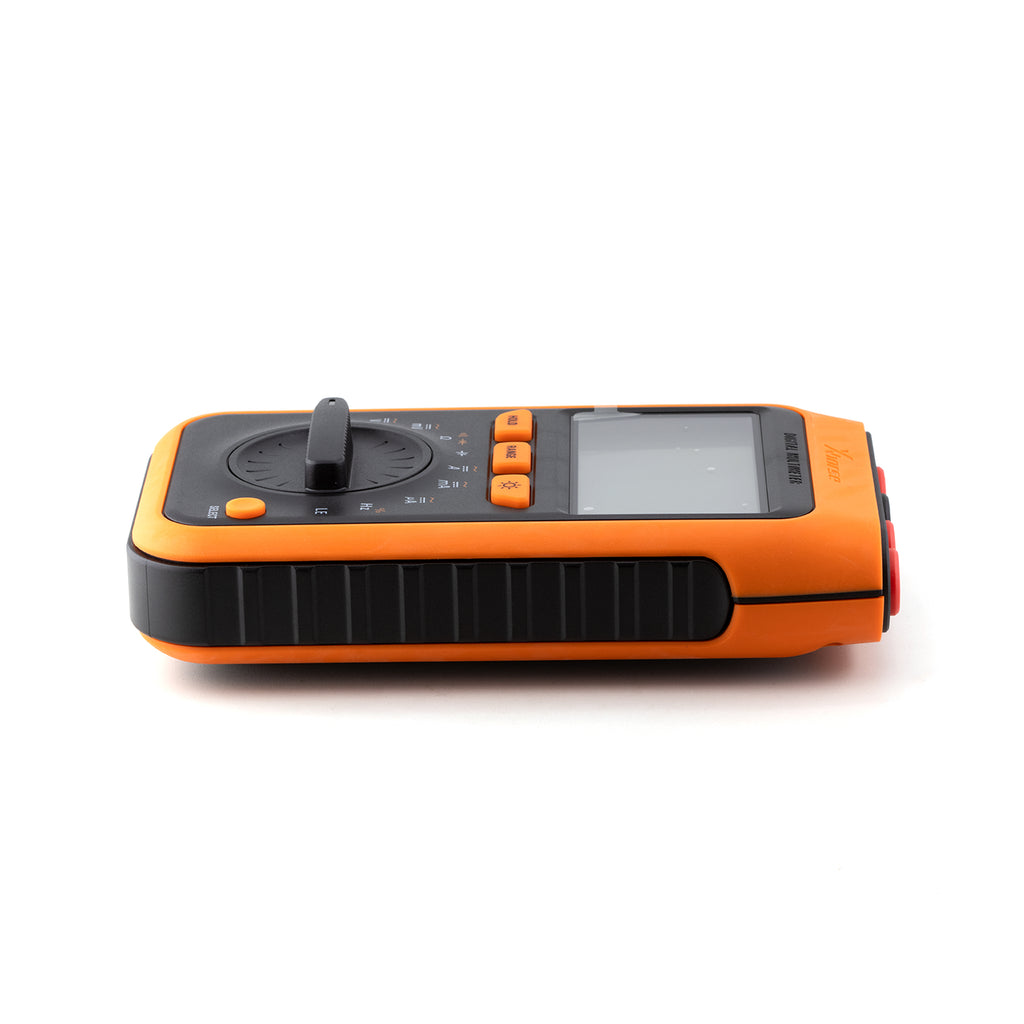

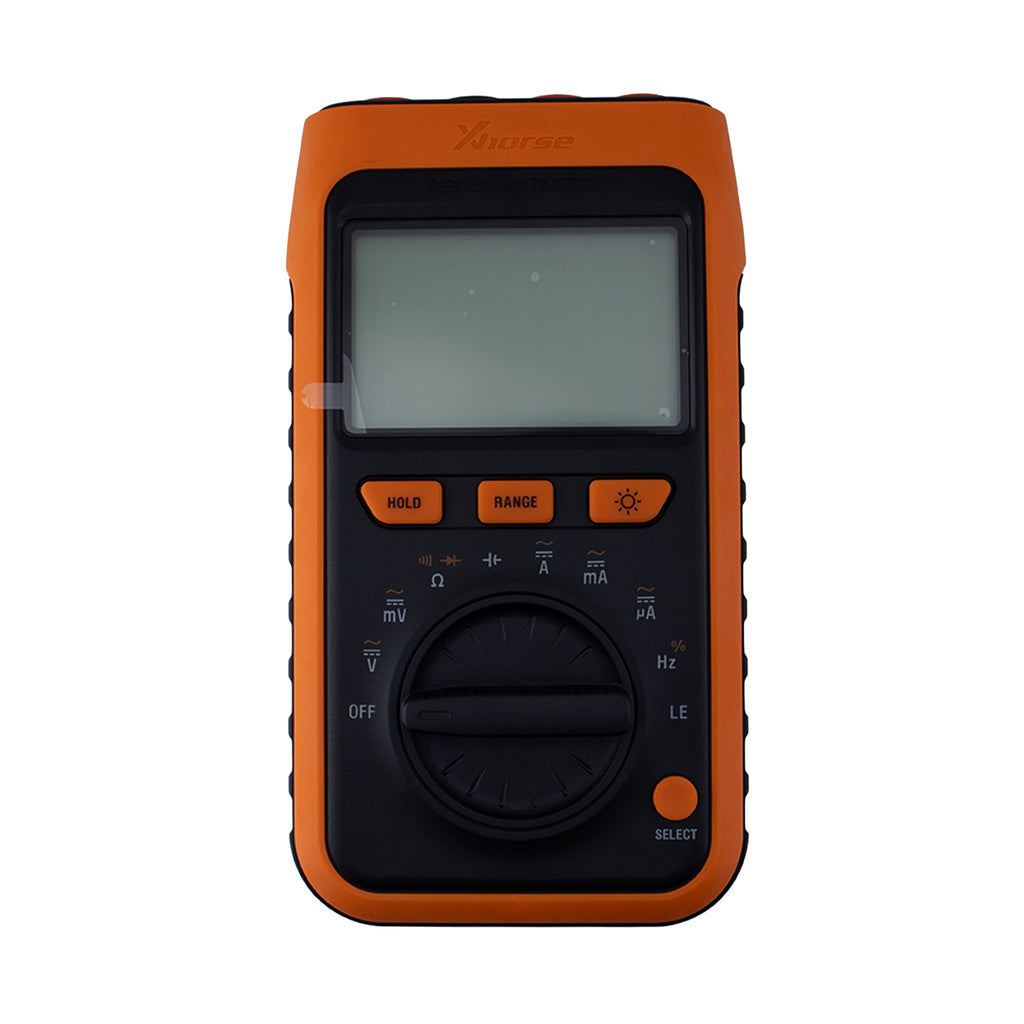

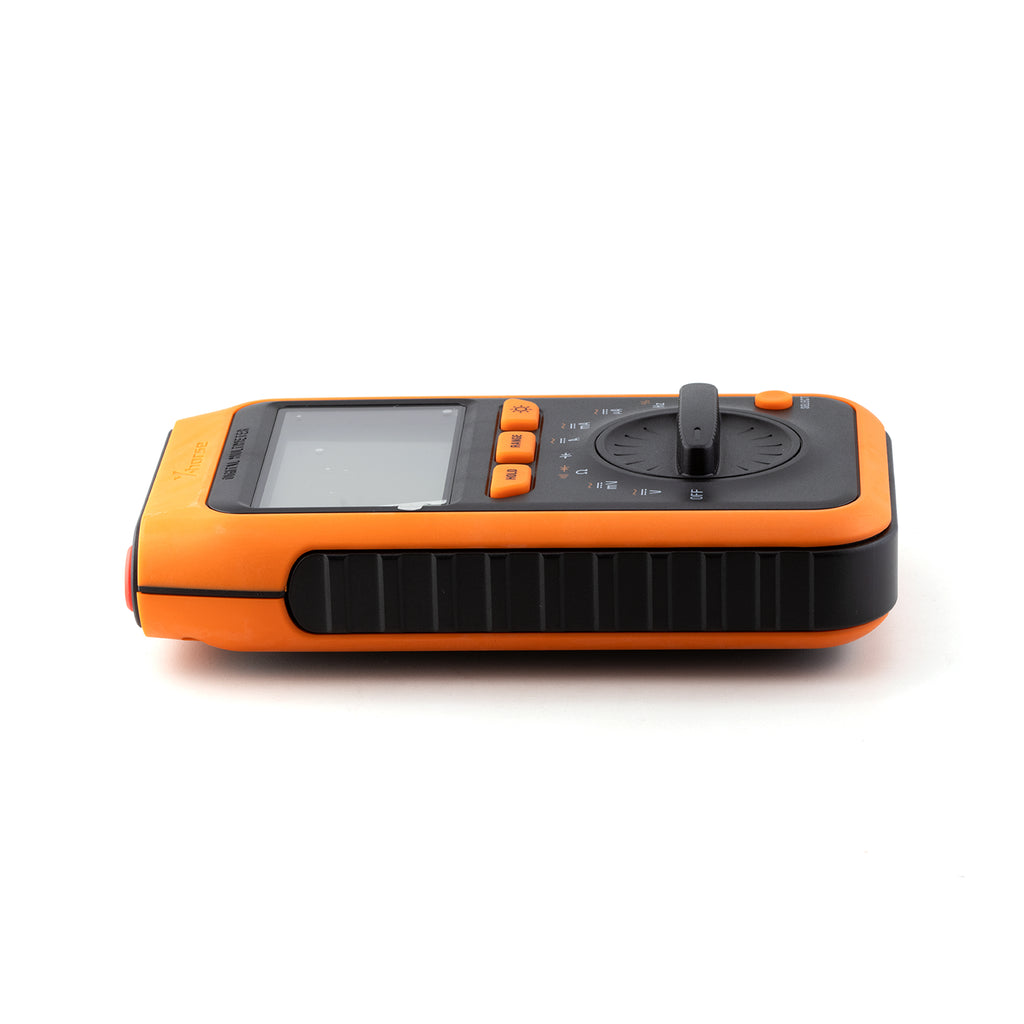

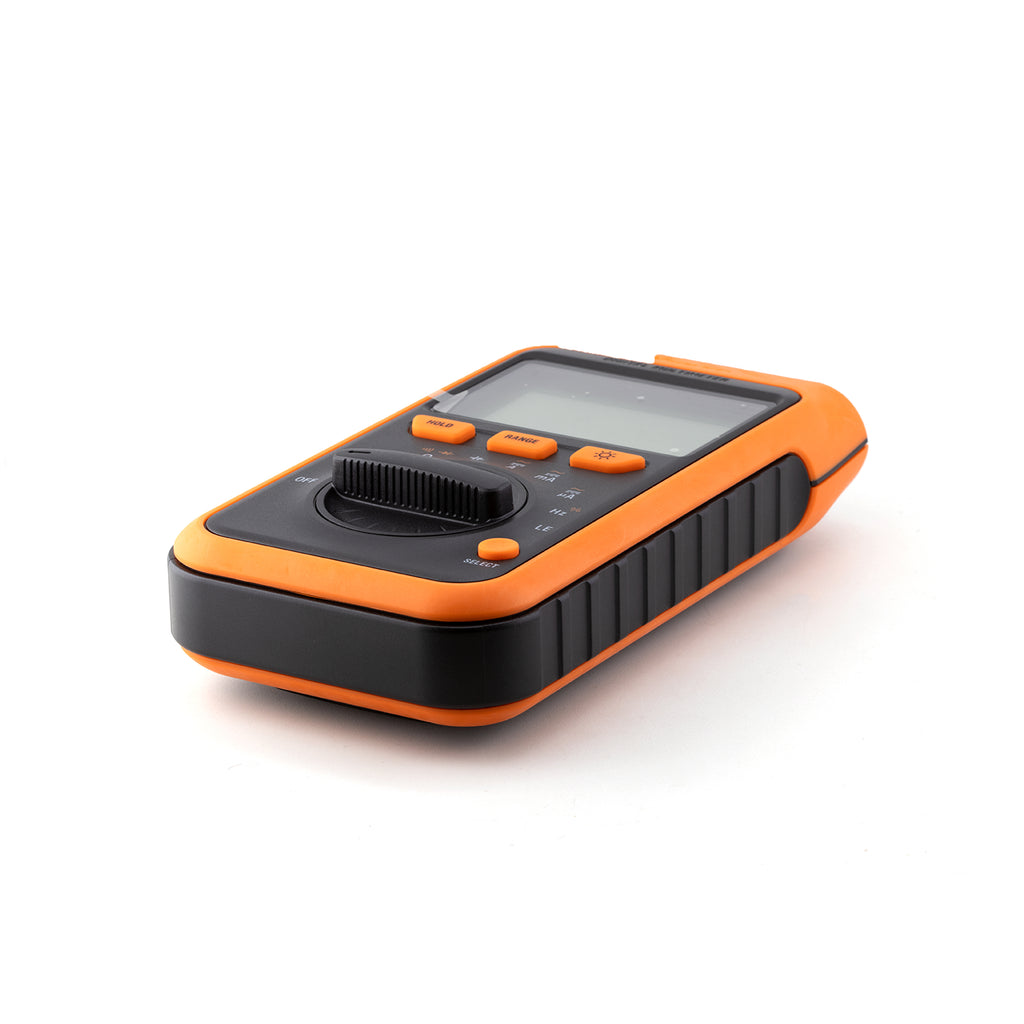

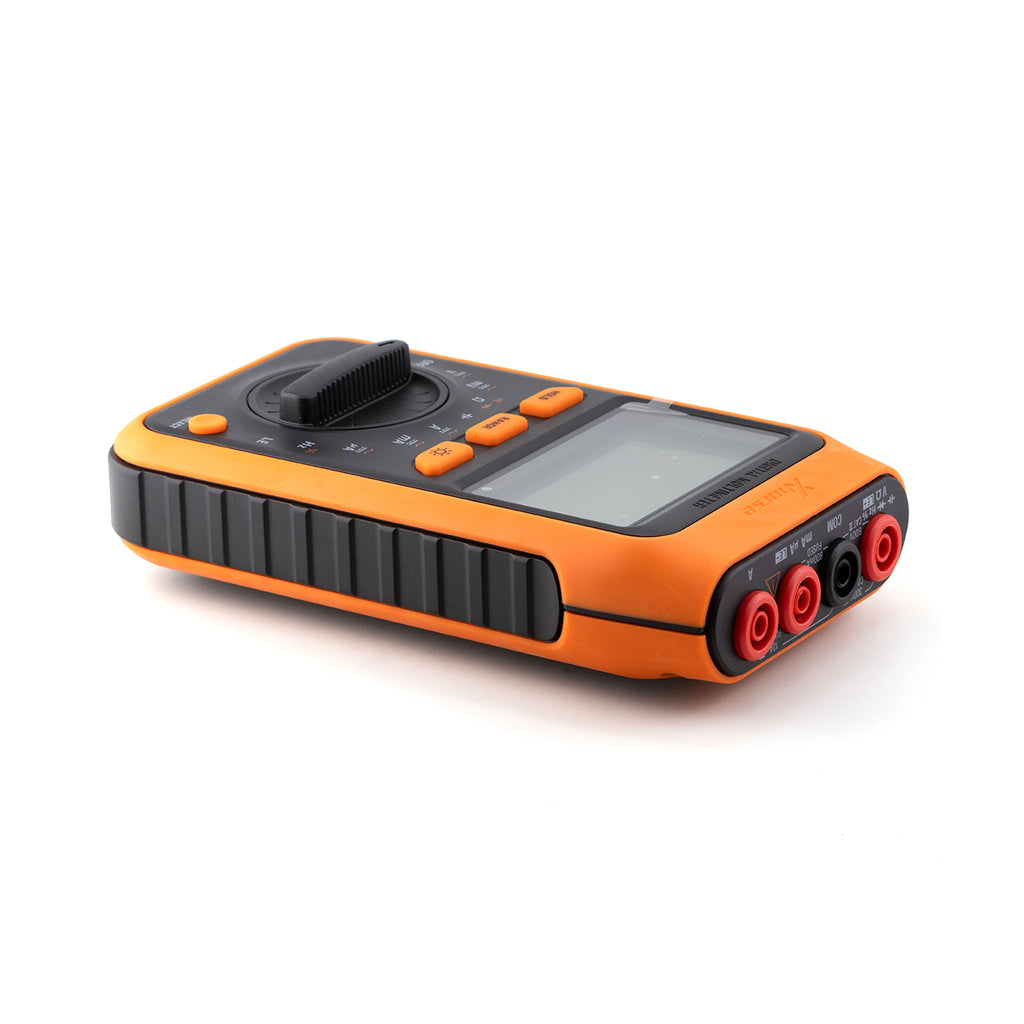

Xhorse Digital Multimeter with Remote Leakage Detection – XDDDM0GL
The Xhorse XDDDM0GL is a digital multimeter designed for automotive locksmith, remote-control and electronics testing applications.
In addition to standard electrical measurements, it features a dedicated leakage-current test that provides its own 3V DC supply. This allows static current draw to be measured directly without connecting an external power source, making it particularly useful for identifying excessive battery drain in remote keys.
The auto-ranging system automatically selects the appropriate measurement range, while the large backlit display provides clear readings in low-light workshop environments.
Product Features
- Dedicated remote-control leakage-current test
- Measures leakage current with resolution down to 0.1μA
- Provides a 3V DC supply during leakage testing
- Measures AC and DC voltage
- Measures AC and DC current
- Measures resistance and capacitance
- Measures frequency and duty cycle
- Diode and continuity testing
- Automatic measurement ranging
- Data-hold function
- Large backlit LCD screen
- Overvoltage and overcurrent warning prompts
- Withstands accidental voltage input of up to 600V
- Low-battery warning
- Automatic power-saving function
- Power consumption below 3mA

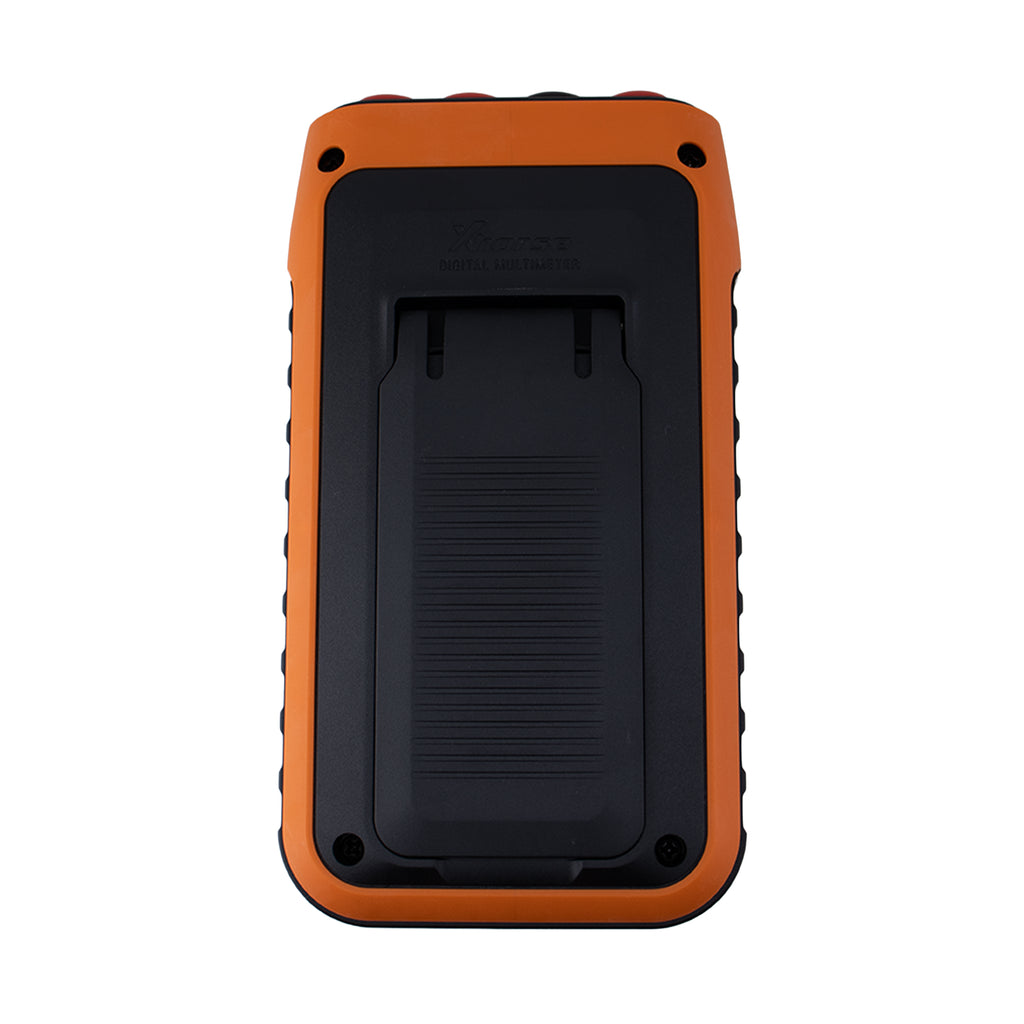

- Integrated rear support stand
Specifications
- Manufacturer: Xhorse
- Manufacturer Part Number: XDDDM0GL
- Product Type: Digital Multimeter
- Leakage-Current Range: 600μA / 6000μA
- Leakage-Current Resolution: 0.1μA
- DC Voltage Range: Up to 600V
- AC Voltage Range: Up to 600V
- DC Current Range: Up to 10A
- AC Current Range: Up to 10A
- Resistance Range: Up to 60MΩ
- Capacitance Range: Up to 600μF
- Frequency Range: Up to 9.999MHz
- Duty-Cycle Range: 1%–99%
- Diode-Test Range: 0–3.3V
- Leakage-Test Output: 3V DC
- Measurement Mode: Auto-ranging
- Display: Backlit LCD
- Maximum Overvoltage Protection: 600V
- Power Consumption: Less than 3mA
Applications
The XDDDM0GL can assist with:
- Checking remote-key battery drain
- Identifying excessive remote-control standby current
- Testing key and remote circuit boards
- Measuring vehicle and module power supplies
- Checking continuity through wiring and components
- Testing resistance, capacitors and diodes
- General automotive electrical diagnosis
- Electronics repair and circuit testing
Package Contents
- 1 × Xhorse XDDDM0GL Digital Multimeter
- 1 × User manual
Batteries are not included.
