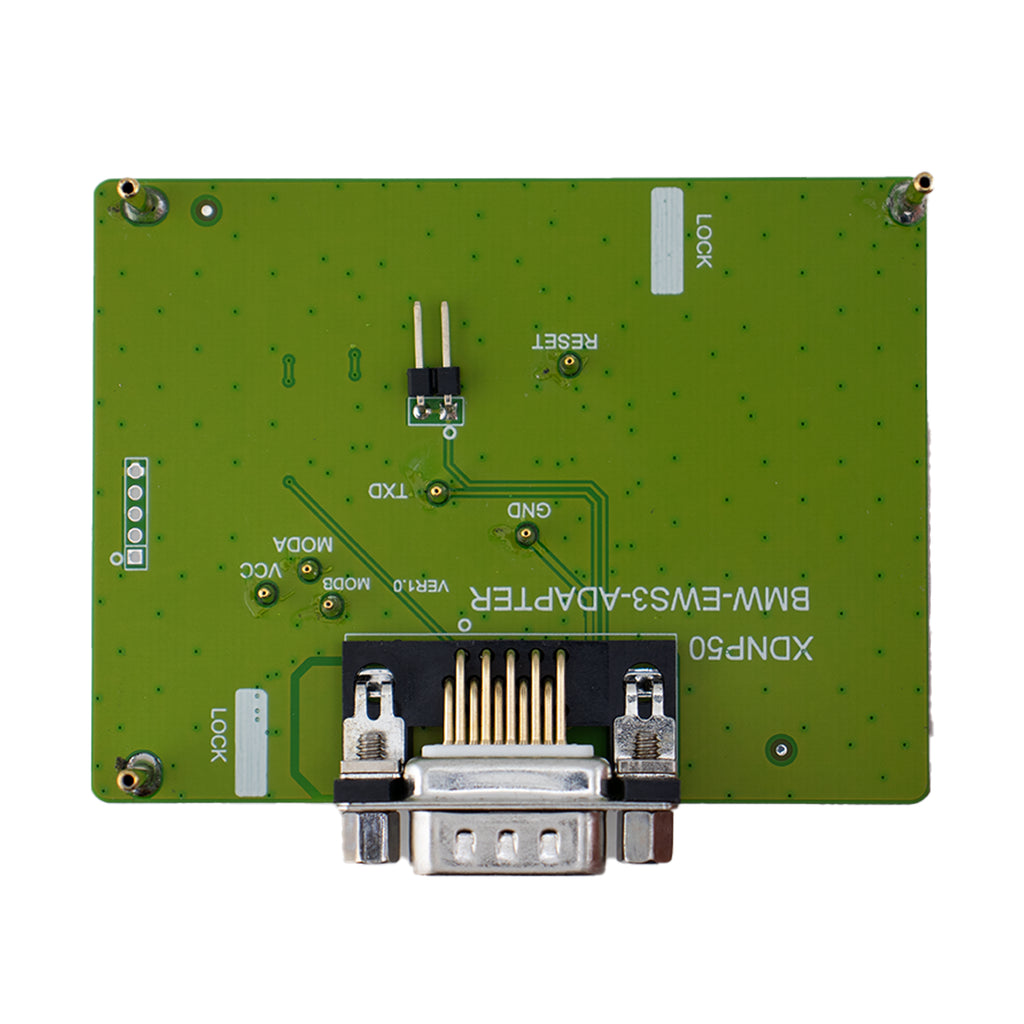

Xhorse BMW EWS3 Solder-Free Adapter – XDNP50
The Xhorse XDNP50 is a solder-free adapter designed for reading immobiliser data from supported BMW EWS3 and EWS3+ modules.
The adapter connects directly to the EWS circuit board, eliminating the need to solder wires or remove components during supported procedures. When used with compatible Xhorse programming equipment, the extracted immobiliser data can be used for applicable add-key and all-keys-lost procedures.
Product Features
- Supports BMW EWS3 and EWS3+ immobiliser modules
- Reads supported EWS immobiliser data
- Direct solder-free circuit-board connection
- No component removal required
- Helps reduce the risk of soldering or heat damage
- Suitable for supported add-key and all-keys-lost procedures
- Reusable workshop adapter
- Designed for compatible Xhorse programming equipment
Specifications
- Manufacturer: Xhorse
- Manufacturer Part Number: XDNP50
- Alternative Reference: XDNP50GL / VVDIXDNP50
- Product Type: BMW EWS Solder-Free Adapter
- Supported Modules: BMW EWS3 and EWS3+
- Connection Type: Direct PCB adapter with K-Line connection
- Application: Immobiliser data reading and key programming
Compatible Equipment
Designed for use with:
- Xhorse VVDI Mini Prog
- Xhorse VVDI Key Tool Plus
Available functions depend on the connected programmer, software version and EWS module.
Compatibility
Suitable for supported EWS3 and EWS3+ systems found in selected:
- BMW vehicles
- MINI vehicles
- Land Rover and Range Rover vehicles using BMW EWS systems
- Rover vehicles using BMW EWS systems
Compatibility must be confirmed using the immobiliser module type rather than the vehicle model and year alone.
Connection Information
Connect the required K-Line lead to the EWS circuit board according to the diagram displayed by the Xhorse equipment, then position the XDNP50 adapter securely over the module contacts.
Ensure the adapter probes are correctly aligned before attempting to read data. Always create and verify a complete backup of the original immobiliser data before carrying out further procedures.
Package Contents
- 1 × Xhorse XDNP50 BMW EWS3 Solder-Free Adapter
