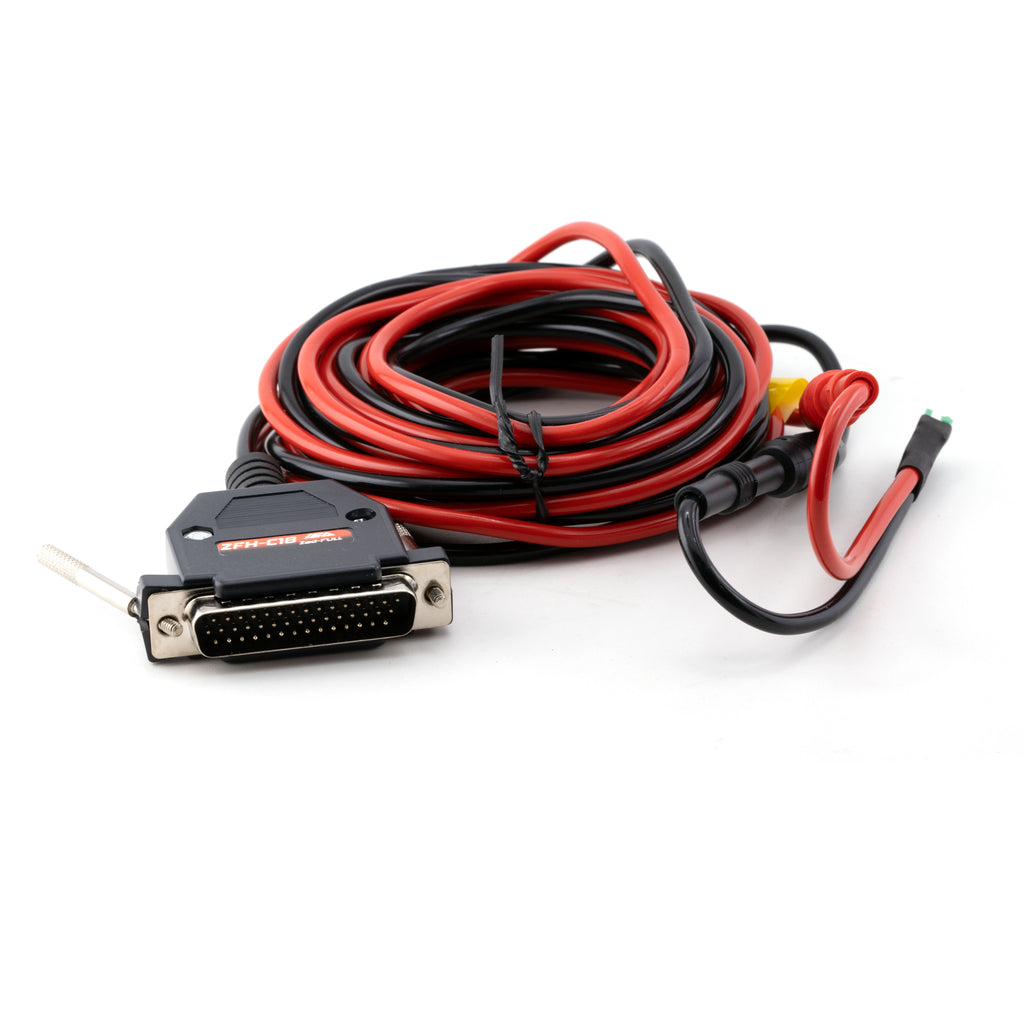

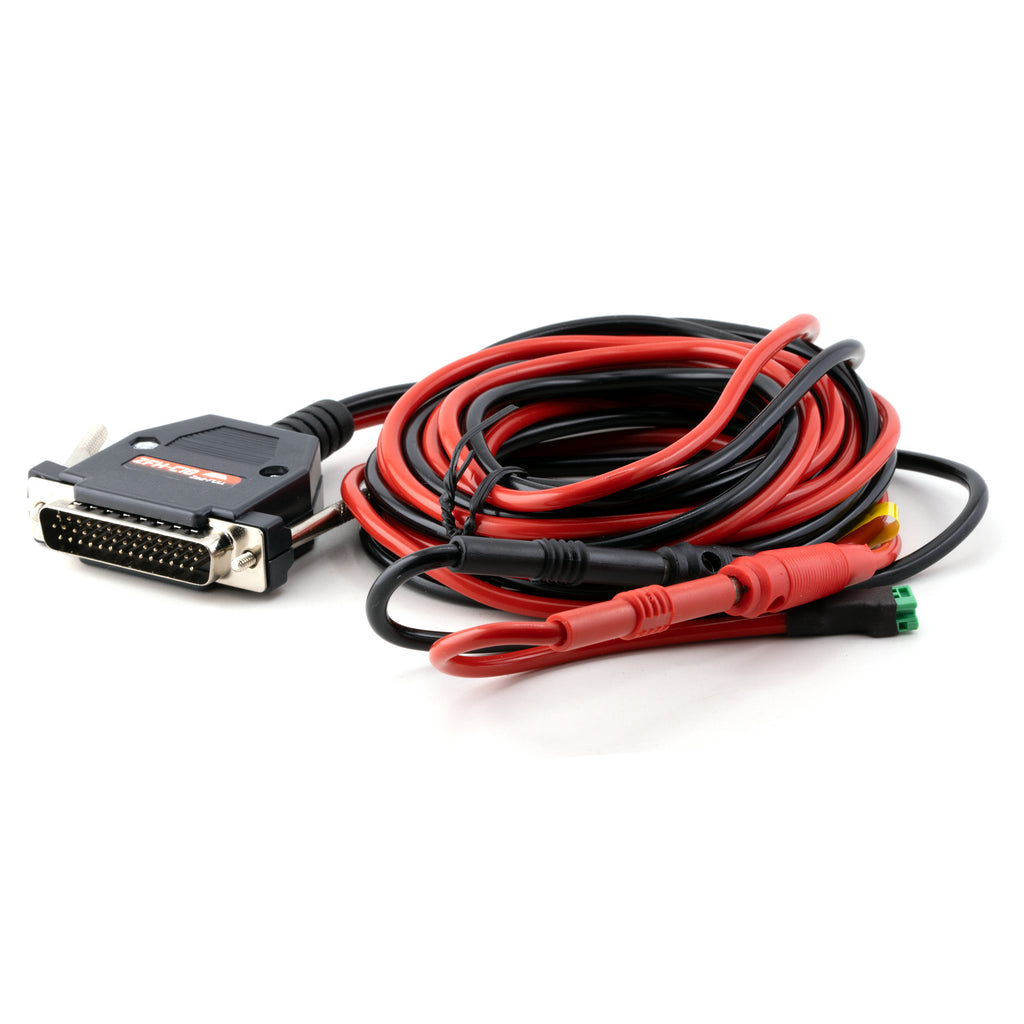

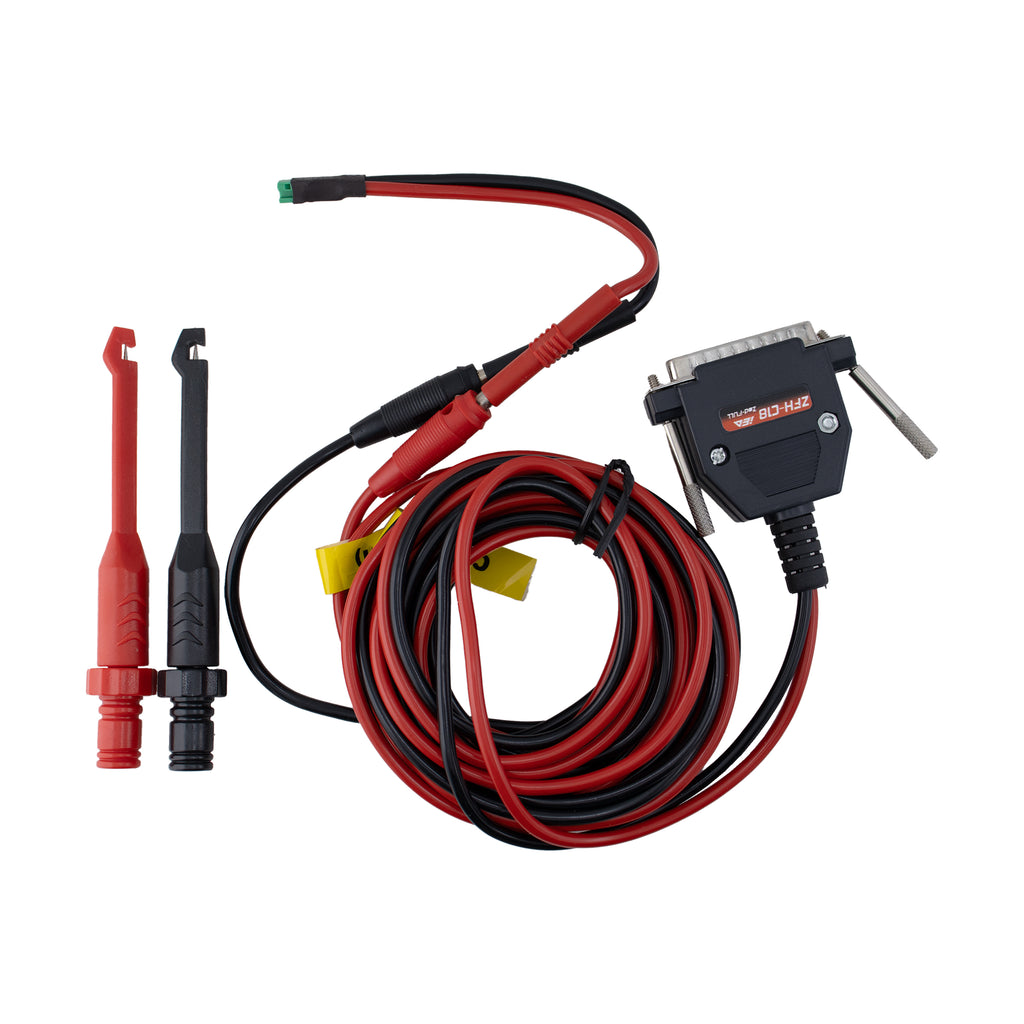

Zed-FULL ZFH-C18 CAN Gateway Bypass Cable
The Zed-FULL ZFH-C18 cable is designed to provide direct CAN bus access when programming keys on supported newer vehicles equipped with a security gateway module.
By connecting to the vehicle at the location shown in the Zed-FULL device menu, the cable bypasses the gateway and allows the Zed-FULL Plus to communicate directly with the required vehicle systems. This enables supported add-key and all-keys-lost procedures that may not be available through the standard OBD connection alone.
Connection points vary between vehicles. Follow the diagrams and instructions displayed in the relevant Zed-FULL application menu.
Product Features
- Provides direct access to the vehicle CAN bus
- Bypasses supported vehicle security gateway modules
- Used for supported add-key and all-keys-lost procedures
- Connects directly to the locations shown in the Zed-FULL menu
- Compatible with Zed-FULL Plus
- Suitable for a range of Renault, Nissan, Stellantis, Toyota and Iveco applications
Specifications
- Manufacturer: IEA / Zed-FULL
- Manufacturer Part Number: ZFH-C18
- Product Type: CAN Gateway Bypass and Key Programming Cable
- Compatible Device: Zed-FULL Plus
Vehicle Compatibility
Supports selected applications including:
Renault
- Renault Megane IV Phase 2 – 2021 onwards
- Renault Clio V – 2020 onwards
- Renault Captur – 2020 onwards
- Renault Arkana – 2020 onwards
- Renault Kangoo – 2022 onwards
- Renault Espace – 2020 onwards
- Renault Scenic – 2021 onwards
- Renault Zoe – 2020 onwards
- Renault Trafic – 2022 onwards
Nissan
- Selected Nissan vehicles using the 28-digit security system
Iveco
- Iveco Daily – 2020 onwards
Toyota
- Toyota Corolla – 2019 onwards
- Toyota Yaris Cross – 2021 onwards
Peugeot and Opel
- Peugeot 308 Proximity – 2023 onwards with UDS+ system
- Peugeot 208 Proximity – 2023 onwards with UDS+ system
- Opel Astra L – 2022 onwards with UDS+ system
Jeep, Dodge and Chrysler
- Jeep Cherokee Proximity – 2019 onwards
- Jeep Renegade Proximity – 2018 onwards
- Jeep Renegade Blade – 2019 onwards
- Jeep Compass Proximity – 2018 onwards
- Jeep Compass Blade – 2019 onwards
- Dodge Charger – 2018 onwards
- Dodge Ram – 2019 onwards
- Chrysler Pacifica Proximity – 2017 onwards
- Chrysler 300 and 300C – 2015 onwards
Vehicle coverage can change as Zed-FULL software is updated. Confirm the required cable, software pack and connection method through the relevant vehicle application in the Zed-FULL menu before use.
