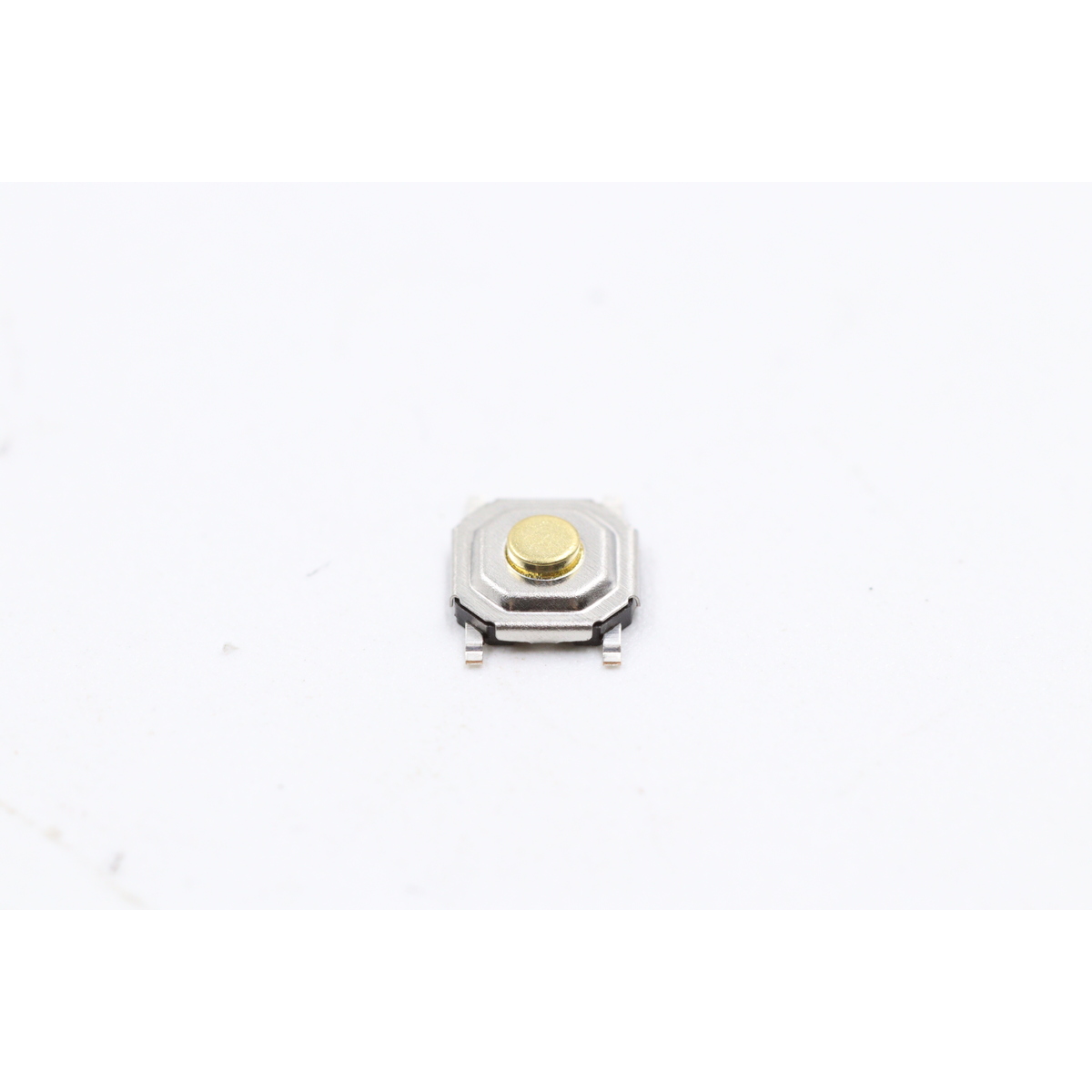

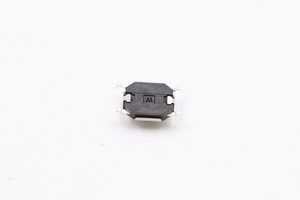

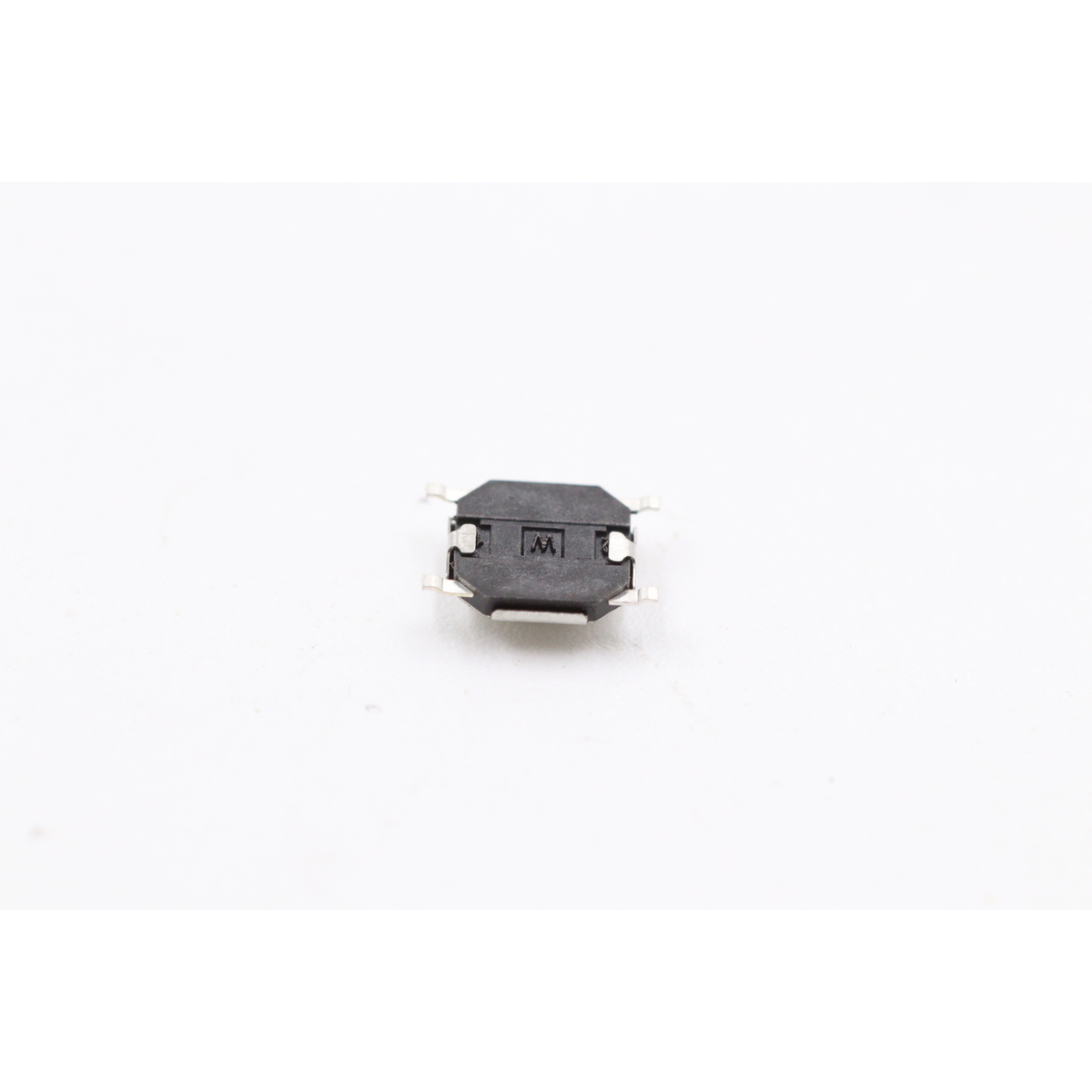

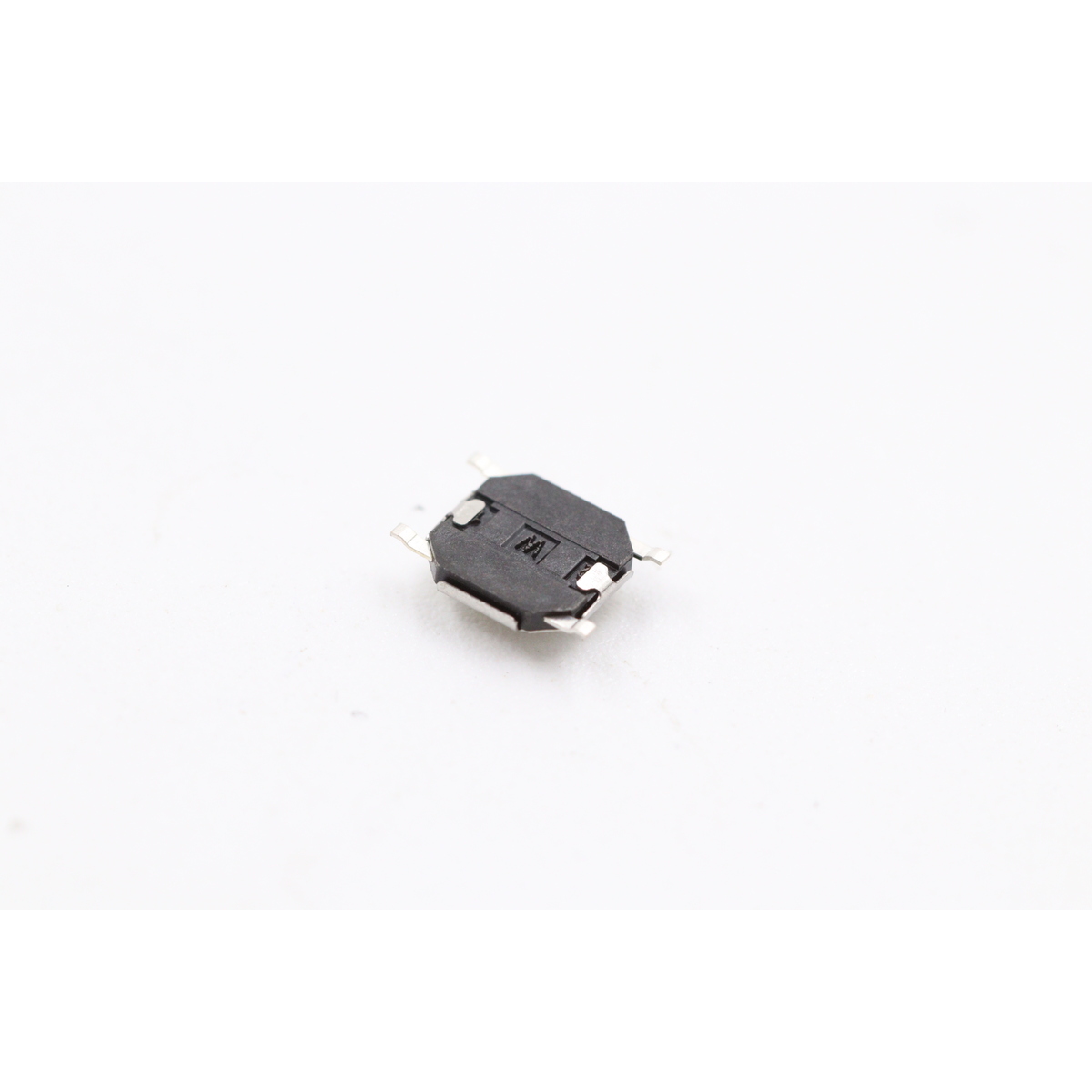

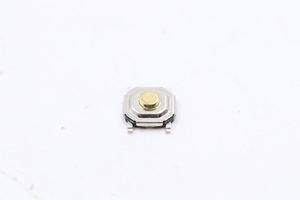

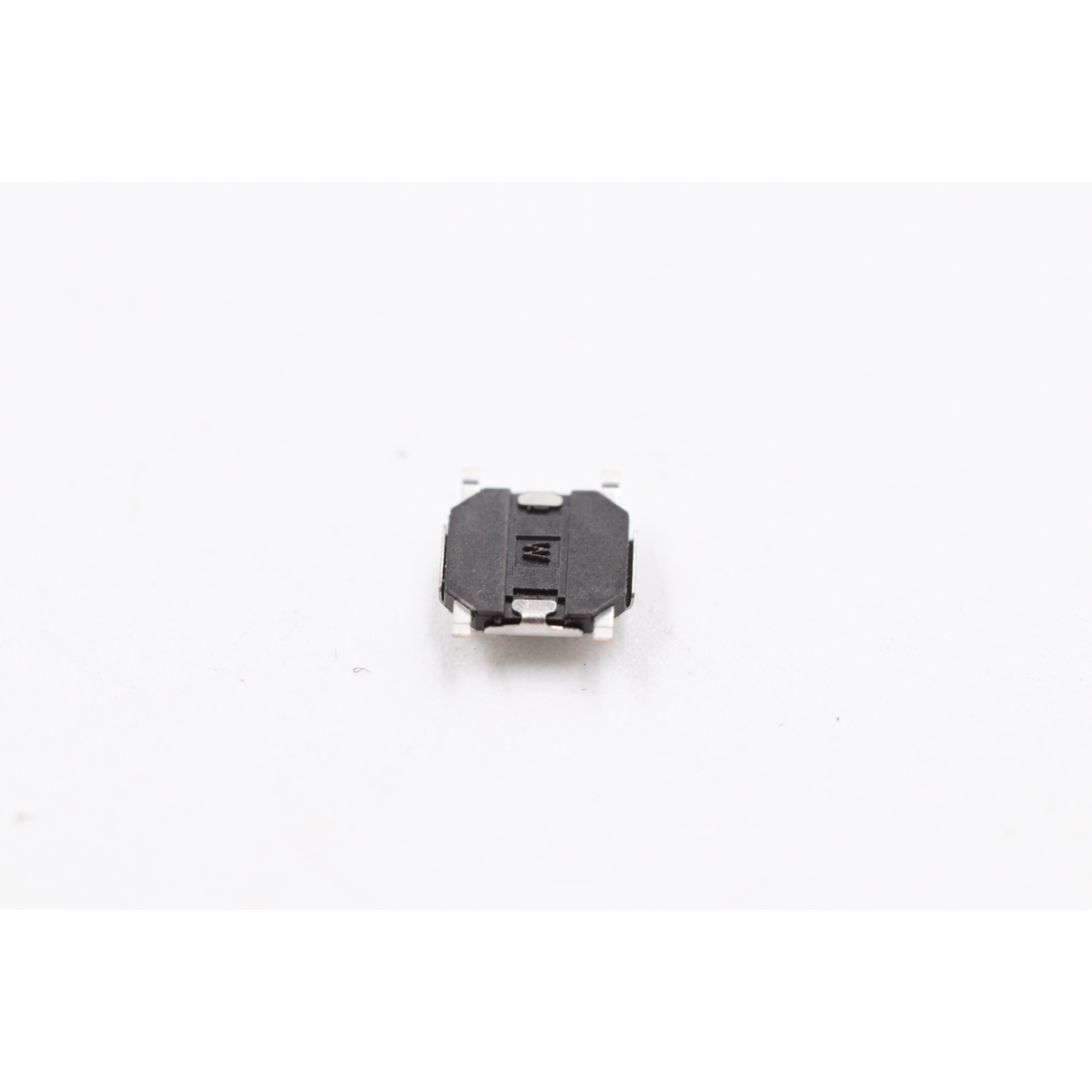

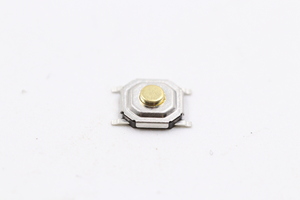

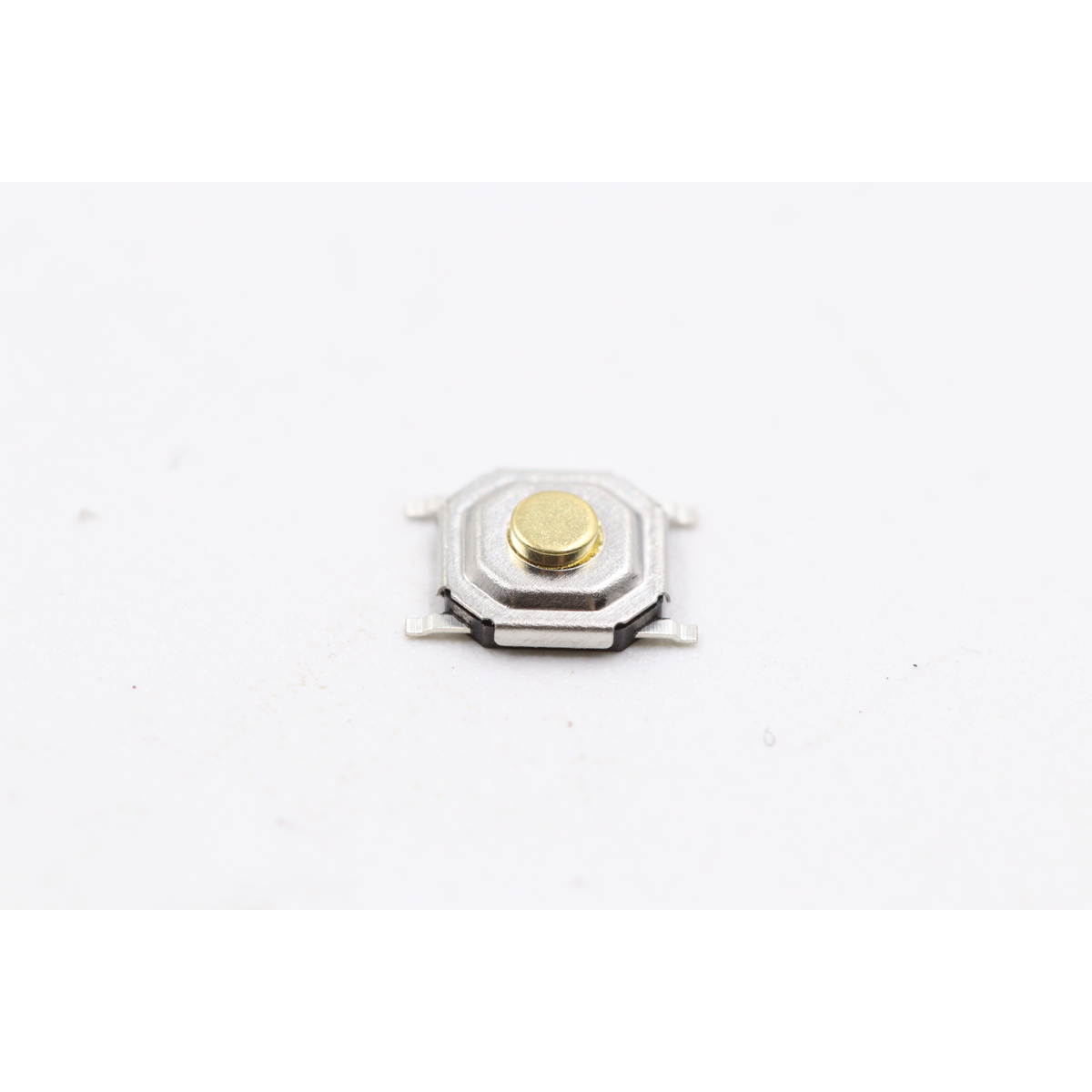

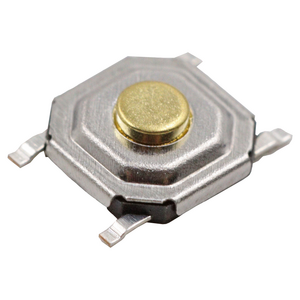

BUTTON_01
Button_01
Features and Benefits
- Ruggedised package
- Compact size
- 0.8 mm and 1.5 mm actuator heights
- IP40
- High number of cycles
Applications
- Remote controls
- Instrumentation
- Consumer products
| Attribute | Value |
|---|---|
| Contact Configuration | Gull Wing |
| Switch Operation | Momentary |
| Actuator Length | 3 mm ø |
| Actuator Colour | Gold |
| Actuator Type | Button |
| Length | 5.2mm |
| Width | 5.2mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 20 mA |
| IP Rating | IP40 |
| Operating Force | 260 gf |
| Voltage Rating | 15V dc |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +70°C |
| Contact Material | Silver Plated |
(BUTTON_01)
