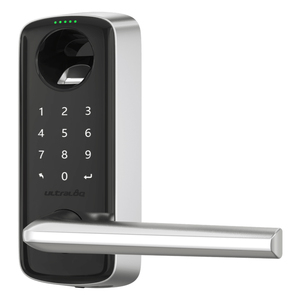

Ultraloq Lever is the most secure, and the most versatile smart lock handle with keyless & phoneless entry ever created. The Bridge upgrade allows you to control the access to your door while you're away from your home and monitor all activity remotely.

Access your Ultraloq features anywhere via smartphone with the Bridge Wifi Adapter (purchased seperately).

4-in-1 Keyless Entry Smart Lock

• Smartphone app
• Fingerprint
• Code
• Mechanical Key

Fingerprint Identification

• 2nd Gen Fingerprint Sensor
• Instant recognition under 0.3 seconds

Add random digits to protect your passcode from prying eyes.

Auto Lock
Set a time for the Lever to automatically lock after the door is closed.

Features

• Share temporary accss and monitor from anywhere in the world. (Requires Ultraloq Bridge)
• Compatible with Apple Watch. Open without carrying your iPhone

Mechanical Key
Backup mechanical key for emergency override.

Micro-USB For Emergency Power
Use an external battery to activate your lock even when the batteries are dead.

Dual Data Encryption
Two-Layer protection using secure 128-bit AES and a Dynamic Key that will keep you and your data safe.

Included:

• Exterior Assembly
• Interior Mounting Plate
• Interior Assembly
• Screwdriver
• Strike & Latch
• Screws
• Reset Needle
• Backup Keys
• User Guide
• Drilling Template
• AA Batteries

Specifications

Connectivity	Bluetooth, WiFi (Ultraloq Bridge is required)
Identification Mode	Fingerprint, Code and Bluetooth
Fingerprint Sensor	2nd Generation fingerprint technology
Fingerprint Capacity	120
Identification Time	Instant recognition under 0.3 seconds
Code	User defined 4-8 digit
Code Capacity	60
User Capacity	60
Keypad Backlight	Yes
Temporary Code or Ekey	Yes
Compatible Smartphone	iOS and Android
Remote Access	Yes (Ultraloq Bridge is required)
Mechanical Key Override	Yes
Micro-USB Backup Power Interface	Yes
Working Voltage	4.5 V (3 X Alkaline AA Batteries)
Working Temperature	External Assembly: -20 °C ~ 65 °C Internal Assembly: -10 °C ~ 55 °C
Battery Life	Up to 1 year (8,000 times access)
LED Indicator Color	Red, Green and Blue
Compatible Smart Home Eco-system	Alexa, Google Assistant and IFTTT (Ultraloq Bridge is required)
Hardware Type	Lever
Door Prep	53 mm diameter face hole & 25 mm diameter latch hole
Door Thickness	33 - 50 mm
Backset	Adjustable to 50-9.5mm or 50-19mm
Door Handing	Reversible
Case Material	Premium Zinc Alloy
Finish	Combination of black and silver
Dimensions	Exterior Assembly: 162 x 67 x 76 mm Interior Assembly: 162 x 67 x 73 mm
Weight	3kg
